Fluorocarbon rubber vs. ethylene propylene rubber for gaskets - What is The Difference?

Fluorocarbon rubber offers superior chemical resistance and high-temperature stability compared to ethylene propylene rubber, making it ideal for gaskets in aggressive environments. Ethylene propylene rubber provides excellent ozone and weather resistance with better flexibility at low temperatures but has lower resistance to oils and fuels than fluorocarbon rubber.

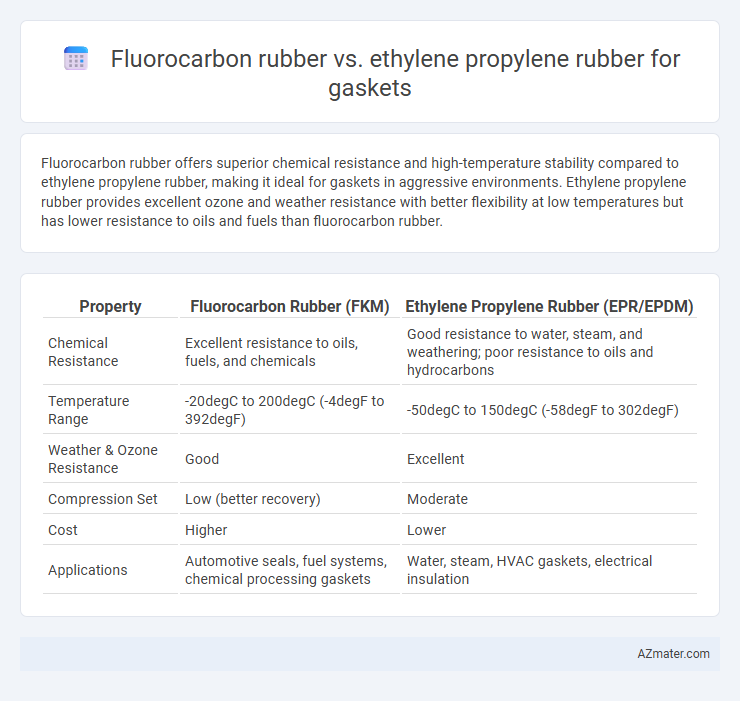

Table of Comparison

Introduction to Fluorocarbon Rubber and Ethylene Propylene Rubber

Fluorocarbon rubber (FKM) is a high-performance elastomer known for its excellent chemical resistance, heat stability up to 200-250degC, and superior durability in aggressive environments, making it ideal for gasket applications in automotive, aerospace, and chemical industries. Ethylene propylene rubber (EPR or EPDM) offers outstanding resistance to weathering, ozone, and steam, with effective performance in temperatures ranging from -50degC to 150degC, often favored for water, steam, and refrigeration gaskets. Both materials excel under different conditions, with FKM suited for harsh chemical exposure and high heat, while EPDM provides cost-effective sealing in outdoor and low-temperature environments.

Chemical Structure and Composition Comparison

Fluorocarbon rubber (FKM) features a polymer chain composed of vinylidene fluoride and hexafluoropropylene units, which provide exceptional resistance to heat, chemicals, and oil due to strong carbon-fluorine bonds. Ethylene propylene rubber (EPDM) is a terpolymer consisting of ethylene, propylene, and a diene monomer, offering excellent resistance to weathering, ozone, and water but limited resistance to oils and hydrocarbons. The fluorinated backbone of FKM delivers superior chemical inertness compared to the saturated, non-fluorinated hydrocarbon structure of EPDM, making FKM the preferred choice for gaskets exposed to aggressive chemicals and high temperatures.

Temperature Resistance: FKM vs EPDM

Fluorocarbon rubber (FKM) offers exceptional temperature resistance, typically withstanding continuous exposure from -26degC up to 204degC and short-term peaks beyond 230degC, making it ideal for high-temperature gasket applications. Ethylene propylene diene monomer (EPDM) rubber, on the other hand, performs well in moderate temperature ranges, generally tolerating from -40degC to 130degC but degrades quickly above this limit. For gaskets requiring superior heat stability and chemical resistance under extreme temperatures, FKM is the preferred choice over EPDM.

Chemical Resistance and Fluid Compatibility

Fluorocarbon rubber (FKM) exhibits superior chemical resistance to a wide range of hydrocarbons, oils, acids, and solvents, making it ideal for gaskets exposed to aggressive fluids and high temperatures. Ethylene propylene rubber (EPDM) offers excellent resistance to polar fluids like water, steam, and many chemicals but is less resistant to petroleum-based fluids and oils. For gasket applications requiring broad chemical compatibility with fuels, oils, and aggressive chemicals, fluorocarbon rubber provides enhanced durability, whereas EPDM suits environments with strong oxidizers and weathering exposure.

Mechanical Properties and Durability

Fluorocarbon rubber (FKM) exhibits superior chemical resistance and high-temperature stability, maintaining mechanical integrity in extreme environments up to 250degC, making it ideal for gaskets subjected to harsh chemicals and heat. Ethylene propylene rubber (EPDM) offers excellent resistance to weathering, ozone, and aging, with good flexibility and tensile strength but lower temperature resistance, typically up to 150degC. In terms of durability, FKM gaskets outperform EPDM in oil, fuel, and solvent exposure, while EPDM excels in sealing applications requiring outstanding resistance to environmental degradation.

Weather, Ozone, and UV Resistance

Fluorocarbon rubber (FKM) exhibits superior resistance to weathering, ozone, and UV exposure compared to ethylene propylene rubber (EPR), making it ideal for gaskets in harsh outdoor environments. FKM maintains its mechanical properties and flexibility under prolonged UV radiation and ozone attack, while EPR offers good weather resistance but degrades faster under intense UV exposure. The enhanced chemical structure of fluorocarbon rubber ensures longer gasket life and reliable sealing performance in extreme weather and ozone-rich conditions.

Cost Analysis and Economic Considerations

Fluorocarbon rubber (FKM) typically incurs higher material and processing costs compared to ethylene propylene rubber (EPR) due to its superior chemical resistance and temperature tolerance, making it more suitable for high-performance gasket applications. EPR offers a more cost-effective solution with moderate chemical resistance and excellent weathering properties, ideal for less demanding environments where budget constraints are critical. Economic considerations often favor EPR in large-volume, low-stress applications, while FKM's premium pricing is justified by reduced maintenance costs and longer service life in harsh conditions.

Common Applications in Gasket Manufacturing

Fluorocarbon rubber (FKM) is widely used in gasket manufacturing for chemical processing, automotive fuel systems, and aerospace applications due to its exceptional resistance to high temperatures, hydrocarbons, and aggressive chemicals. Ethylene propylene rubber (EPDM) is commonly applied in gasket manufacturing for water systems, steam applications, and outdoor equipment, benefiting from its excellent resistance to weathering, ozone, and heat. Both materials serve critical roles in gasket sealing, with FKM preferred for harsh chemical environments and EPDM favored for water and steam sealing tasks.

Installation, Maintenance, and Lifespan

Fluorocarbon rubber gaskets offer superior chemical resistance and high-temperature tolerance, simplifying installation in demanding environments and reducing the need for frequent maintenance. Ethylene propylene rubber gaskets provide excellent weathering and ozone resistance, making them suitable for outdoor applications but may require more vigilant inspection to prevent degradation over time. Fluorocarbon rubber typically boasts a longer lifespan in harsh chemical or heat-exposed conditions, whereas ethylene propylene rubber excels in moderate environments with reliable durability.

Choosing the Right Material for Your Gasket Needs

Fluorocarbon rubber (FKM) offers exceptional chemical resistance, high-temperature stability up to 200degC, and superior durability, making it ideal for aggressive environments and automotive or aerospace gasket applications. Ethylene propylene rubber (EPDM) provides excellent weather, ozone, and water resistance with temperatures tolerating up to 150degC but lacks compatibility with hydrocarbons and oils, limiting its use primarily to water, steam, and alkali seals. Selecting the right gasket material depends on the operating environment, temperature range, and chemical exposure to ensure long-lasting performance and reliability.
