Conductive polymer vs. polyimide for flexible circuits - What is The Difference?

Conductive polymers offer superior electrical conductivity and flexibility for flexible circuits, while polyimide provides excellent thermal stability and mechanical strength. Choosing between them depends on the application's priority for electrical performance versus durability under harsh conditions.

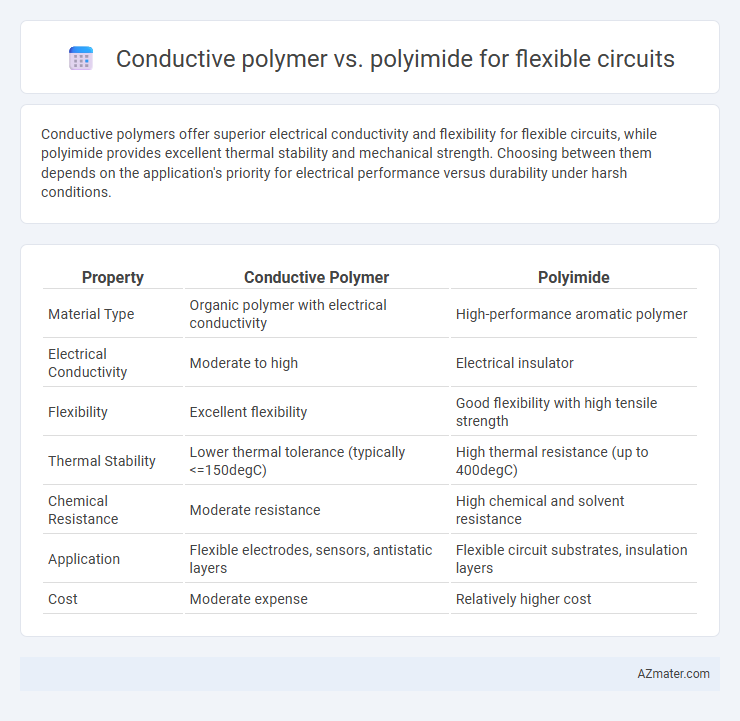

Table of Comparison

Overview of Flexible Circuit Materials

Conductive polymers, such as PEDOT:PSS, offer excellent electrical conductivity and mechanical flexibility, making them ideal for lightweight and stretchable flexible circuits. Polyimide, a high-performance polymer substrate, provides superior thermal stability, chemical resistance, and mechanical strength critical for demanding flexible electronic applications. The combination of conductive polymers with polyimide substrates enhances flexibility and durability in flexible circuit design, enabling advancements in wearable electronics and foldable devices.

Introduction to Conductive Polymers

Conductive polymers are organic materials that combine the electrical properties of metals with the mechanical flexibility of plastics, making them ideal for flexible circuits. Their molecular structure allows for tunable conductivity through doping processes, offering advantages over traditional materials like polyimide, which primarily serves as an insulating substrate. These polymers enhance circuit performance by enabling lightweight, bendable designs without compromising electrical functionality.

Properties of Polyimide Films

Polyimide films exhibit exceptional thermal stability, withstanding temperatures up to 400degC, making them ideal for flexible circuits requiring high heat resistance. Their excellent dielectric properties and mechanical flexibility ensure reliable insulation and durability in bending and twisting applications. Polyimide's chemical resistance and low moisture absorption further enhance circuit longevity in harsh environments compared to conductive polymers.

Electrical Performance Comparison

Conductive polymers exhibit lower electrical conductivity compared to polyimide, which serves primarily as an insulating substrate rather than a conductor in flexible circuits. Polyimide's high dielectric strength and thermal stability enable consistent electrical insulation and signal integrity under mechanical stress and high temperatures. Conductive polymers, while offering moderate conductivity and flexibility, often face challenges with long-term electrical performance and environmental stability when integrated into flexible circuit applications.

Mechanical Flexibility and Durability

Conductive polymers offer exceptional mechanical flexibility due to their intrinsic elasticity and ability to withstand repeated bending without cracking, making them ideal for dynamic flexible circuit applications. Polyimides exhibit excellent durability and thermal stability, maintaining mechanical integrity under high stress and harsh environmental conditions, which is crucial for long-term flexible circuit performance. Comparing both materials, conductive polymers excel in flexibility for wearable electronics, while polyimide provides superior durability for industrial-grade flexible circuits.

Thermal Stability and Resistance

Conductive polymers exhibit moderate thermal stability typically up to 150degC, making them suitable for low to mid-range temperature flexible circuit applications, but their electrical resistance tends to be higher and less consistent compared to polyimide substrates. Polyimide offers superior thermal stability withstanding continuous exposure up to 260degC, ensuring dimensional stability and low thermal expansion, which maintains circuit integrity under high-temperature conditions. The intrinsic low electrical resistance of conductive polymers is often offset by their lower thermal endurance, while polyimide combines excellent thermal resistance with stable dielectric properties, making it the preferred material for durable, high-performance flexible circuits.

Processability and Manufacturing Considerations

Conductive polymers exhibit excellent solution processability, allowing for low-temperature deposition methods such as spin coating and inkjet printing, which are compatible with flexible substrates in circuit fabrication. Polyimide offers superior thermal stability and mechanical strength but requires high-temperature curing processes that can limit substrate compatibility and increase manufacturing complexity. Manufacturing flexibility is enhanced with conductive polymers due to their easy patterning and integration in additive processes, while polyimide's robustness supports multilayer circuit architectures with improved dielectric properties.

Cost Analysis: Conductive Polymer vs Polyimide

Conductive polymers offer lower raw material costs and simpler processing compared to polyimide, making them a cost-effective option for flexible circuits in low- to medium-volume production. Polyimide, despite higher material and processing expenses, provides superior thermal stability and mechanical durability, which can reduce long-term maintenance costs in high-performance applications. When evaluating total cost of ownership, conductive polymers favor budget-sensitive projects, while polyimide suits designs requiring robust reliability and extended lifecycle performance.

Application Suitability in Flexible Electronics

Conductive polymers offer excellent flexibility and lightweight properties ideal for wearable sensors and flexible displays, whereas polyimide provides superior thermal stability and mechanical strength essential for high-performance flexible circuit substrates in aerospace and medical devices. Conductive polymers enable efficient electrical conductivity with stretchability, crucial for bendable and foldable electronic applications. Polyimide's chemical resistance and dielectric properties ensure reliable insulation and durability in harsh environments, making it suitable for long-term flexible electronics use.

Future Trends and Innovations

Conductive polymers are gaining traction in flexible circuits due to their enhanced electrical conductivity, mechanical flexibility, and environmental stability compared to traditional polyimide substrates. Innovations in nanocomposites and multi-layered conductive polymer films are driving future trends towards ultra-thin, high-performance flexible electronics with improved thermal management and stretchability. Emerging applications in wearable devices, soft robotics, and bio-integrated sensors highlight the shift towards conductive polymers as a key material for next-generation flexible circuit technologies.
