azmater.com Fused quartz offers excellent thermal stability and low thermal expansion, making it ideal for infrared optics in high-temperature environments. Chalcogenide glass provides superior infrared transmission beyond 10 microns and high refractive index, enhancing performance in mid- to far-infrared applications.
Table of Comparison
| Property | Fused Quartz | Chalcogenide Glass |
|---|---|---|
| Infrared Transmission Range | 0.2 - 3.5 um | 2 - 12 um |
| Refractive Index | ~1.46 at 1.0 um | 2.0 - 3.0 (varies by composition) |
| Thermal Expansion Coefficient | ~5.5 x 10-7 /degC | ~10 - 15 x 10-6 /degC |
| Thermal Conductivity | 1.4 W/m*K | ~0.2 W/m*K |
| Mechanical Strength | High hardness, durable | Lower hardness, more fragile |
| Optical Applications | UV to near-IR lenses, windows | Mid-IR lenses, fibers, sensors |
| Cost | Moderate | Higher |
| Chemical Stability | Excellent, resistant to most chemicals | Moderate, sensitive to moisture |
Introduction to Infrared Optics Materials
Fused quartz and chalcogenide glass are key materials in infrared optics due to their distinct transmission properties and thermal stability. Fused quartz offers excellent transparency in the near-infrared range up to about 3.5 microns, high damage threshold, and mechanical durability, making it suitable for high-power laser applications. Chalcogenide glasses extend infrared transmission beyond 10 microns with high refractive indices and excellent infrared transmittance but exhibit lower thermal resistance and mechanical strength compared to fused quartz, which limits their use to less demanding environments.
What is Fused Quartz?
Fused quartz is a high-purity, non-crystalline silicon dioxide (SiO2) glass known for its exceptional thermal stability, low thermal expansion, and high transparency in the ultraviolet to near-infrared spectral range. It is widely used in infrared optics due to its excellent resistance to thermal shock and ability to maintain optical clarity under high temperatures. Compared to chalcogenide glass, fused quartz offers greater durability and broader spectral transmission, making it suitable for demanding infrared applications requiring long-term performance and robustness.
What is Chalcogenide Glass?
Chalcogenide glass is a type of amorphous material composed primarily of sulfur, selenium, or tellurium combined with elements like arsenic or germanium, known for its excellent infrared transparency and high refractive index. It contrasts with fused quartz, which is a form of pure silica with limited infrared transmission beyond 3.5 microns, whereas chalcogenide glass extends infrared transmission into the mid-infrared range (up to 12 microns or more). This property makes chalcogenide glass highly suitable for infrared optics applications such as thermal imaging, spectroscopy, and IR laser systems where broader spectral transparency and flexibility in refractive indices are critical.
Infrared Transmission Properties
Fused quartz exhibits excellent infrared transmission in the near-infrared range up to about 3.5 microns, making it suitable for applications requiring high transparency and low absorption in this spectrum. Chalcogenide glass outperforms fused quartz by transmitting mid- to far-infrared wavelengths, typically from 2 microns to beyond 12 microns, due to its low phonon energy and broad infrared transparency. These properties make chalcogenide glasses ideal for advanced infrared optics in thermal imaging, spectroscopy, and telecommunications, where extended IR transmission is critical.
Optical Performance Comparison
Fused quartz exhibits high transparency from ultraviolet to near-infrared wavelengths, with minimal optical absorption and low thermal expansion, making it ideal for applications requiring stability and durability in infrared optics up to about 3.6 microns. Chalcogenide glass offers superior transmission in the mid- to far-infrared range, typically extending from 2 to 12 microns or beyond, with higher refractive indices enabling enhanced optical performance in specialized infrared imaging and sensing systems. Optical performance comparison reveals fused quartz excels in mechanical robustness and low dispersion, while chalcogenide glasses provide broader infrared transmission and tailored optical properties crucial for mid-infrared spectroscopy and thermal imaging.
Thermal and Mechanical Stability
Fused quartz offers superior thermal stability with a high melting point around 1,650degC and low thermal expansion coefficient (~0.5 x 10^-6 /degC), making it ideal for infrared optics requiring dimensional stability under temperature fluctuations. In contrast, chalcogenide glass exhibits lower thermal resistance and higher thermal expansion, which can lead to deformation and reduced performance at elevated temperatures. Mechanically, fused quartz provides greater hardness and resistance to scratching, while chalcogenide glass is more prone to mechanical stress and fracture, limiting its durability in demanding infrared applications.
Resistance to Environmental Factors
Fused quartz offers exceptional resistance to environmental factors such as high temperatures, thermal shock, and chemical corrosion, making it highly durable for infrared optics in harsh environments. Chalcogenide glass, while providing superior infrared transmission in the mid- to far-infrared range, is more susceptible to moisture absorption and environmental degradation, requiring protective coatings or controlled environments. The superior environmental stability of fused quartz generally makes it preferable for applications demanding long-term reliability and robustness.
Cost and Fabrication Considerations
Fused quartz offers lower cost and simpler fabrication processes compared to chalcogenide glass, making it a more economical choice for infrared optics in applications where spectral range extends up to about 3.5 microns. Chalcogenide glass, though more expensive and requiring complex fabrication techniques due to its sensitivity and fragility, provides superior transmission in the mid- to far-infrared range (approximately 3 to 12 microns). The trade-off between cost efficiency and infrared performance drives material selection, with fused quartz preferred for budget-sensitive projects and chalcogenide glass favored for advanced infrared optical applications requiring broader wavelength coverage.
Application Scenarios in IR Optics
Fused quartz excels in infrared optics applications requiring high thermal stability and durability, making it ideal for UV to near-infrared laser systems, spectroscopy, and lithography. Chalcogenide glass offers superior transmission in the mid- to far-infrared range, making it suitable for thermal imaging, chemical sensing, and fiber optic communications in the infrared spectrum. The choice between fused quartz and chalcogenide glass depends on operational wavelength, environmental resistance, and specific infrared optical performance needs.
Choosing the Right Material for Infrared Systems
Fused quartz offers excellent transparency up to 2.5 microns wavelength, making it ideal for near-infrared optics requiring high thermal stability and low thermal expansion. Chalcogenide glass extends transparency significantly into the mid-infrared range (2 to 12 microns), providing superior performance in applications demanding broad infrared transmission and infrared sensing capabilities. Selecting the right material depends on the required infrared wavelength range, transmission properties, thermal stability, and mechanical durability for the specific infrared system design.

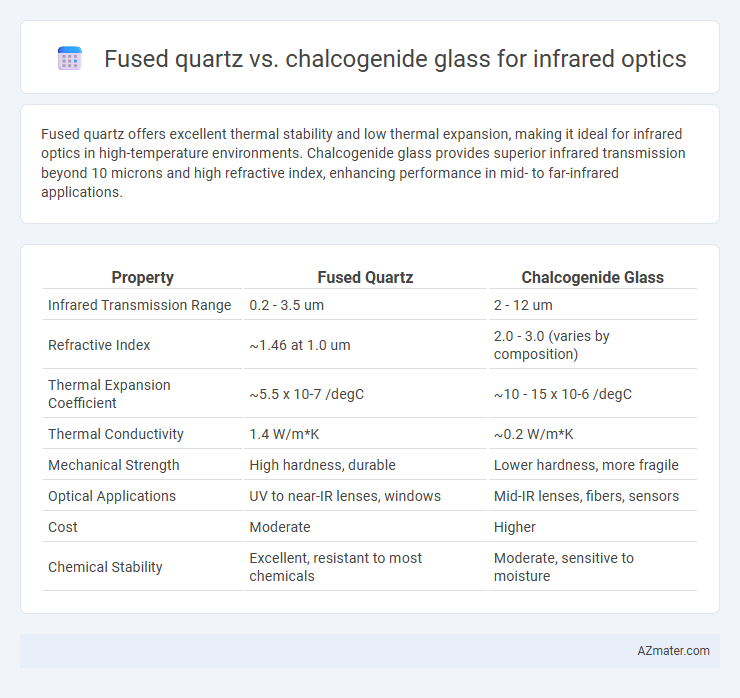

Infographic: Fused quartz vs Chalcogenide glass for Infrared optics
