Electrochromic Glass vs. Laminated Glass for Facade - What is The Difference?

Electrochromic glass offers dynamic light and heat control by electrically adjusting tint, improving energy efficiency in facades, while laminated glass provides enhanced safety and structural integrity through bonded layers. Electrochromic glass reduces HVAC loads and glare, whereas laminated glass excels in impact resistance and acoustic insulation.

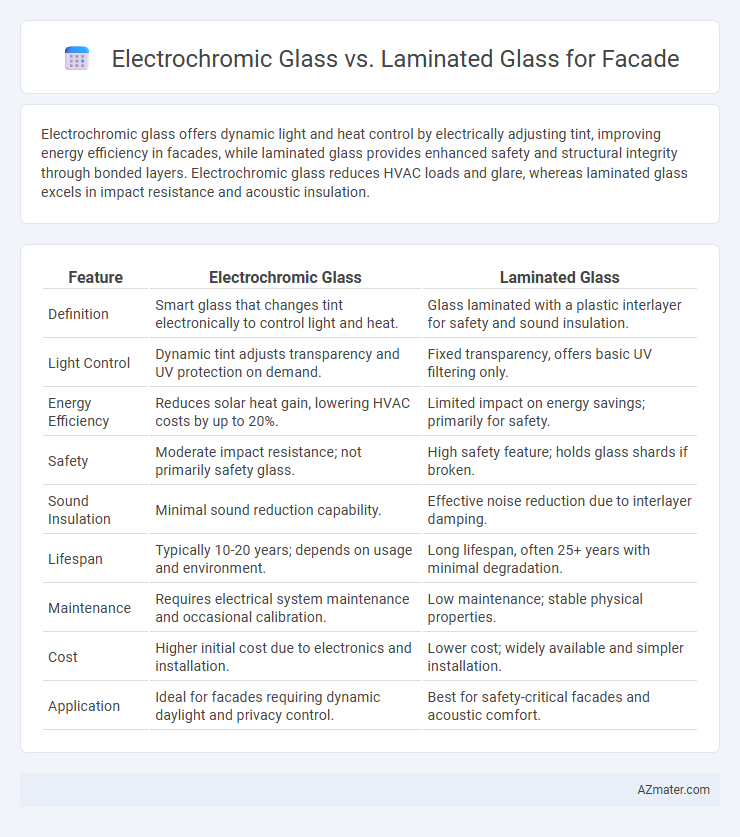

Table of Comparison

Introduction to Electrochromic and Laminated Glass

Electrochromic glass is a smart glazing technology that changes its tint in response to electrical voltage, enhancing energy efficiency and occupant comfort by controlling solar heat and glare. Laminated glass consists of two or more glass layers bonded with an interlayer, providing safety, sound insulation, and UV protection for building facades. Both materials play distinct roles in modern architectural design, with electrochromic glass focusing on dynamic light modulation and laminated glass prioritizing structural integrity and security.

How Electrochromic Glass Works

Electrochromic glass operates by applying a low-voltage electric current that triggers a reversible chemical reaction within its multiple layers, causing the glass to change its tint and control the amount of light and heat passing through. This dynamic adjustment significantly enhances energy efficiency by reducing glare and solar heat gain, unlike laminated glass which primarily acts as a static safety and sound barrier with limited optical control. The smart functionality of electrochromic glass makes it ideal for building facades aiming for adaptive daylight management and improved occupant comfort.

Understanding Laminated Glass Technology

Laminated glass technology involves bonding two or more glass layers with an interlayer, typically made of polyvinyl butyral (PVB) or ethylene-vinyl acetate (EVA), enhancing safety, sound insulation, and UV protection for facades. This technology prevents glass shards from scattering upon impact, providing structural integrity and improved security compared to standard glass. In facade applications, laminated glass offers durability and energy efficiency, although it lacks the dynamic light modulation capabilities found in electrochromic glass.

Key Differences Between Electrochromic and Laminated Glass

Electrochromic glass features smart technology that adjusts tint in response to voltage, providing dynamic control over solar heat and glare, whereas laminated glass consists of multiple layers bonded with an interlayer, offering enhanced safety and sound insulation but fixed transparency. Electrochromic glass contributes significantly to energy efficiency by reducing cooling loads in facades, while laminated glass primarily improves structural integrity and impact resistance. The key differences lie in functionality--electrochromic glass's active light modulation versus laminated glass's passive protection and durability.

Energy Efficiency Comparison

Electrochromic glass offers dynamic solar control by adjusting tint levels in response to sunlight, significantly reducing cooling loads and enhancing energy efficiency compared to laminated glass, which provides static solar shading and limited thermal insulation. While laminated glass improves building safety and sound insulation, it lacks the adaptive properties of electrochromic glass to minimize HVAC energy consumption throughout the day. Studies indicate buildings using electrochromic facades can achieve up to 20-30% greater energy savings in cooling and lighting efficiency compared to those with laminated glass facades.

Aesthetic and Design Flexibility

Electrochromic glass offers dynamic aesthetic control by enabling real-time tint adjustment, allowing architects to create sleek, modern facades with variable transparency and color intensity. Laminated glass provides design flexibility through its ability to incorporate decorative interlayers, colors, and textures, ensuring safety without compromising on artistic expression. Combining electrochromic technology with laminated glass can further enhance facade design by integrating energy efficiency with customizable visual appeal.

Safety and Security Features

Electrochromic glass enhances facade safety by dynamically controlling solar heat and glare, reducing the risk of thermal stress and improving occupant comfort without compromising structural integrity. Laminated glass excels in security by holding shattered fragments together upon impact, providing superior resistance against forced entry and ballistic threats. Both materials contribute uniquely to facade protection, with electrochromic glass offering adaptive shading and laminated glass delivering robust physical safety.

Durability and Maintenance Requirements

Electrochromic glass offers advanced durability with its multi-layered structure designed to withstand environmental stressors while providing adjustable solar control, reducing the need for frequent maintenance. Laminated glass, composed of two or more glass layers bonded with an interlayer, ensures high impact resistance and safety but may require occasional inspection for edge seal integrity to prevent delamination. Both types provide robust solutions for facades, yet electrochromic glass demands more specialized upkeep due to its electronic components, whereas laminated glass generally involves lower maintenance costs focused on structural inspection.

Cost Analysis and ROI

Electrochromic glass commands higher upfront costs, typically ranging from $50 to $100 per square foot, driven by advanced technology and installation complexity, whereas laminated glass averages $20 to $40 per square foot. Despite the initial investment, electrochromic glass offers substantial energy savings by dynamically controlling solar heat gain, potentially reducing cooling costs by up to 20%, enhancing ROI within 5 to 7 years depending on climate and building use. Laminated glass primarily provides safety and acoustic benefits with minimal energy savings, resulting in a longer payback period and lower overall ROI when used solely for facade applications.

Best Applications for Facade Use

Electrochromic glass offers dynamic solar control by adjusting tint levels, making it ideal for facades in office buildings and commercial spaces aiming to optimize natural light and reduce energy consumption. Laminated glass provides enhanced safety and sound insulation, making it suitable for facades in schools, hospitals, and high-traffic urban environments where durability and security are priorities. Both materials support aesthetic design flexibility but electrochromic glass excels in energy-efficient facades, while laminated glass focuses on structural safety and acoustic performance.
