Alumina vs. Silicon Nitride for Ball Bearings - What is The Difference?

Alumina ball bearings offer superior corrosion resistance and cost-effectiveness, while silicon nitride ball bearings provide higher fracture toughness, lower density, and improved thermal stability for high-speed or high-temperature applications. Silicon nitride's enhanced fatigue life and reduced weight make it ideal for aerospace and precision engineering compared to alumina.

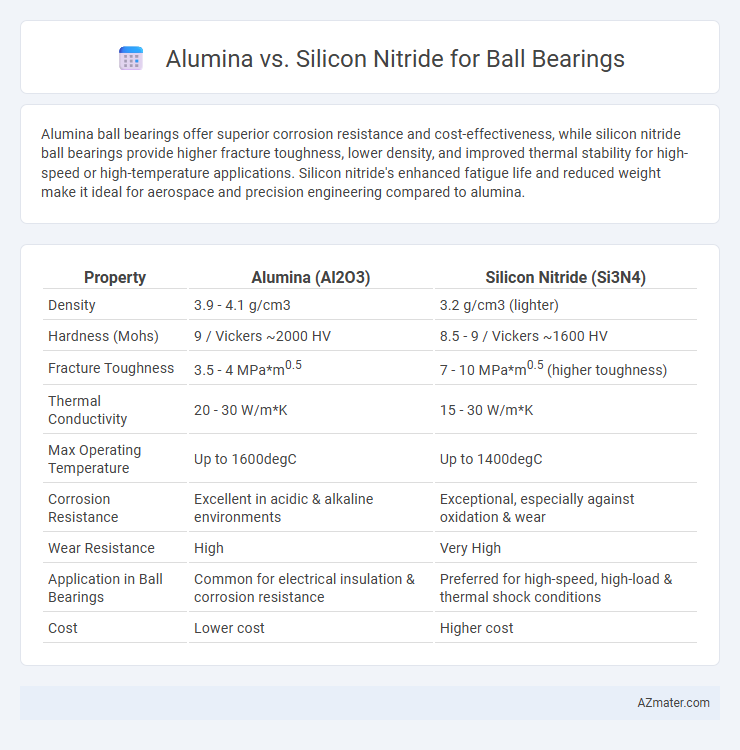

Table of Comparison

Introduction to Advanced Ceramic Ball Bearings

Advanced ceramic ball bearings utilize materials like alumina and silicon nitride to enhance performance in demanding applications. Alumina offers excellent hardness, corrosion resistance, and affordability, making it suitable for electrical insulation and low-speed operations. Silicon nitride provides superior strength, thermal stability, and lower density, resulting in higher speed capability and longer durability in high-stress environments.

Overview of Alumina and Silicon Nitride Materials

Alumina ball bearings are made from aluminum oxide (Al2O3), known for its high hardness, excellent wear resistance, and electrical insulation properties, making it suitable for applications requiring corrosion resistance and low friction. Silicon nitride (Si3N4) ball bearings offer superior toughness, high fatigue strength, and thermal stability, enabling better performance under high-speed and high-temperature conditions. Both materials provide significant advantages over steel bearings but differ in density, with silicon nitride being lighter, contributing to reduced centrifugal forces and improved efficiency in precision machinery.

Material Properties Comparison: Alumina vs Silicon Nitride

Alumina exhibits high hardness and excellent wear resistance, making it suitable for ball bearings requiring durability under moderate thermal conditions. Silicon nitride offers superior fracture toughness, lower density, and better thermal shock resistance, enhancing performance in high-speed and high-temperature applications. Both materials provide corrosion resistance, but silicon nitride's enhanced mechanical properties yield longer bearing life in demanding environments.

Mechanical Strength and Durability

Alumina ball bearings exhibit high hardness and wear resistance with compressive strength typically around 3000 MPa, making them suitable for moderate mechanical stress applications. Silicon nitride bearings surpass alumina in mechanical strength, boasting fracture toughness of approximately 6-8 MPa*m^0.5 and higher flexural strength near 1000 MPa, enhancing their durability under high impact and thermal shock conditions. The superior fatigue life and resistance to crack propagation of silicon nitride make it a preferred choice in high-speed, high-stress environments over alumina ceramics.

Thermal Stability and Temperature Resistance

Alumina ball bearings offer excellent thermal stability with a maximum operating temperature around 1000degC, making them suitable for high-temperature applications where heat resistance is critical. Silicon nitride ball bearings exceed alumina in thermal shock resistance and can operate continuously at temperatures up to approximately 1200degC while maintaining mechanical strength. The superior fracture toughness and lower thermal expansion coefficient of silicon nitride enhance its performance in rapidly changing temperature environments compared to alumina.

Wear Resistance and Lifespan

Alumina ball bearings offer excellent wear resistance due to their high hardness and chemical stability, making them suitable for abrasive environments and extending operational lifespan. Silicon nitride bearings provide superior wear resistance combined with lower density, resulting in reduced friction and higher fatigue strength, which significantly enhances bearing lifespan under high-speed and high-load conditions. Comparing both, silicon nitride typically outperforms alumina in lifespan and durability, especially in demanding applications requiring thermal shock resistance and minimal wear.

Performance in High-Speed Applications

Alumina ball bearings offer excellent wear resistance and thermal stability but tend to have higher density and lower maximum speed limits compared to silicon nitride bearings. Silicon nitride ball bearings excel in high-speed applications due to their lower density, superior fatigue strength, and reduced centrifugal forces, enabling faster rotational speeds and improved durability. The enhanced performance of silicon nitride in high-speed environments results in lower friction, reduced heat generation, and extended bearing life.

Cost Analysis and Economic Considerations

Alumina ball bearings offer a lower initial cost compared to silicon nitride, making them more attractive for budget-sensitive applications. Silicon nitride's higher price is justified by its superior performance in high-speed, high-temperature environments, which can reduce maintenance and downtime expenses. Economic considerations should weigh the total cost of ownership, including lifespan and reliability, rather than upfront purchase price alone.

Typical Applications in Industry

Alumina ball bearings are widely used in chemical processing, electrical insulation, and high-temperature environments due to their excellent corrosion resistance and thermal stability. Silicon nitride bearings are favored in aerospace, automotive turbochargers, and high-speed machinery for their superior toughness, lower density, and resistance to wear and thermal shock. Both materials provide enhanced performance over steel but are selected based on specific operating conditions such as load, speed, and environmental exposure.

Conclusion: Choosing the Right Ceramic for Ball Bearings

Alumina ball bearings offer excellent wear resistance and cost-effectiveness, making them ideal for general industrial applications where moderate performance is sufficient. Silicon nitride bearings provide superior strength, higher thermal stability, and enhanced corrosion resistance, which benefits high-speed, high-temperature, and precision environments like aerospace and automotive industries. Selecting the appropriate ceramic depends on the specific operational demands, with alumina suited for budget-conscious, less demanding tasks and silicon nitride preferred for advanced, high-performance requirements.
