Spinel vs. Silicon Carbide for Optical Components - What is The Difference?

Spinel offers high optical transparency and excellent durability, making it ideal for robust optical components. Silicon carbide features superior thermal conductivity and hardness, enhancing performance in high-temperature and abrasive environments.

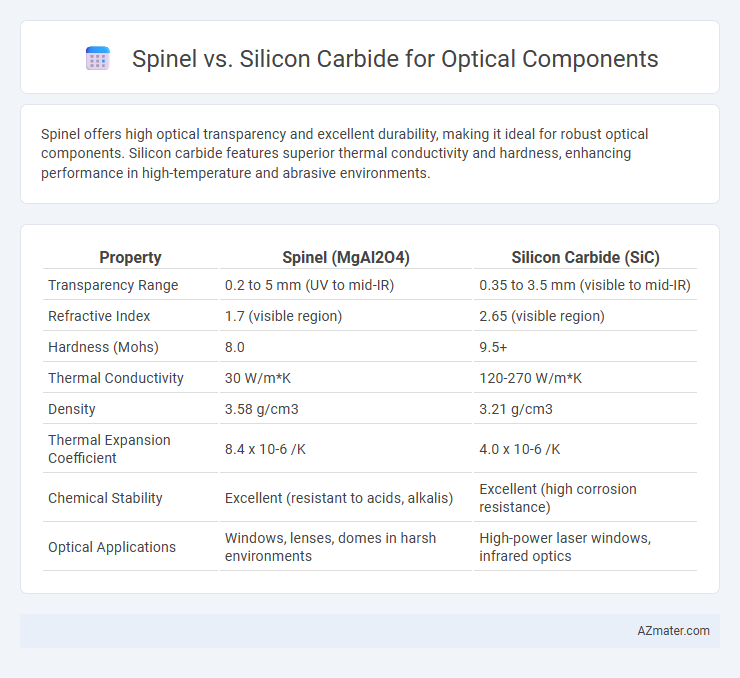

Table of Comparison

Introduction to Optical Materials: Spinel and Silicon Carbide

Spinel (MgAl2O4) and Silicon Carbide (SiC) are advanced optical materials known for their exceptional mechanical strength, thermal stability, and optical transparency across a broad spectral range. Spinel exhibits excellent transmission from ultraviolet to mid-infrared wavelengths (0.2 to 5 microns), making it suitable for high-performance windows and domes, while Silicon Carbide offers unmatched hardness and thermal conductivity with transparency primarily in the visible to near-infrared spectrum. Both materials are widely used in demanding environments such as aerospace and defense for optical components requiring durability and high optical clarity.

Crystal Structure and Material Properties

Spinel (MgAl2O4) features a cubic crystal structure with excellent isotropic optical properties, offering high transparency from ultraviolet to mid-infrared wavelengths and outstanding hardness (Mohs 8) paired with good thermal stability. Silicon carbide (SiC) exhibits a hexagonal crystal structure known for exceptional mechanical strength, high thermal conductivity, and extreme hardness (Mohs 9-9.5), making it ideal for high-stress optical components, especially in harsh environments. Both materials provide excellent optical clarity and durability, but SiC's superior thermal conductivity and hardness favor applications requiring extreme wear resistance and thermal management.

Transparency and Optical Transmission Ranges

Spinel exhibits a broad optical transmission range from 0.25 to 5 microns, making it ideal for visible to mid-infrared applications, while silicon carbide (SiC) offers strong transmission primarily in the visible to near-infrared spectrum, typically from 0.4 to 3.5 microns. Spinel's high transparency and low absorption across ultraviolet, visible, and infrared wavelengths enhance its performance in precision optics, contrasting with SiC's durability but comparatively limited transmission window. Both materials are prized for their hardness and thermal stability, yet spinel's superior optical clarity and extended transmission range provide advantages in advanced optical components requiring wide spectral coverage.

Mechanical Strength and Durability

Spinel exhibits exceptional mechanical strength with a hardness of approximately 8.0 on the Mohs scale, offering high resistance to abrasion and impact, making it ideal for rugged optical components. Silicon carbide surpasses Spinel in hardness, reaching about 9.0 on the Mohs scale, contributing to superior durability and resistance to mechanical wear under extreme conditions. Both materials provide excellent durability, but Silicon carbide's higher fracture toughness and thermal stability give it an edge for applications demanding long-term mechanical reliability.

Thermal Stability and Environmental Resistance

Spinel exhibits exceptional thermal stability with a melting point around 2135degC, making it ideal for high-temperature optical applications, while silicon carbide (SiC) offers superior thermal conductivity and maintains stability up to approximately 2700degC. Spinel provides excellent environmental resistance against moisture, corrosion, and chemical exposure, whereas silicon carbide stands out with greater hardness and resistance to abrasion and oxidation in harsh environments. Both materials offer strong performance, but silicon carbide is preferred in extreme thermal and oxidative conditions, while spinel is favored for optical clarity and chemical inertness.

Fabrication Techniques and Scalability

Spinel optical components are typically fabricated using sintering and hot-pressing techniques, enabling the production of complex shapes with high optical clarity, while silicon carbide (SiC) components are primarily produced via chemical vapor deposition (CVD) and reaction bonding, which offer superior mechanical strength and thermal stability. The scalability of spinel manufacturing is limited by the intricacies of powder processing and densification, whereas silicon carbide benefits from established industrial methods that support large-scale production for aerospace and defense applications. Both materials require precision machining post-fabrication, but silicon carbide's advanced wafer-scale growth methods provide enhanced scalability for high-volume optical component manufacturing.

Cost and Availability of Spinel vs Silicon Carbide

Spinel optical components generally offer a lower cost and wider availability compared to silicon carbide, making them a cost-effective choice for many applications. Spinel is produced using mature manufacturing techniques that allow for scalable production, whereas silicon carbide involves higher material and processing expenses due to its hardness and complex fabrication. Despite the higher price, silicon carbide remains preferred in specialized applications requiring superior thermal and mechanical properties.

Performance in Harsh Environments

Spinel offers superior chemical stability and high optical transmission in the visible to mid-infrared range, making it highly resistant to harsh environmental conditions such as high humidity and corrosive atmospheres. Silicon carbide excels in mechanical strength, thermal shock resistance, and hardness, providing exceptional durability under extreme temperature fluctuations and abrasive conditions. For optical components exposed to severe mechanical stress and thermal cycling, silicon carbide's robustness outperforms spinel, while spinel remains preferable where chemical inertness and optical clarity across a broad spectrum are critical.

Application Suitability: Aerospace, Defense, and Industrial Uses

Spinel offers superior optical clarity and broad-spectrum transparency from ultraviolet to mid-infrared wavelengths, making it ideal for aerospace and defense applications requiring durable, lightweight windows and domes with high resistance to impact and thermal shock. Silicon carbide provides exceptional hardness and thermal conductivity, enabling its use in high-performance optics and laser components in industrial environments where abrasion resistance and heat dissipation are critical. Both materials excel in harsh operational conditions, but Spinel is preferred for applications emphasizing optical clarity and transmission, while Silicon carbide is favored for mechanical robustness and thermal management.

Conclusion: Choosing the Right Material for Optical Components

Spinel offers superior transparency from the visible to mid-infrared range and excellent mechanical strength, making it ideal for applications requiring broad spectral performance and durability. Silicon carbide provides exceptional thermal conductivity and hardness, benefiting high-power laser systems and high-wear environments. Selecting between Spinel and Silicon carbide depends on specific optical requirements, balancing factors like wavelength range, thermal management, and mechanical robustness.
