azmater.com Barium titanate offers high dielectric constant and excellent temperature sensitivity, making it ideal for precise thermistor applications. Aluminum nitride provides superior thermal conductivity and electrical insulation, enhancing performance in high-power or high-temperature environments.
Table of Comparison
| Property | Barium Titanate (BaTiO3) | Aluminum Nitride (AlN) |
|---|---|---|
| Thermal Conductivity | 2-6 W/m*K (low to moderate) | 140-180 W/m*K (high) |
| Dielectric Constant | 1200-1500 (high) | 8.5-9 (low) |
| Temperature Coefficient of Resistance (TCR) | Negative TCR (NTC behavior) | Positive TCR (PTC behavior, varies) |
| Electrical Resistivity | 105 - 107 O*cm | 1014 O*cm (very high) |
| Operating Temperature Range | -55degC to 150degC | -40degC to 220degC |
| Mechanical Strength | Moderate | High |
| Applications in Thermistors | Common NTC thermistors, sensitive temperature measurement | PTC thermistors, high power dissipation, harsh environments |
Introduction to Thermistor Materials
Barium titanate and aluminum nitride are prominent materials used in thermistor applications due to their distinct electrical and thermal properties. Barium titanate, a ferroelectric ceramic, offers a high dielectric constant and strong temperature sensitivity, making it ideal for negative temperature coefficient (NTC) thermistors. Aluminum nitride provides excellent thermal conductivity and electrical insulation, suited for high-performance thermistors requiring rapid response and stability under varying thermal conditions.
Overview of Barium Titanate
Barium titanate (BaTiO3) is a ferroelectric ceramic known for its high dielectric constant and strong temperature-dependent resistivity, making it ideal for thermistor applications where precise temperature sensing is required. This material exhibits excellent electrical stability and sensitivity due to its perovskite crystal structure, which significantly impacts its thermistor performance. In comparison to aluminum nitride, barium titanate offers superior dielectric properties but generally lower thermal conductivity, influencing the choice based on specific thermal management needs.
Overview of Aluminum Nitride
Aluminum nitride (AlN) is a wide bandgap semiconductor notable for its high thermal conductivity, electrical insulation, and excellent thermal stability, making it an ideal material for thermistor applications requiring rapid heat dissipation and stable performance under high temperatures. Compared to barium titanate, which offers high dielectric constant and temperature-sensitive resistivity, aluminum nitride excels in environments demanding superior thermal management and mechanical strength. Its low thermal expansion coefficient and chemical inertness further enhance its reliability in precision temperature sensing devices.
Electrical Properties Comparison
Barium titanate exhibits high dielectric permittivity and strong temperature-dependent resistance, making it suitable for precise thermistor applications with excellent sensitivity. Aluminum nitride offers superior thermal conductivity and electrical insulation, providing faster heat dissipation and stability under high-temperature conditions. The electrical resistance of barium titanate thermistors varies significantly with temperature, while aluminum nitride-based devices maintain consistent resistivity, favoring different performance requirements in thermal sensing.
Thermal Conductivity Analysis
Barium titanate exhibits a relatively low thermal conductivity ranging from 2 to 6 W/m*K, making it less efficient for heat dissipation in thermistor applications. In contrast, aluminum nitride offers a superior thermal conductivity of approximately 140 to 180 W/m*K, which significantly enhances thermal management performance. This substantial difference positions aluminum nitride as a preferred material for thermistors requiring rapid heat transfer and improved thermal stability.
Stability and Reliability Factors
Barium titanate thermistors exhibit high sensitivity but are prone to aging effects that can compromise long-term stability and reliability under thermal cycling. Aluminum nitride thermistors offer superior thermal stability and excellent resistance to thermal shock, making them more reliable for high-temperature and harsh environment applications. The inherent chemical and mechanical robustness of Aluminum nitride enhances its performance consistency compared to the relatively less stable barium titanate in demanding conditions.
Cost and Manufacturing Considerations
Barium titanate thermistors generally offer lower material costs due to abundant raw materials, making them more economical for mass production compared to aluminum nitride thermistors. Aluminum nitride provides superior thermal conductivity and electrical insulation but requires more complex and costly manufacturing processes, including high-temperature sintering under controlled atmospheres. Cost-efficiency in large-scale production favors barium titanate, while high-performance applications may justify the premium investment in aluminum nitride thermistor fabrication.
Suitability for High-Temperature Applications
Barium titanate exhibits strong ferroelectric properties and a high dielectric constant, making it suitable for thermistors operating at moderate temperatures but limiting its performance above 150degC due to phase transitions. Aluminum nitride, with its excellent thermal conductivity and stability, maintains consistent electrical characteristics in thermistors at temperatures exceeding 500degC. This thermal resilience positions aluminum nitride as the preferred material for high-temperature thermistor applications, especially in harsh environments demanding reliability and precision.
Environmental Impact and Safety
Barium titanate thermistors pose environmental concerns due to the presence of lead in some formulations and the challenges in recycling ceramic materials, whereas aluminum nitride thermistors offer a more eco-friendly profile with higher thermal conductivity and chemical stability that reduce energy consumption during operation. Aluminum nitride is also non-toxic and inert, minimizing health risks in manufacturing and disposal processes compared to the potential toxicity of barium compounds. The safer handling and lower environmental footprint of aluminum nitride make it a preferred choice in applications prioritizing sustainability and workplace safety.
Conclusion: Choosing the Optimal Material
Barium titanate offers high dielectric constant and excellent temperature sensitivity, making it ideal for precise thermistor applications requiring stable capacitance changes. Aluminum nitride excels in thermal conductivity and mechanical robustness, suitable for high-power or high-temperature environments where rapid heat dissipation is critical. Selecting the optimal thermistor material depends on balancing sensitivity needs with thermal performance and environmental stability.

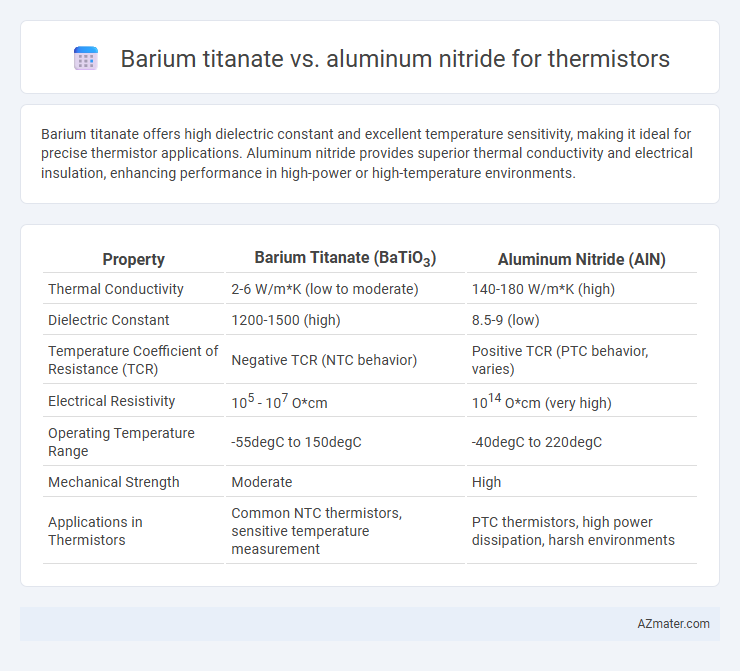

Infographic: Barium titanate vs Aluminum nitride for Thermistor
