Barium titanate vs. ceramic coating for multilayer capacitors - What is The Difference?

Barium titanate offers high dielectric constant and excellent temperature stability, making it ideal for multilayer capacitors, while ceramic coatings provide robust insulation and protection against environmental factors. Combining barium titanate with ceramic coatings enhances capacitor performance by improving capacitance and durability in electronic applications.

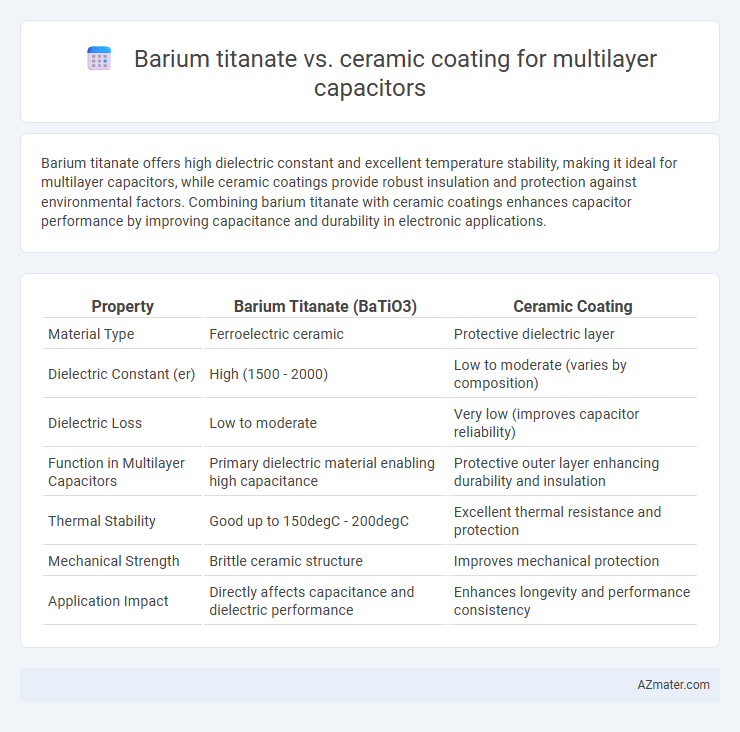

Table of Comparison

Introduction to Multilayer Capacitors

Multilayer capacitors (MLCs) utilize alternating layers of dielectric and electrode materials to achieve high capacitance in compact sizes, with barium titanate serving as a primary dielectric due to its excellent permittivity and temperature stability. Ceramic coatings on MLCs provide enhanced insulation, mechanical protection, and thermal resistance, crucial for maintaining performance and longevity in electronic applications. The choice between barium titanate and ceramic coatings directly influences factors such as capacitance density, dielectric loss, and reliability in multilayer capacitor designs.

Overview of Barium Titanate in Capacitors

Barium titanate (BaTiO3) is a ferroelectric ceramic material widely used as the dielectric layer in multilayer capacitors (MLCs) due to its high dielectric constant and excellent temperature stability. Its perovskite crystal structure allows for enhanced polarization under an electric field, significantly increasing capacitance density compared to conventional ceramic coatings. The tunable dielectric properties of barium titanate enable MLCs to achieve superior performance in electronic circuits, particularly in applications requiring high capacitance in compact sizes.

Characteristics of Ceramic Coating Materials

Ceramic coatings for multilayer capacitors (MLCs) primarily serve as protective layers, exhibiting high dielectric strength, thermal stability, and excellent resistance to moisture and corrosion. Unlike barium titanate, which functions as the dielectric material with a high dielectric constant and ferroelectric properties, ceramic coatings emphasize mechanical durability and environmental protection to enhance capacitor reliability. Key characteristics of ceramic coating materials include high insulation resistance, low dielectric loss, and the ability to maintain performance under thermal cycling and mechanical stress.

Dielectric Properties Comparison

Barium titanate exhibits a high dielectric constant typically ranging from 1,000 to 10,000, making it highly effective for multilayer capacitors requiring significant charge storage. Ceramic coatings, while providing excellent mechanical protection and temperature stability, generally have lower dielectric constants, often below 1,000. The superior dielectric permittivity of barium titanate enhances capacitance density, whereas ceramic coatings primarily contribute to durability and environmental resistance without significantly improving dielectric performance.

Capacitance Stability Under Varying Conditions

Barium titanate-based multilayer capacitors exhibit superior capacitance stability across temperature and frequency variations due to their high dielectric constant and low temperature coefficient compared to generic ceramic coatings. Ceramic coatings often lead to increased dielectric losses and capacitance drift under high humidity and thermal stress, reducing the reliability of multilayer capacitors in demanding environments. Optimizing the barium titanate composition enhances dielectric permittivity and minimizes degradation, ensuring consistent performance in electronic applications.

Thermal Performance and Reliability

Barium titanate exhibits superior dielectric properties and a high Curie temperature, which contribute to excellent thermal stability in multilayer capacitors, enhancing reliability under elevated temperatures. Ceramic coatings provide mechanical protection and can improve thermal dissipation, but their effectiveness depends on the composition and thickness, influencing capacitor lifespan and performance consistency. Optimizing the combination of barium titanate dielectric with advanced ceramic coatings ensures enhanced thermal performance and long-term reliability in multilayer capacitor applications.

Manufacturing Process Differences

Barium titanate-based multilayer capacitors (MLCCs) undergo a precise high-temperature sintering process to achieve their superior dielectric properties, involving complex powder preparation, tape casting, and electrode layering. Ceramic coatings used in MLCCs typically require lower sintering temperatures and simpler deposition methods such as sol-gel or sputtering, focusing on enhancing surface insulation and moisture resistance rather than bulk dielectric performance. The manufacturing differences significantly impact the capacitor's electrical characteristics, with barium titanate enabling high permittivity layers, whereas ceramic coatings primarily serve protective and reliability functions.

Cost and Scalability Considerations

Barium titanate offers a cost-effective base material for multilayer capacitors due to its abundance and relatively low raw material expense, whereas ceramic coatings often incur higher production costs from specialized processing techniques. Scalability favors barium titanate as its established synthesis and sintering processes enable large-scale manufacturing with consistent quality, while ceramic coatings may require intricate deposition methods that limit throughput. The choice between these materials hinges on balancing the lower material and processing costs of barium titanate against the enhanced performance but higher expense and complexity of ceramic coatings in mass production.

Applications and Industry Preferences

Barium titanate is widely favored in multilayer capacitors (MLCs) due to its high dielectric constant, enabling miniaturization in electronic devices such as smartphones and automotive electronics. Ceramic coatings, often composed of materials like alumina or zirconia, provide superior mechanical strength and thermal stability, making them ideal for high-reliability industrial and aerospace applications. Industry preferences lean towards barium titanate-based MLCs for consumer electronics, while ceramic-coated capacitors are preferred in harsh environments requiring enhanced durability and temperature resistance.

Future Trends in Capacitor Material Innovation

Barium titanate remains a cornerstone material in multilayer capacitors due to its high dielectric constant and excellent temperature stability, driving ongoing research into nanoscale doping and grain boundary engineering to enhance performance. Ceramic coating technologies are evolving to improve insulation and reliability while reducing size and cost, integrating advanced ceramic composites with tailored electrical and thermal properties. Future trends emphasize hybrid materials combining barium titanate's superior dielectric properties with innovative ceramic coatings to achieve higher capacitance density, faster charge-discharge cycles, and greater miniaturization for next-generation electronic devices.
