azmater.com Fluorocarbon rubber offers superior chemical resistance and high-temperature stability, making it ideal for hydraulic seals in harsh environments. Hydrogenated nitrile rubber provides excellent resistance to oils and wear, delivering durability in moderate temperature hydraulic applications.
Table of Comparison
| Property | Fluorocarbon Rubber (FKM) | Hydrogenated Nitrile Rubber (HNBR) |
|---|---|---|
| Temperature Range | -20degC to 200degC | -40degC to 150degC |
| Chemical Resistance | Excellent resistance to oils, fuels, and chemicals | Good resistance to oils and fuels, moderate chemical resistance |
| Compression Set | Low compression set, excellent sealing | Moderate compression set, good sealing under pressure |
| Wear Resistance | High wear and abrasion resistance | Good wear resistance, suitable for dynamic seals |
| Cost | Higher cost | Lower cost |
| Applications | High temperature hydraulic seals, aggressive chemical environments | Hydraulic seals with moderate temperature and chemical exposure |
Introduction to Hydraulic Seal Materials
Fluorocarbon rubber (FKM) and hydrogenated nitrile rubber (HNBR) serve as crucial materials for hydraulic seals due to their distinct chemical resistance and thermal stability properties. FKM offers excellent resistance to high temperatures, fuels, and chemicals, making it ideal for severe environments, while HNBR provides superior abrasion resistance, mechanical strength, and good resistance to oils and ozone. Selecting the appropriate material depends on the specific hydraulic system requirements, including fluid compatibility, operating temperature range, and pressure conditions.
Overview of Fluorocarbon Rubber (FKM)
Fluorocarbon rubber (FKM) is a high-performance elastomer known for exceptional chemical resistance, especially to fuels, oils, and heat, making it ideal for hydraulic seals in demanding environments. Its molecular structure offers superior resistance to compression set and swelling, ensuring long-term durability and reliability under high temperature and aggressive fluid exposure. FKM typically operates efficiently within temperature ranges from -20degC to 200degC, outperforming hydrogenated nitrile rubber (HNBR) in chemical stability and temperature tolerance for critical hydraulic sealing applications.
Overview of Hydrogenated Nitrile Rubber (HNBR)
Hydrogenated Nitrile Rubber (HNBR) is a high-performance elastomer known for its excellent resistance to heat, oil, and chemicals, making it ideal for hydraulic seals in demanding environments. Its molecular structure enhances thermal stability and ozone resistance compared to traditional nitrile rubber, providing extended service life in temperatures up to 150degC (302degF). HNBR outperforms fluorocarbon rubber (FKM) in dynamic applications requiring superior tensile strength and abrasion resistance, though FKM offers better chemical inertness in highly aggressive fluid conditions.
Chemical Resistance: FKM vs HNBR
Fluorocarbon rubber (FKM) exhibits superior chemical resistance against a wide range of fuels, oils, and solvents, maintaining integrity in temperatures up to 200degC, making it ideal for harsh hydraulic environments containing aggressive fluids. Hydrogenated nitrile rubber (HNBR) offers excellent resistance to oils, ozone, and heat up to 150degC but shows reduced performance against certain chemicals like ketones, amines, and esters when compared to FKM. For hydraulic seals exposed to extreme chemical and thermal conditions, FKM provides enhanced durability and extended service life, whereas HNBR serves well in less aggressive fluid environments with strong mechanical wear resistance.
Temperature Performance Comparison
Fluorocarbon rubber (FKM) exhibits superior temperature resistance, maintaining stability in continuous temperatures ranging from -20degC to 200degC and short-term exposure up to 250degC, making it ideal for high-temperature hydraulic seal applications. Hydrogenated nitrile rubber (HNBR) typically performs well between -40degC and 150degC, offering good thermal stability but limited compared to FKM under extreme heat conditions. The enhanced heat resistance of FKM ensures longer service life and reduced degradation in severe thermal environments, whereas HNBR is favored for moderate temperature ranges with added resistance to physical wear.
Mechanical Properties and Wear Resistance
Fluorocarbon rubber (FKM) exhibits superior mechanical properties including high tensile strength and excellent elasticity, making it highly resistant to deformation under hydraulic pressure. Its exceptional wear resistance stems from strong chemical bonds and low permeability to oils, which ensures long-lasting performance in harsh hydraulic environments. In contrast, hydrogenated nitrile rubber (HNBR) offers good mechanical strength and abrasion resistance but has lower thermal stability and chemical resistance compared to FKM, making it more suitable for moderate temperature and pressure hydraulic seals.
Compatibility with Hydraulic Fluids
Fluorocarbon rubber (FKM) exhibits excellent compatibility with a wide range of hydraulic fluids, including phosphate esters, mineral oils, and synthetic fluids, due to its exceptional chemical resistance and high-temperature stability. Hydrogenated nitrile rubber (HNBR) is also compatible with mineral oils and synthetic hydraulic fluids but shows superior resistance to abrasion and ozone compared to standard nitrile, though it may have limited performance with phosphate ester fluids. Selecting FKM or HNBR for hydraulic seals depends on the specific hydraulic fluid type, operating temperature, and required chemical resistance for optimal seal longevity and performance.
Cost Efficiency and Availability
Fluorocarbon rubber (FKM) offers superior chemical and temperature resistance for hydraulic seals but comes with higher costs and limited availability compared to hydrogenated nitrile rubber (HNBR), which provides excellent abrasion and ozone resistance at a more affordable price. HNBR's widespread manufacturing results in better supply chain reliability and cost efficiency, making it ideal for large-volume, budget-conscious hydraulic applications. Choosing between FKM and HNBR depends on balancing the initial material cost with long-term durability requirements in specific hydraulic operating conditions.
Typical Applications in Hydraulic Systems
Fluorocarbon rubber (FKM) is commonly used in hydraulic systems exposed to high temperatures, aggressive chemicals, and fuels, making it ideal for aerospace, automotive, and industrial hydraulic seals requiring excellent chemical resistance and thermal stability. Hydrogenated nitrile rubber (HNBR) offers superior abrasion resistance, tensile strength, and resistance to heat and oils, making it suitable for heavy-duty hydraulic seals in construction machinery, oilfield equipment, and automotive power steering applications. Both materials provide reliable sealing performance, with FKM preferred for extreme chemical environments and HNBR favored for dynamic, high-pressure hydraulic systems.
Choosing the Right Material for Hydraulic Seals
Fluorocarbon rubber offers superior chemical resistance and high-temperature stability, making it ideal for hydraulic seals exposed to aggressive fluids and extreme conditions. Hydrogenated nitrile rubber provides excellent oil resistance, wear resistance, and flexibility at a lower cost, suitable for standard hydraulic systems with moderate temperature ranges. Selecting the right material depends on factors like operating temperature, fluid compatibility, and mechanical stress to ensure optimal seal performance and longevity.

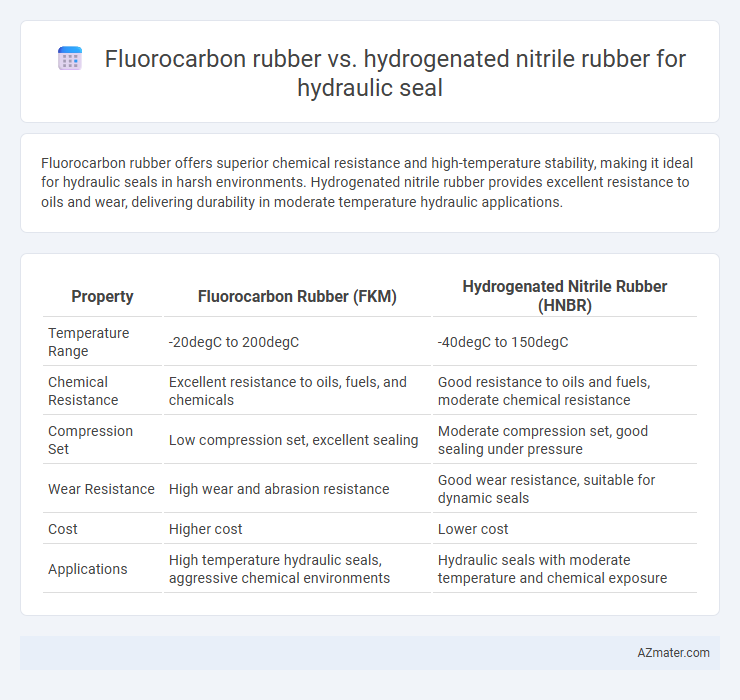

Infographic: Fluorocarbon rubber vs Hydrogenated nitrile rubber for Hydraulic seal
