azmater.com Polyvinylidene fluoride (PVDF) offers superior chemical resistance and durability compared to polyvinyl acetate (PVA), making it ideal for industrial adhesive applications. Polyvinyl acetate provides strong initial tack and flexibility, suitable for woodworking and general-purpose adhesives.
Table of Comparison
| Property | Polyvinylidene Fluoride (PVDF) | Polyvinyl Acetate (PVA) |
|---|---|---|
| Chemical Resistance | Excellent resistance to acids, bases, and solvents | Moderate, degrades with water and solvents |
| Adhesion Strength | High adhesion to metals, plastics, and glass | Good adhesion to porous materials like wood and paper |
| Temperature Resistance | Up to 150degC (302degF) | Up to 60degC (140degF) |
| Flexibility | Moderate flexibility, rigid | High flexibility and elasticity |
| Water Resistance | Excellent, highly hydrophobic | Poor, water soluble or swellable |
| UV Stability | Excellent UV resistance | Poor UV resistance; degrades under sunlight |
| Typical Uses in Adhesives | Industrial applications requiring chemical durability and heat resistance | Woodworking, paper bonding, and general household adhesives |
| Cost | Higher cost due to advanced properties | Lower cost, widely available |
Introduction to Polyvinylidene Fluoride (PVDF) and Polyvinyl Acetate (PVA)
Polyvinylidene fluoride (PVDF) is a highly non-reactive and pure thermoplastic fluoropolymer known for its excellent chemical resistance, high mechanical strength, and stability under UV exposure, making it ideal for durable adhesive applications in harsh environments. Polyvinyl acetate (PVA) is a versatile synthetic polymer widely used as an adhesive due to its strong bonding properties with porous materials, water solubility, and flexibility in woodworking and paper products. PVDF adhesives offer superior resistance to solvents and temperature compared to PVA adhesives, which excel in cost-effectiveness and ease of application for everyday bonding needs.
Chemical Structures and Properties: PVDF vs PVA
Polyvinylidene fluoride (PVDF) features a highly crystalline fluoropolymer structure characterized by strong carbon-fluorine bonds, offering exceptional chemical resistance, thermal stability, and durability in adhesives. In contrast, polyvinyl acetate (PVA) consists of a semi-crystalline polymer with ester functional groups, providing excellent adhesive strength but lower chemical resistance and thermal stability compared to PVDF. The distinct chemical structures result in PVDF adhesives being preferred for high-performance, chemically aggressive environments, while PVA adhesives are commonly used for applications requiring good adhesion with moderate durability and flexibility.
Adhesive Mechanisms: How PVDF and PVA Bond
Polyvinylidene fluoride (PVDF) adheres through strong dipole-dipole interactions and chemical resistance, making it suitable for bonding in harsh environments, while polyvinyl acetate (PVA) relies primarily on hydrogen bonding and mechanical interlocking for adhesion, favoring porous or cellulose-based substrates. PVDF forms semi-crystalline films with low surface energy requiring surface treatment for optimal bonding, whereas PVA's amorphous structure enables excellent wetting and film formation on a variety of surfaces. The differences in molecular polarity and crystallinity between PVDF and PVA define their distinct adhesive mechanisms and influence their application-specific performance.
Strength and Durability in Adhesive Applications
Polyvinylidene fluoride (PVDF) adhesives exhibit superior strength and chemical resistance compared to polyvinyl acetate (PVA), making PVDF ideal for high-performance applications exposed to harsh environments. PVDF maintains adhesion and durability under extreme temperatures and UV exposure, while PVA adhesives, though effective for interior and less demanding uses, tend to degrade faster with prolonged moisture or mechanical stress. The enhanced molecular stability of PVDF ensures long-term structural integrity in industrial and outdoor adhesive settings, contrasting with the comparatively lower durability of PVA-based adhesives.
Temperature and Chemical Resistance Comparison
Polyvinylidene fluoride (PVDF) adhesives exhibit superior temperature resistance, maintaining stability up to 150-170degC, while polyvinyl acetate (PVA) adhesives typically degrade above 60-80degC, limiting their use in high-heat applications. Chemically, PVDF shows excellent resistance to solvents, acids, and bases due to its fluorinated polymer structure, whereas PVA is susceptible to hydrolysis and swelling in water and various polar solvents. The enhanced thermal and chemical durability of PVDF adhesives makes them ideal for industrial environments requiring long-term performance under harsh conditions.
Applications in Industry: Where PVDF and PVA Excel
Polyvinylidene fluoride (PVDF) excels in industries requiring high chemical resistance, UV stability, and thermal tolerance, such as aerospace, chemical processing, and electronics for protective coatings and specialty adhesives. Polyvinyl acetate (PVA) is predominantly used in woodworking, paper, and packaging industries due to its excellent adhesion to porous materials, flexibility, and cost-effectiveness for general-purpose glues and coatings. While PVDF adhesives are preferred in harsh, high-performance applications, PVA adhesives dominate sectors focused on ease of application and biodegradability.
Environmental Impact and Safety Considerations
Polyvinylidene fluoride (PVDF) adhesives exhibit superior chemical resistance and durability, contributing to longer product life and reduced environmental waste compared to Polyvinyl acetate (PVA), which is less resistant to moisture and has a shorter lifespan. PVDF is chemically inert with low toxicity, minimizing health risks during use, whereas PVA may emit volatile organic compounds (VOCs) during application, posing potential respiratory hazards. Both materials require proper disposal, but PVDF's stability and inert properties often result in a more environmentally friendly footprint in industrial applications.
Cost-Effectiveness: PVDF vs PVA for Adhesives
Polyvinylidene fluoride (PVDF) adhesives offer superior chemical resistance and durability but come at a higher cost compared to polyvinyl acetate (PVA), which is widely favored for its affordability and ease of use in general-purpose bonding. PVA adhesives are cost-effective solutions ideal for woodworking and paper applications, while PVDF adhesives justify their premium price through enhanced performance in harsh environments, such as chemical or UV exposure. Choosing between PVDF and PVA depends on budget constraints and the specific requirements of adhesive strength, environmental resistance, and longevity.
Limitations and Challenges of Each Material
Polyvinylidene fluoride (PVDF) adhesives face limitations such as poor adhesion on low surface energy plastics and difficulty in processing due to their high melting point and chemical resistance. Polyvinyl acetate (PVA) adhesives exhibit challenges including sensitivity to moisture, poor water resistance, and limited thermal stability, which restrict their use in high-humidity or heat-exposed environments. Both materials require surface treatments or additives to enhance bonding performance and environmental durability in specialized applications.
Choosing the Right Adhesive: PVDF or PVA?
Polyvinylidene fluoride (PVDF) offers superior chemical resistance, UV stability, and mechanical strength, making it ideal for industrial adhesives exposed to harsh environments. Polyvinyl acetate (PVA) provides excellent adhesion to porous surfaces like wood and paper, with cost-effective and easy-to-use water-based formulations suited for general household and woodworking applications. Selecting PVDF or PVA depends on the specific adhesion requirements, substrate compatibility, and environmental exposure conditions for optimal performance.

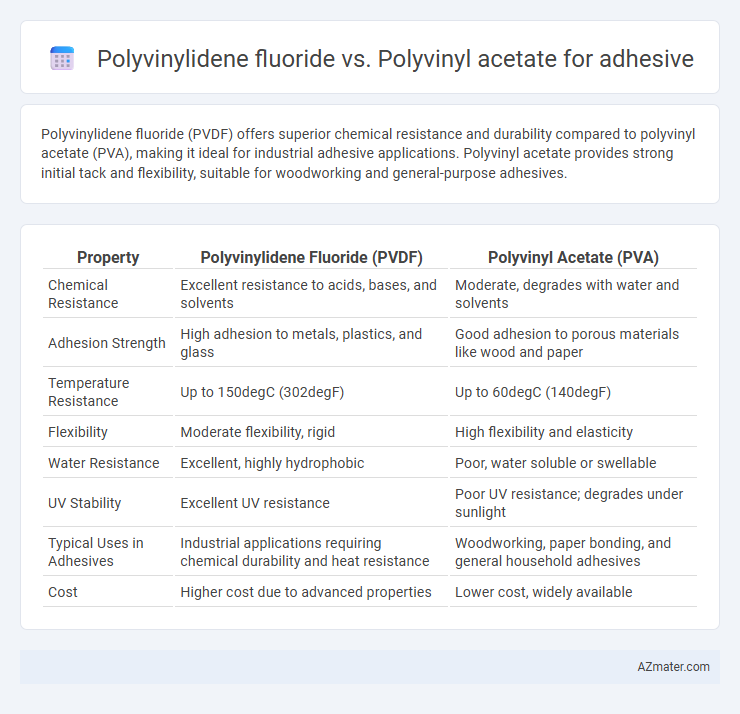

Infographic: Polyvinylidene fluoride vs Polyvinyl acetate for Adhesive
