azmater.com Liquid crystal polymer (LCP) offers superior thermal stability and chemical resistance compared to polycarbonate, making it ideal for high-performance electrical connectors. Polycarbonate excels in impact resistance and cost-effectiveness but has lower heat tolerance and dimensional stability than LCP.
Table of Comparison
| Property | Liquid Crystal Polymer (LCP) | Polycarbonate (PC) |
|---|---|---|
| Thermal Resistance | High; continuous use up to 240degC | Moderate; continuous use up to 115degC |
| Mechanical Strength | Excellent stiffness and tensile strength | Good impact resistance and toughness |
| Electrical Insulation | Superior dielectric properties | Good dielectric strength |
| Chemical Resistance | Excellent; resistant to solvents and acids | Moderate; susceptible to some solvents |
| Moisture Absorption | Very low; stable in humid environments | Higher; can absorb moisture affecting performance |
| Dimensional Stability | High precision with minimal warpage | Moderate; may deform under stress |
| Application Suitability | High-performance electrical connectors, high-temp environments | General-purpose connectors, cost-sensitive applications |
| Cost | Higher; advanced material | Lower; widely available |
Introduction: Importance of Material Selection in Electrical Connectors
Material selection in electrical connectors is crucial due to the need for durability, thermal stability, and electrical insulation. Liquid crystal polymer (LCP) offers superior mechanical strength, high heat resistance, and excellent chemical stability, making it ideal for high-performance and high-temperature applications. Polycarbonate provides good impact resistance and electrical insulation but generally falls short in thermal stability and chemical resistance compared to LCP, affecting connector reliability under extreme conditions.
Overview of Liquid Crystal Polymer (LCP)
Liquid Crystal Polymer (LCP) is a high-performance thermoplastic known for excellent dimensional stability, low moisture absorption, and superior chemical resistance, making it ideal for electrical connectors in demanding environments. Its unique molecular structure provides exceptional mechanical strength and high-temperature resistance, outperforming Polycarbonate (PC) in electrical insulation and durability under thermal stress. LCP's low dielectric constant and minimal signal loss enhance connector performance in high-frequency applications where precision and reliability are critical.
Overview of Polycarbonate (PC)
Polycarbonate (PC) is a highly durable thermoplastic widely used in electrical connectors for its excellent impact resistance, dimensional stability, and electrical insulation properties. Its ability to withstand high temperatures up to 135degC and maintain mechanical strength makes it suitable for connectors in demanding electrical applications. Polycarbonate also offers good chemical resistance and ease of molding, enabling precise, reliable connector components with consistent performance.
Mechanical Properties Comparison
Liquid crystal polymer (LCP) offers superior mechanical strength, stiffness, and dimensional stability compared to polycarbonate (PC), making it ideal for high-performance electrical connectors exposed to stress and high temperatures. LCP exhibits excellent resistance to creep and fatigue, maintaining structural integrity in demanding environments, whereas PC tends to soften and deform under prolonged mechanical load. The enhanced tensile strength and low moisture absorption of LCP contribute to its durability and reliability in precision connector applications, outperforming polycarbonate in harsh industrial conditions.
Thermal Performance and Heat Resistance
Liquid crystal polymer (LCP) exhibits superior thermal performance compared to polycarbonate, with a higher melting point around 280degC versus polycarbonate's glass transition temperature near 147degC. LCP maintains mechanical stability and dimensional integrity under prolonged exposure to elevated temperatures, making it ideal for electrical connectors in high-heat environments. Polycarbonate, while offering good impact resistance, deforms more readily under heat, limiting its use in applications requiring robust heat resistance and reliable thermal performance.
Electrical Insulation Capabilities
Liquid crystal polymer (LCP) offers superior electrical insulation properties compared to polycarbonate, making it ideal for high-performance electrical connectors. LCP exhibits a high dielectric strength of approximately 15-20 kV/mm and low dielectric constant, ensuring minimal signal loss and excellent resistance to electrical breakdown. Polycarbonate has moderate insulation capabilities but tends to have higher dielectric losses and lower thermal stability, limiting its effectiveness in demanding electrical applications.
Chemical Resistance and Durability
Liquid crystal polymer (LCP) demonstrates superior chemical resistance compared to polycarbonate (PC), effectively withstanding exposure to harsh solvents, fuels, and acids commonly encountered in electrical connector environments. LCP's molecular structure provides exceptional dimensional stability and high tensile strength, resulting in enhanced durability under mechanical stress and thermal cycling. Polycarbonate, while offering good impact resistance, is more susceptible to chemical degradation and may experience embrittlement or discoloration when exposed to aggressive chemicals, limiting its long-term use in harsh electrical connector applications.
Processability and Manufacturing Considerations
Liquid crystal polymer (LCP) offers superior processability for electrical connectors due to its low melt viscosity, enabling precise molding of intricate geometries and fine pitch designs, which is essential for high-density interconnects. Polycarbonate (PC), while easier to mold at lower temperatures, exhibits higher melt viscosity and less dimensional stability, potentially limiting tight tolerance manufacturing and leading to increased cycle times or post-processing. Manufacturing considerations favor LCP for high-performance, miniaturized connectors requiring chemical resistance and thermal stability, whereas PC is often chosen for cost-effective applications with moderate electrical and mechanical demands.
Cost Analysis: LCP vs Polycarbonate
Liquid crystal polymer (LCP) offers superior thermal stability and chemical resistance compared to polycarbonate, but its material and processing costs are generally higher, impacting the overall expense of electrical connectors. Polycarbonate provides a more cost-effective solution with easier moldability and lower raw material prices, making it suitable for budget-sensitive applications. However, the long-term durability and performance advantages of LCP can justify its premium cost in high-reliability or harsh-environment connectors.
Application Suitability and Industry Use Cases
Liquid crystal polymer (LCP) offers superior chemical resistance, high thermal stability up to 260degC, and excellent dimensional stability, making it ideal for high-performance electrical connectors in aerospace, automotive, and telecommunications industries where precision and heat resistance are critical. Polycarbonate (PC) is widely used in consumer electronics and general electrical connectors due to its good impact resistance, ease of molding, and cost-effectiveness but has lower heat resistance, typically up to 135degC, limiting its use in high-temperature environments. The choice between LCP and PC depends on application requirements such as operating temperature, mechanical durability, and exposure to harsh environments, with LCP preferred for demanding industrial uses and PC favored for standard consumer applications.

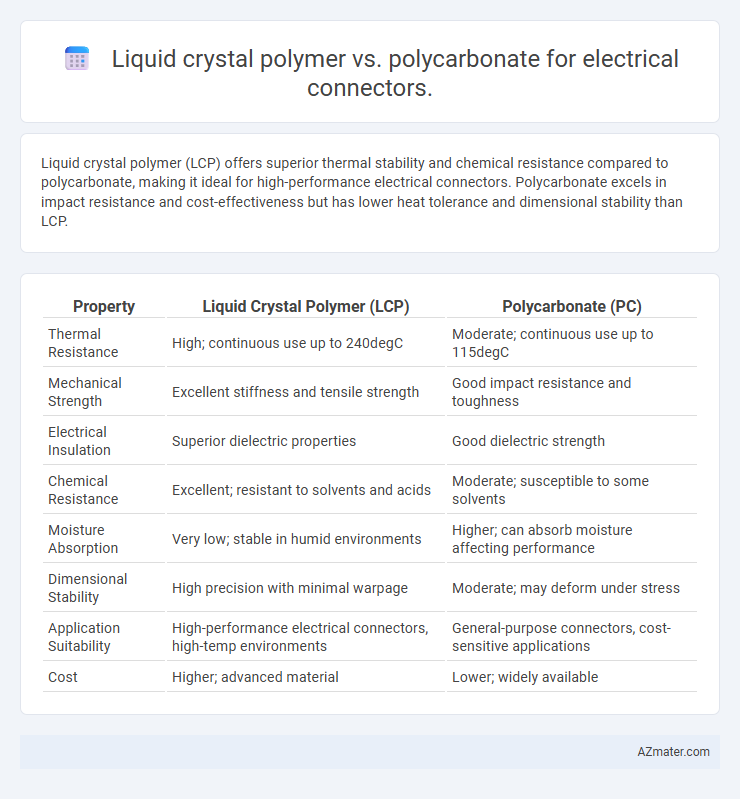

Infographic: Liquid crystal polymer vs Polycarbonate for Electrical connector
