azmater.com Liquid crystal polymer (LCP) offers superior thermal stability, low moisture absorption, and high-frequency performance compared to phenolic materials, making it ideal for advanced circuit boards. Phenolic boards are cost-effective but have lower mechanical strength and electrical insulation properties, limiting their use in high-performance applications.
Table of Comparison
| Property | Liquid Crystal Polymer (LCP) | Phenolic |
|---|---|---|
| Thermal Stability | High thermal resistance up to 260degC | Moderate thermal resistance up to 120degC |
| Dielectric Constant | Low (~3.0), ideal for high-frequency circuits | Higher (~5.0), less suitable for RF applications |
| Moisture Absorption | Very low (<0.1%), improves signal integrity | High (up to 3-5%), may cause dimensional changes |
| Mechanical Strength | Excellent tensile strength and toughness | Good but brittle under stress |
| Chemical Resistance | Superior resistance to solvents and chemicals | Moderate resistance, prone to degradation |
| Cost | High, due to advanced processing and performance | Low, commonly used budget material |
| Application | High-performance flexible circuit boards, aerospace | Standard electronic circuit boards, consumer products |
Introduction to Liquid Crystal Polymer and Phenolic
Liquid crystal polymer (LCP) is a high-performance thermoplastic known for its exceptional dimensional stability, low dielectric constant, and superior moisture resistance, making it ideal for advanced circuit board applications requiring high-frequency performance and miniaturization. Phenolic, a traditional resin commonly used in printed circuit boards (PCBs), offers cost-effective mechanical strength and thermal resistance but has higher dielectric losses and lower moisture resistance compared to LCP. The distinct properties of LCP and phenolic materials influence their suitability for different electronic environments, with LCP favored in high-speed, high-frequency circuits and phenolic in lower-performance or cost-sensitive designs.
Material Composition and Properties
Liquid crystal polymer (LCP) circuit boards feature a highly ordered polymer structure that offers exceptional thermal stability, low moisture absorption, and excellent dimensional stability, making them ideal for high-frequency and high-speed applications. Phenolic circuit boards, composed primarily of cellulose-based phenol formaldehyde resin, provide good mechanical strength and electrical insulation but suffer from higher moisture absorption and lower thermal resistance compared to LCP. The advanced molecular alignment in LCP materials results in superior dielectric properties and corrosion resistance, while phenolic substrates remain cost-effective but less suitable for demanding electronic environments.
Electrical Performance Comparison
Liquid crystal polymer (LCP) circuit boards offer superior electrical performance due to their low dielectric constant (around 2.9) and low dissipation factor, resulting in minimal signal loss and high-frequency stability compared to phenolic boards, which typically have a higher dielectric constant (about 5.0) leading to greater signal attenuation. LCP materials exhibit excellent insulation resistance and a wide operating frequency range, making them ideal for high-speed, high-frequency applications, while phenolic boards suffer from increased dielectric loss and limited frequency capability. The enhanced electrical characteristics of LCP contribute to reduced electromagnetic interference (EMI) and improved signal integrity in advanced circuit designs.
Thermal Stability and Heat Resistance
Liquid crystal polymer (LCP) circuit boards exhibit superior thermal stability and heat resistance compared to phenolic materials, with LCPs maintaining integrity at temperatures exceeding 250degC while phenolic boards typically withstand up to 130degC. LCP's unique molecular alignment provides outstanding dimensional stability and minimal thermal expansion, ideal for high-frequency and high-temperature applications. Phenolic boards, though cost-effective, suffer from lower heat resistance and increased thermal degradation, limiting their use in demanding thermal environments.
Mechanical Strength and Durability
Liquid crystal polymer (LCP) circuit boards exhibit superior mechanical strength and durability compared to phenolic boards due to their high tensile modulus and excellent resistance to wear and deformation under stress. LCP materials maintain structural integrity at elevated temperatures and resist moisture absorption, ensuring long-term reliability in demanding electronic applications. Phenolic circuit boards, though cost-effective, tend to have lower mechanical robustness and are more susceptible to cracking and delamination, limiting their performance in high-stress environments.
Processing and Manufacturing Methods
Liquid crystal polymer (LCP) circuits benefit from advanced processing techniques such as high-precision injection molding and laser direct structuring, enabling finer circuit geometries and improved thermal stability. Phenolic circuit boards rely on traditional lamination and etching processes, which are cost-effective but limit resolution and heat resistance compared to LCP. Manufacturing LCP boards demands tighter process controls due to its anisotropic properties, whereas phenolic materials allow more flexibility in standard PCB fabrication lines.
Cost Efficiency and Availability
Liquid crystal polymer (LCP) circuit boards typically have higher material and processing costs compared to phenolic boards due to their superior thermal and mechanical properties. Phenolic boards offer cost efficiency and widespread availability, making them a preferred choice for budget-sensitive, low-performance applications. The balance between performance requirements and production volume heavily influences the selection between LCP and phenolic substrates in circuit board manufacturing.
Suitability for High-Frequency Applications
Liquid crystal polymer (LCP) offers superior dielectric properties with low signal loss and minimal moisture absorption, making it highly suitable for high-frequency circuit board applications up to millimeter-wave frequencies. Phenolic, while cost-effective, exhibits higher dielectric constant and loss tangent, resulting in greater signal attenuation and limited performance at high frequencies. LCP's stable thermal and electrical characteristics enable reliable operation in advanced RF and microwave circuits where phenolic materials typically fall short.
Environmental Impact and Sustainability
Liquid crystal polymer (LCP) circuit boards offer superior environmental benefits due to their recyclability and lower energy consumption during manufacturing compared to phenolic boards, which rely on less sustainable, petroleum-based phenolic resins. LCP materials demonstrate enhanced durability and thermal stability, extending product lifespans and reducing electronic waste generation relative to phenolic alternatives. The adoption of LCP in circuit boards aligns with sustainability goals by minimizing hazardous chemical use and facilitating eco-friendly disposal processes.
Choosing the Right Material for PCB Design
Liquid crystal polymer (LCP) offers superior electrical performance, low moisture absorption, and high thermal stability, making it ideal for high-frequency and high-speed PCB designs. Phenolic materials provide cost-effective solutions with moderate mechanical and thermal properties but lack the advanced electrical characteristics required for precision circuits. Selecting the right PCB material depends on balancing performance demands, environmental conditions, and budget constraints, with LCP suited for high-end applications and phenolic for lower-cost, less demanding designs.

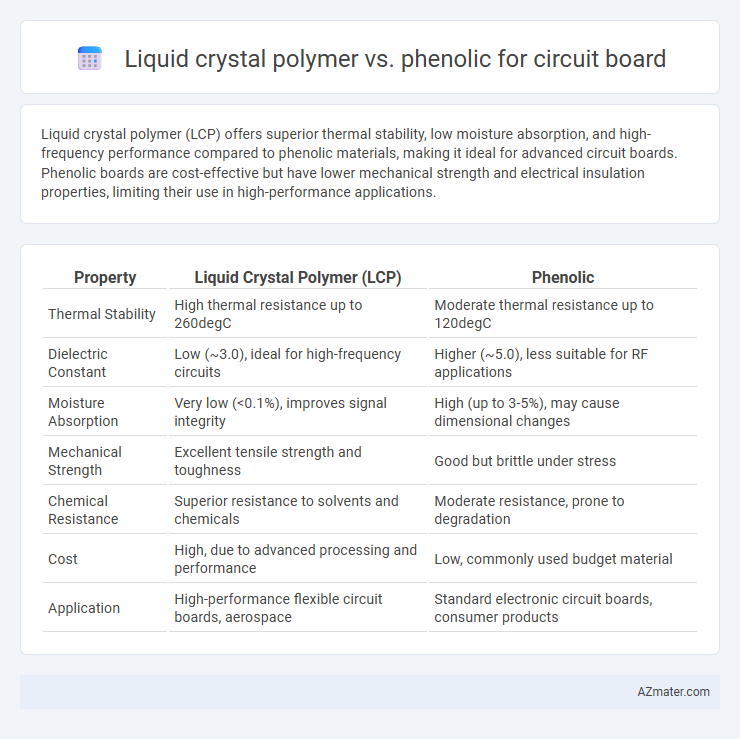

Infographic: Liquid crystal polymer vs Phenolic for Circuit board
