azmater.com Barium titanate offers high dielectric constant and excellent electric permittivity, making it ideal for capacitors requiring high capacitance in compact sizes. Aluminum oxide provides superior dielectric strength and thermal stability, suitable for capacitors needing high voltage endurance and long-term reliability.
Table of Comparison
| Property | Barium Titanate (BaTiO3) | Aluminum Oxide (Al2O3) |
|---|---|---|
| Dielectric Constant (Relative Permittivity) | ~1200 - 1700 | ~9 - 10 |
| Dielectric Strength (kV/mm) | ~12 - 20 | ~10 - 15 |
| Temperature Stability | Moderate to Low (TC may vary) | High (Stable across temperature) |
| Loss Tangent (tan d) | 0.01 - 0.05 | < 0.001 |
| Application in Capacitors | High-capacitance MLCCs, temperature-sensitive devices | High-voltage, high-frequency, and stable capacitors |
| Mechanical Hardness | Lower (Brittle, less hard) | High (Hard and wear-resistant) |
| Cost | Moderate | Low to Moderate |
Introduction to Barium Titanate and Aluminum Oxide in Capacitors
Barium titanate (BaTiO3) is a ferroelectric ceramic material widely used in capacitors for its high dielectric constant and excellent temperature stability, enabling increased capacitance in compact sizes. Aluminum oxide (Al2O3) is employed as a dielectric in electrolytic capacitors, prized for its high breakdown voltage and good insulating properties that ensure reliability in power applications. Both materials serve distinct roles, with barium titanate preferred for multilayer ceramic capacitors (MLCCs) and aluminum oxide dominating in aluminum electrolytic capacitors due to their unique electrical characteristics.
Material Properties Comparison
Barium titanate exhibits a high dielectric constant ranging from 1,500 to 6,000, making it ideal for capacitors requiring high capacitance in compact sizes, while aluminum oxide has a lower dielectric constant around 9 but offers superior dielectric strength and thermal stability. Barium titanate is a ferroelectric ceramic material with significant temperature sensitivity and nonlinear dielectric behavior, whereas aluminum oxide is an amorphous insulating oxide known for its excellent chemical stability and resistance to high voltage breakdown. The choice between these materials impacts capacitor performance, with barium titanate favored for multilayer ceramic capacitors (MLCCs) demanding high capacitance, and aluminum oxide commonly used in electrolytic capacitors prioritizing endurance and voltage tolerance.
Dielectric Constant: Barium Titanate vs Aluminum Oxide
Barium titanate exhibits a significantly higher dielectric constant, typically ranging from 1,500 to 4,000, compared to aluminum oxide, which has a much lower dielectric constant of about 9 to 10. This substantial difference makes barium titanate highly effective for applications requiring large capacitance within compact sizes. In contrast, aluminum oxide's lower dielectric constant limits its capacitance but offers excellent dielectric strength and stability for various capacitor designs.
Temperature Stability and Performance
Barium titanate offers high dielectric constant and excellent temperature stability, making it ideal for capacitors in applications requiring consistent capacitance across wide temperature ranges. Aluminum oxide, while providing high insulation resistance and thermal conductivity, exhibits less stable capacitance with temperature variations. For high-performance capacitors where temperature stability is critical, barium titanate-based dielectrics generally outperform aluminum oxide alternatives.
Frequency Response and Loss Characteristics
Barium titanate exhibits high dielectric constant and strong frequency-dependent permittivity, making it suitable for capacitors operating at low to mid-frequency ranges but with increased dielectric losses at higher frequencies. Aluminum oxide offers low dielectric constant yet superior frequency stability and minimal dielectric loss, ideal for high-frequency applications requiring low dissipation factors. The choice between barium titanate and aluminum oxide critically impacts capacitor performance, balancing capacitance density against frequency response and loss characteristics.
Capacitance Density and Miniaturization
Barium titanate offers significantly higher capacitance density compared to aluminum oxide due to its superior dielectric constant, enabling greater energy storage in smaller volumes. This high dielectric constant facilitates enhanced miniaturization of capacitors, making barium titanate ideal for compact electronic devices requiring efficient space utilization. In contrast, aluminum oxide's lower capacitance density limits its effectiveness for applications demanding extreme miniaturization despite its excellent dielectric strength and stability.
Manufacturing Processes and Cost Factors
Barium titanate capacitors are manufactured using complex ceramic sintering processes that require precise temperature control to achieve high dielectric constants, resulting in higher production costs compared to aluminum oxide capacitors. Aluminum oxide capacitors utilize anodization of aluminum foil, a simpler and more cost-effective process, making them favorable for large-scale manufacturing with lower material expenses. Cost factors for barium titanate involve expensive raw materials and energy-intensive processing, whereas aluminum oxide benefits from abundant materials and streamlined manufacturing, impacting their overall market pricing and application suitability.
Applications in Modern Electronics
Barium titanate is widely used in multilayer ceramic capacitors (MLCCs) due to its high dielectric constant, enabling compact size and high capacitance, making it ideal for mobile devices, automotive electronics, and consumer gadgets. Aluminum oxide serves primarily in electrolytic capacitors, offering high voltage tolerance and stable performance in power supplies, industrial machinery, and audio equipment. The choice between barium titanate and aluminum oxide depends on the required capacitance density, voltage rating, and frequency response in modern electronic applications.
Environmental and Reliability Considerations
Barium titanate capacitors exhibit higher dielectric constants, enabling miniaturization with improved energy density; however, they have greater sensitivity to humidity and temperature variations, risking performance degradation. Aluminum oxide capacitors offer superior environmental stability and long-term reliability, especially in harsh or high-temperature conditions, due to their robust oxide layer and lower susceptibility to chemical breakdown. For applications prioritizing environmental resilience and consistent lifespan, aluminum oxide is often preferred despite a lower capacitance per volume compared to barium titanate.
Choosing the Right Material for Optimal Capacitor Performance
Barium titanate offers high dielectric constant and excellent ferroelectric properties, making it ideal for capacitors requiring high capacitance and energy storage. Aluminum oxide provides superior thermal stability and breakdown voltage, suitable for capacitors needing durability and reliability under high voltages. Selecting the right material depends on application-specific performance criteria such as capacitance density, voltage rating, and operating temperature range.

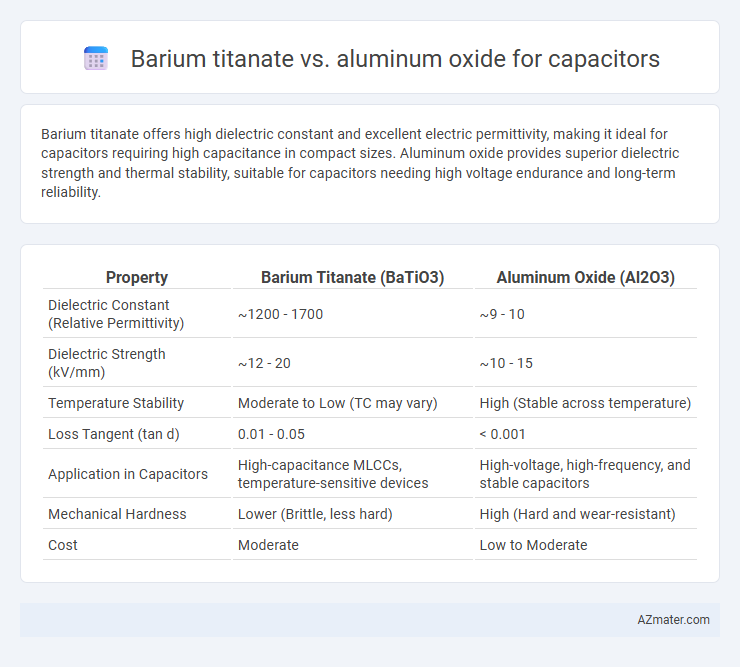

Infographic: Barium titanate vs Aluminum oxide for Capacitor
