Silicon Carbide vs. Alumina for Kiln Furniture - What is The Difference?

Silicon Carbide offers superior thermal conductivity and abrasion resistance compared to Alumina, making it ideal for high-temperature kiln furniture applications. Alumina provides excellent chemical stability and cost-effectiveness but lacks the mechanical strength and rapid heating capability of Silicon Carbide.

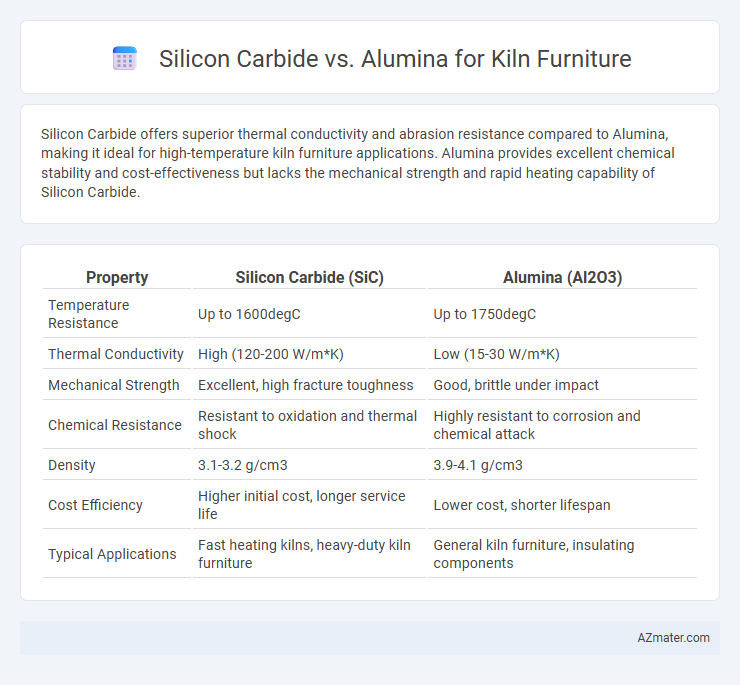

Table of Comparison

Introduction to Kiln Furniture Materials

Kiln furniture materials like silicon carbide and alumina play crucial roles in high-temperature industrial processes by providing thermal stability and mechanical strength. Silicon carbide offers superior thermal shock resistance and high thermal conductivity, making it ideal for rapid heating and cooling cycles. Alumina, known for its excellent chemical inertness and high melting point, is preferred for its durability and resistance to wear in corrosive environments.

Overview of Silicon Carbide

Silicon carbide kiln furniture offers exceptional thermal shock resistance and high thermal conductivity, making it ideal for rapid heating and cooling cycles in industrial kilns. Its superior mechanical strength and low thermal expansion reduce deformation and extend service life compared to alumina alternatives. Silicon carbide also resists chemical corrosion and abrasion at high temperatures, enhancing efficiency in demanding ceramic and glass firing processes.

Overview of Alumina

Alumina, or aluminum oxide (Al2O3), is a widely used ceramic material in kiln furniture due to its excellent thermal stability, high melting point of approximately 2072degC, and strong resistance to chemical corrosion and thermal shock. It offers outstanding mechanical strength and wear resistance, making it ideal for supporting heavy loads during high-temperature firing cycles. Compared to silicon carbide, alumina is more chemically inert, providing longer service life in oxidizing atmospheres within kilns.

Thermal Performance Comparison

Silicon carbide kiln furniture offers superior thermal conductivity, allowing rapid heat transfer and uniform temperature distribution, which enhances kiln efficiency and reduces firing times. Alumina possesses higher thermal stability and resistance to chemical corrosion at extreme temperatures, making it suitable for prolonged high-temperature applications despite its lower thermal conductivity. The choice between silicon carbide and alumina depends on the specific kiln operating temperature, atmosphere, and thermal cycling requirements, with silicon carbide favored for fast firing cycles and alumina preferred for high-temperature durability.

Mechanical Strength and Durability

Silicon carbide kiln furniture exhibits superior mechanical strength with flexural strengths ranging from 300 to 350 MPa, significantly outperforming alumina, which typically offers 150 to 200 MPa. The high fracture toughness of silicon carbide enhances its resistance to thermal shock and mechanical stress, ensuring durability in repeated heating cycles. Alumina, while chemically stable and cost-effective, demonstrates lower resistance to thermal shock and mechanical wear, making silicon carbide the preferred choice for high-performance kiln furniture applications.

Chemical Resistance and Reactivity

Silicon carbide exhibits superior chemical resistance and low reactivity in kiln furniture applications, maintaining stability in both oxidizing and reducing atmospheres at high temperatures. Alumina, while chemically inert in many environments, is more prone to gradual degradation when exposed to certain fluxing agents and alkaline conditions. The enhanced chemical durability of silicon carbide makes it the preferred material for kiln furniture used in aggressive firing environments.

Weight and Handling Considerations

Silicon carbide kiln furniture typically offers a lighter weight compared to alumina, making it easier to handle and transport during kiln setup and maintenance. The lower density of silicon carbide reduces strain on kiln structures and allows for more flexible configurations, while alumina's higher density and brittleness can increase the risk of breakage during handling. Choosing silicon carbide improves operational efficiency by minimizing labor effort and lowering potential damage in heavy-duty kiln environments.

Cost Analysis and Lifespan

Silicon carbide kiln furniture offers higher initial costs compared to alumina, but its superior thermal shock resistance and mechanical strength result in a longer lifespan, often doubling that of alumina counterparts. Alumina kiln furniture is more affordable upfront but tends to wear out faster under high-temperature cycling, leading to increased replacement frequency and higher long-term expenses. Cost analysis favors silicon carbide for intensive industrial use due to reduced downtime and replacement costs despite the higher purchase price.

Suitability for Various Firing Conditions

Silicon Carbide kiln furniture exhibits exceptional thermal shock resistance and high strength, making it ideal for rapid firing cycles and high-temperature applications exceeding 1600degC. Alumina kiln furniture, with superior chemical stability and oxidation resistance, suits prolonged firing conditions and environments with aggressive atmospheres, typically up to 1750degC. Each material's unique thermal properties determine its suitability, with Silicon Carbide preferred for quick heat-up and cool-down phases, while Alumina excels in maintaining dimensional stability during extended firing processes.

Conclusion: Choosing the Right Material for Kiln Furniture

Silicon carbide offers superior thermal shock resistance and higher mechanical strength, making it ideal for high-temperature kiln furniture applications requiring durability and rapid heating cycles. Alumina provides excellent chemical stability and cost-effectiveness, suitable for less demanding environments with moderate temperatures. Selecting the right material depends on kiln operating conditions, thermal requirements, and budget constraints to ensure longevity and optimal performance.
