azmater.com Conductive rubber offers superior electrical conductivity and durability compared to nitrile rubber, which is primarily valued for its chemical resistance and flexibility in membrane switch applications. Choosing conductive rubber enhances signal transmission efficiency and long-term performance in membrane switch designs.
Table of Comparison
| Property | Conductive Rubber | Nitrile Rubber |
|---|---|---|
| Electrical Conductivity | High conductivity, ideal for membrane switches | Non-conductive, requires coating or additives for conductivity |
| Durability | Moderate, good for repetitive use in switches | High, excellent resistance to abrasion and wear |
| Chemical Resistance | Moderate, less resistant to oils and solvents | Excellent resistance to oils, fuels, and chemicals |
| Flexibility | Good flexibility, suitable for thin membrane layers | High flexibility, durable under mechanical stress |
| Cost | Generally higher due to conductive fillers | Lower cost, widely available |
| Application in Membrane Switch | Primary choice for conductive pathways and contact points | Used mainly for sealing, insulation, or non-conductive layers |
Introduction to Membrane Switch Technologies
Membrane switch technologies utilize thin, flexible layers to create user interfaces with printed circuits protected by overlays. Conductive rubber offers reliable tactile feedback and superior conductivity, making it ideal for dynamic input applications, while nitrile rubber provides excellent chemical resistance and durability in harsh environments. Selecting between conductive and nitrile rubber depends on the membrane switch's required responsiveness, environmental resilience, and lifespan.
Overview of Conductive Rubber Materials
Conductive rubber materials used in membrane switches primarily consist of nitrile rubber integrated with carbon or metallic particles to provide electrical conductivity while maintaining flexibility and durability. These rubbers exhibit excellent compression set resistance and stable contact resistance, making them ideal for reliable keystroke feedback and consistent circuit closure in electronic devices. Compared to standard nitrile rubber, conductive variants are optimized for enhanced conductivity without compromising mechanical properties essential for membrane switch performance.
Overview of Nitrile Rubber Materials
Nitrile rubber, known for its excellent resistance to oils, fuels, and chemicals, is widely used in membrane switch applications where durability and environmental resistance are critical. This synthetic rubber exhibits strong mechanical properties, including abrasion and tear resistance, making it suitable for flexible and reliable membrane switch membranes. Unlike conductive rubber, nitrile rubber typically requires a conductive coating or additive to achieve electrical conductivity while maintaining its inherent robustness.
Electrical Conductivity Comparison
Conductive rubber exhibits significantly higher electrical conductivity compared to nitrile rubber, making it ideal for membrane switch applications requiring efficient signal transmission and rapid response. The incorporation of conductive fillers such as carbon black or silver particles into conductive rubber enables stable resistance levels typically ranging from 10 to 10^4 ohms, whereas nitrile rubber is inherently an electrical insulator with resistivity in the order of 10^13 ohm*cm. Electrical performance in membrane switches is thus greatly enhanced by conductive rubber's superior conductivity, leading to improved durability and accuracy in tactile activation.
Durability and Longevity in Membrane Switches
Conductive rubber offers superior durability for membrane switches due to its enhanced electrical conductivity and resistance to wear, ensuring consistent signal transmission over extended use. Nitrile rubber provides robust mechanical strength and excellent oil and chemical resistance, contributing to membrane switch longevity in harsh environments. Choosing between conductive and nitrile rubber depends on the specific application requirements, where conductive rubber excels in electrical performance and nitrile rubber in physical resilience.
Chemical and Environmental Resistance
Conductive rubber exhibits superior resistance to oils, solvents, and chemicals compared to nitrile rubber, making it more suitable for harsh chemical environments in membrane switch applications. Nitrile rubber provides excellent resistance to petroleum-based oils and fuels but is less effective against certain solvents and chemicals that can degrade the membrane switch's performance. Environmental resistance of conductive rubber includes better tolerance to temperature fluctuations and moisture, enhancing durability in diverse operating conditions.
Flexibility and Tactile Response
Conductive rubber offers superior flexibility and a precise tactile response, making it ideal for membrane switches requiring sensitive actuation and consistent feedback. Nitrile rubber, while durable and resistant to oils, provides a firmer feel with less flexibility, which can diminish the responsiveness of tactile inputs. Selecting conductive rubber enhances user experience by delivering smoother keystrokes and reliable performance in membrane switch applications.
Cost Analysis: Conductive Rubber vs Nitrile Rubber
Conductive rubber typically costs more than nitrile rubber due to the specialized materials and manufacturing processes required to embed conductive particles. Nitrile rubber offers a lower-cost alternative with durable, flexible properties but lacks inherent conductivity, requiring additional conductive layers for membrane switch applications. When selecting materials, budget constraints and performance needs dictate whether the higher upfront cost of conductive rubber justifies its functional benefits over nitrile rubber in membrane switches.
Application Suitability and Industry Use-Cases
Conductive rubber excels in membrane switch applications requiring precise electrical conductivity and consistent tactile feedback, making it ideal for consumer electronics, medical devices, and industrial control panels. Nitrile rubber, known for its superior chemical resistance and durability, suits membrane switches used in harsh environments such as automotive diagnostics, oil and gas equipment, and heavy machinery controls. Selecting between conductive and nitrile rubber depends on the specific demands of the application, balancing electrical performance with environmental resistance.
Conclusion: Selecting the Best Rubber for Membrane Switches
Conductive rubber offers superior electrical properties essential for membrane switch functionality, while nitrile rubber provides excellent chemical resistance and durability. For optimal membrane switch performance, selecting conductive rubber ensures reliable signal transmission and sensitivity. Nitrile rubber suits environments requiring enhanced mechanical resilience but may compromise electrical conductivity.

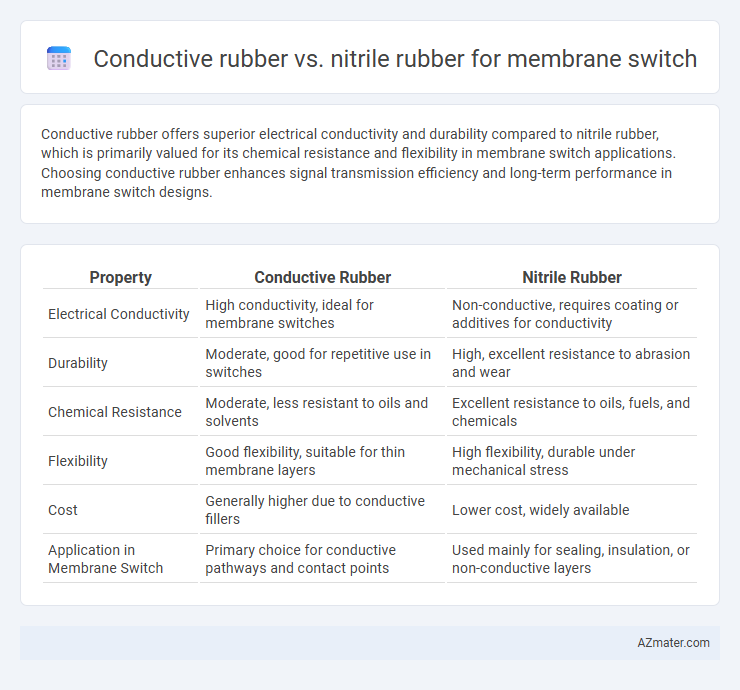

Infographic: Conductive rubber vs Nitrile rubber for Membrane switch
