azmater.com Polyvinylidene fluoride (PVDF) offers superior chemical resistance and UV stability for electronic housing compared to Acrylonitrile butadiene styrene (ABS), which provides higher impact resistance and cost-effectiveness. PVDF's excellent dielectric properties make it ideal for high-performance electronics requiring durability and insulation.
Table of Comparison
| Property | Polyvinylidene Fluoride (PVDF) | Acrylonitrile Butadiene Styrene (ABS) |
|---|---|---|
| Chemical Resistance | Excellent; resistant to acids, bases, and solvents | Moderate; vulnerable to some chemicals and solvents |
| Thermal Stability | High; operating temperature up to 150degC | Moderate; operating temperature up to 100degC |
| Mechanical Strength | High tensile strength and toughness | Good strength but less durable than PVDF |
| UV Resistance | Excellent; suitable for outdoor electronic housings | Poor; degrades under prolonged UV exposure |
| Electrical Insulation | Superior dielectric properties | Good dielectric properties |
| Flammability | UL 94 V-0 rated; flame retardant | Typically UL 94 HB; less flame resistant |
| Cost | Higher; premium material cost | Lower; cost-effective for mass production |
| Application Suitability | High-performance electronic housings needing chemical and thermal resistance | General-purpose housings with moderate requirements |
Introduction to Polyvinylidene Fluoride and Acrylonitrile Butadiene Styrene
Polyvinylidene fluoride (PVDF) is a high-performance fluoropolymer known for its excellent chemical resistance, thermal stability up to 150degC, and superior electrical insulation properties, making it ideal for demanding electronic housing applications. Acrylonitrile butadiene styrene (ABS) is a thermoplastic polymer valued for its impact resistance, ease of molding, and cost-effectiveness, commonly used in electronic housings requiring good mechanical strength and aesthetic finish. While PVDF offers enhanced durability against harsh environments, ABS provides versatility and lightweight characteristics, influencing material selection based on specific electronic housing requirements.
Material Composition and Chemical Structure
Polyvinylidene fluoride (PVDF) is a fluoropolymer composed of repeating vinylidene fluoride units (-CH2-CF2-) characterized by strong carbon-fluorine bonds that provide high chemical resistance and excellent dielectric properties. Acrylonitrile butadiene styrene (ABS) is a terpolymer formed from acrylonitrile, butadiene, and styrene, offering a balanced combination of toughness and impact resistance due to its rubbery butadiene phase and rigid styrene-acrylonitrile matrix. The chemical structure of PVDF enables superior resistance to solvents and UV degradation, making it ideal for harsh electronic environments, whereas ABS's composition delivers ease of molding and cost-effectiveness but with lower chemical and thermal resistance.
Mechanical Properties: Strength and Durability
Polyvinylidene fluoride (PVDF) offers superior chemical resistance and mechanical strength, making it highly durable for electronic housing applications requiring long-term stability. Acrylonitrile butadiene styrene (ABS) provides excellent impact resistance and toughness but can degrade under UV exposure and harsh chemicals, limiting its durability in certain environments. PVDF's higher tensile strength and resistance to environmental stress cracking make it a preferred choice for high-performance, durable electronic housings.
Thermal Stability and Heat Resistance
Polyvinylidene fluoride (PVDF) offers superior thermal stability and heat resistance compared to Acrylonitrile Butadiene Styrene (ABS), with a continuous service temperature up to 150degC versus ABS's limit around 80-100degC. PVDF maintains mechanical integrity under prolonged exposure to elevated temperatures, making it ideal for high-performance electronic housings requiring durability in harsh environments. Its excellent resistance to thermal degradation and flame retardancy enhances safety and longevity in electronic applications where heat dissipation is critical.
Electrical Insulation Performance
Polyvinylidene fluoride (PVDF) offers superior electrical insulation performance compared to Acrylonitrile Butadiene Styrene (ABS) due to its high dielectric strength and excellent resistance to electrical tracking and arc degradation. PVDF's low dielectric constant and loss tangent ensure minimal signal interference and reliable insulation in high-voltage electronic housing applications. In contrast, ABS has moderate electrical insulation properties but is more prone to surface tracking and lower thermal stability, making PVDF preferable for demanding electronic enclosure environments.
Chemical and Environmental Resistance
Polyvinylidene fluoride (PVDF) offers superior chemical resistance, withstanding strong acids, bases, and solvents commonly encountered in electronic housing applications, making it ideal for harsh chemical environments. Acrylonitrile butadiene styrene (ABS), while providing good impact resistance and ease of fabrication, is less resistant to chemicals and can degrade when exposed to aggressive solvents or UV radiation. PVDF also exhibits excellent environmental resistance, including high UV stability and low moisture absorption, ensuring long-lasting durability in outdoor or humid conditions compared to the more vulnerable ABS.
Processability and Manufacturing Ease
Polyvinylidene fluoride (PVDF) offers superior chemical resistance and thermal stability for electronic housing but poses challenges in processing due to its higher melting point and slower flow characteristics during injection molding. Acrylonitrile butadiene styrene (ABS) excels in manufacturing ease with better melt flow rates, enabling faster cycle times and more complex geometries at lower processing temperatures. The choice between PVDF and ABS hinges on balancing PVDF's durability advantages against ABS's more efficient processing and manufacturability in large-scale electronic enclosure production.
Cost Comparison and Market Availability
Polyvinylidene fluoride (PVDF) offers superior chemical resistance and thermal stability for electronic housing but comes at a higher cost compared to Acrylonitrile Butadiene Styrene (ABS), which is favored for its affordability and ease of processing. ABS dominates market availability due to widespread manufacturing and application in consumer electronics, while PVDF remains niche, primarily used in specialized environments requiring enhanced durability. Cost-effective mass production of ABS drives its market prevalence, whereas PVDF's price premium limits its use to high-performance electronic housings in demanding industrial sectors.
Application Suitability in Electronic Housing
Polyvinylidene fluoride (PVDF) offers superior chemical resistance, UV stability, and higher temperature tolerance, making it ideal for harsh environments and outdoor electronic housings. Acrylonitrile butadiene styrene (ABS) provides excellent impact resistance, ease of fabrication, and cost-effectiveness, suited for consumer electronics and indoor housing applications. PVDF excels in high-performance applications requiring durability against solvents and heat, while ABS is preferred for general-purpose enclosures with moderate mechanical and thermal demands.
Conclusion: Choosing the Ideal Material for Electronic Enclosures
Polyvinylidene fluoride (PVDF) offers superior chemical resistance, UV stability, and high mechanical strength, making it ideal for harsh environmental conditions in electronic housings. Acrylonitrile butadiene styrene (ABS) provides excellent impact resistance, ease of fabrication, and cost-effectiveness, suitable for general-purpose electronic enclosures. Selecting between PVDF and ABS depends on specific application requirements such as environmental exposure, durability, and budget constraints to ensure optimal protection and longevity of electronic devices.

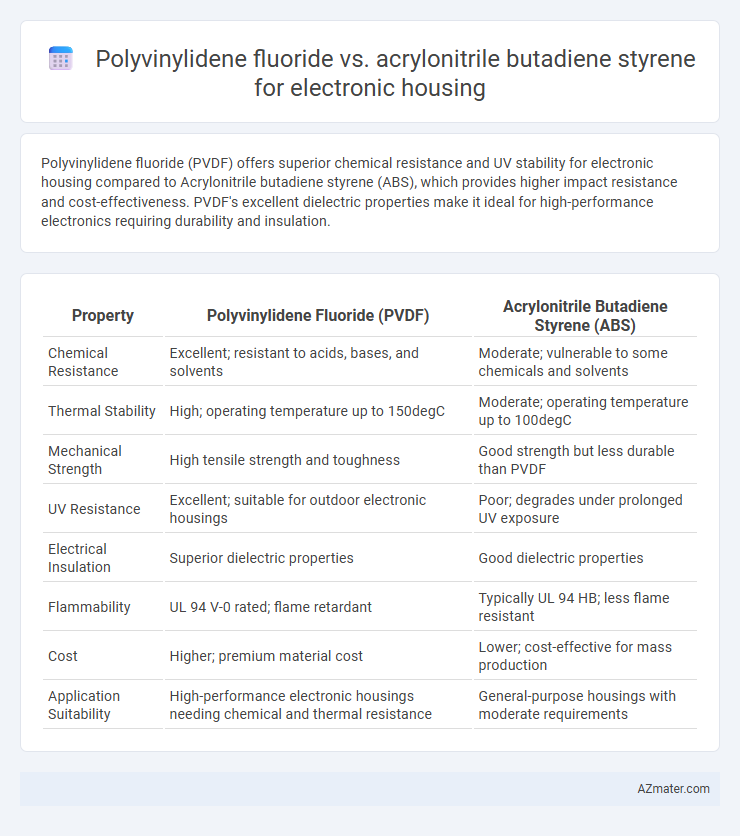

Infographic: Polyvinylidene fluoride vs Acrylonitrile butadiene styrene for Electronic housing
