azmater.com Polyether ether ketone (PEEK) offers superior thermal stability and chemical resistance compared to polyphenylene sulfide (PPS), making it ideal for high-performance electronic components. PPS provides excellent dimensional stability and cost-effectiveness but has lower temperature resistance than PEEK, limiting its use in extreme conditions.
Table of Comparison
| Property | Polyether Ether Ketone (PEEK) | Polyphenylene Sulfide (PPS) |
|---|---|---|
| Thermal Stability | Continuous use up to 250degC, short-term > 300degC | Continuous use up to 200degC |
| Chemical Resistance | Excellent resistance to solvents and acids | Good resistance, but less than PEEK in strong acids |
| Mechanical Strength | High tensile strength (90-100 MPa) | Moderate tensile strength (70-80 MPa) |
| Electrical Properties | Low dielectric constant (3.2), low dissipation factor | Moderate dielectric constant (3.1), good insulation |
| Moisture Absorption | Low moisture absorption (~0.2%) | Very low moisture absorption (~0.05%) |
| Cost | High cost, premium material | Lower cost than PEEK |
| Typical Applications | High-performance electronic components, connectors, insulators | Electronic housings, resistors, circuit boards |
Introduction to PEEK and PPS in Electronics
Polyether ether ketone (PEEK) and polyphenylene sulfide (PPS) are high-performance thermoplastics widely used in electronic components due to their excellent thermal stability and chemical resistance. PEEK offers exceptional mechanical strength and continuous service temperatures up to 260degC, making it ideal for demanding electronic environments requiring durability and lightweight properties. PPS provides strong dimensional stability, low moisture absorption, and inherent flame retardancy, enhancing its suitability for connectors, coils, and housings in electrical systems.
Chemical Structure Comparison: PEEK vs PPS
Polyether ether ketone (PEEK) features a repeating ketone and ether groups in its backbone, providing high thermal stability and chemical resistance ideal for electronic component insulation. Polyphenylene sulfide (PPS) contains sulfur atoms linking phenylene rings, resulting in excellent dimensional stability and resistance to aggressive chemicals commonly encountered in electronic environments. The ketone groups in PEEK contribute to stronger intermolecular bonding than the sulfide linkages in PPS, influencing mechanical strength and thermal endurance in electronic applications.
Thermal Stability and Heat Resistance
Polyether ether ketone (PEEK) exhibits superior thermal stability with a melting point around 343degC and continuous use temperatures up to 250degC, making it ideal for high-temperature electronic components. Polyphenylene sulfide (PPS) offers excellent heat resistance as well, with a melting point near 285degC and continuous use temperatures typically up to 200degC, but generally lower than PEEK's thermal limits. The enhanced thermal and mechanical durability of PEEK supports demanding applications requiring prolonged exposure to elevated temperatures in electronic components.
Mechanical Strength and Durability
Polyether ether ketone (PEEK) exhibits superior mechanical strength and exceptional durability compared to polyphenylene sulfide (PPS), making it ideal for high-stress electronic components requiring long-term reliability. PEEK offers a tensile strength of around 90-100 MPa and outstanding resistance to wear, fatigue, and high temperatures up to 250degC, whereas PPS typically shows tensile strength near 70 MPa and lower thermal stability around 200degC. The enhanced dimensional stability and chemical resistance of PEEK contribute to its preference in demanding electronic environments where mechanical resilience and extended service life are critical.
Electrical Properties and Insulation Performance
Polyether ether ketone (PEEK) exhibits superior dielectric strength up to 20 kV/mm and maintains excellent electrical insulation under high thermal stress, making it ideal for advanced electronic components requiring reliable performance in harsh environments. Polyphenylene sulfide (PPS) offers good electrical insulation with dielectric constants around 3.0 and dissipation factors below 0.01, supporting stable electrical performance in moderate temperature applications. Both materials provide low moisture absorption, but PEEK's higher thermal stability and superior electrical resistivity above 10^15 ohm-cm make it the preferred choice for high-performance electronic insulation.
Resistance to Chemicals and Solvents
Polyether ether ketone (PEEK) exhibits superior resistance to chemicals and solvents, maintaining stability against acids, bases, and hydrocarbons, which makes it an excellent choice for electronic components exposed to harsh environments. Polyphenylene sulfide (PPS) also offers good chemical resistance but tends to degrade faster when exposed to strong oxidizing agents and concentrated acids, limiting its use in more aggressive chemical settings. The high chemical inertness of PEEK ensures longer durability and reliability in electronic applications requiring exposure to aggressive solvents and cleaning agents.
Processability and Manufacturing Considerations
Polyether ether ketone (PEEK) offers superior processability for electronic components due to its high thermal stability and chemical resistance, allowing for precise molding and machining without degradation. In comparison, Polyphenylene sulfide (PPS) provides excellent dimensional stability and lower moisture absorption, which benefits long-term electrical performance but can pose challenges in injection molding due to its higher melt viscosity. Manufacturing considerations favor PEEK when complex geometries and tight tolerances are required, while PPS is preferable for cost-effective mass production with simpler designs.
Cost Analysis: PEEK vs PPS
Polyether ether ketone (PEEK) typically incurs higher upfront costs compared to Polyphenylene sulfide (PPS) due to its superior thermal stability, chemical resistance, and mechanical strength, making it ideal for high-performance electronic components. PPS offers a cost-effective solution with adequate thermal properties and dimensional stability for many standard electronic applications, resulting in lower material and processing expenses. Evaluating total cost of ownership involves balancing PEEK's premium pricing against PPS's affordability and performance suitability in specific electronic component environments.
Application Examples in Electronic Components
Polyether ether ketone (PEEK) is widely used in electronic components such as connectors, insulators, and cable housings due to its excellent thermal stability up to 260degC and outstanding mechanical strength. Polyphenylene sulfide (PPS) is preferred for applications like circuit board housings, capacitor supports, and motor insulation, benefiting from its chemical resistance and dimensional stability under high humidity and temperature conditions. Both polymers enhance the reliability of electronic components in automotive, aerospace, and consumer electronics by providing durable, high-performance insulating materials.
Choosing the Right Material for Electronic Designs
Polyether ether ketone (PEEK) offers exceptional thermal stability, chemical resistance, and mechanical strength, making it ideal for high-performance electronic components subjected to extreme environments. Polyphenylene sulfide (PPS) provides excellent dimensional stability, flame retardancy, and moisture resistance, suitable for cost-effective and durable electronic housings. Selecting the right material depends on balancing operational temperature ranges, exposure to chemicals, and mechanical requirements to ensure reliability and longevity in electronic designs.

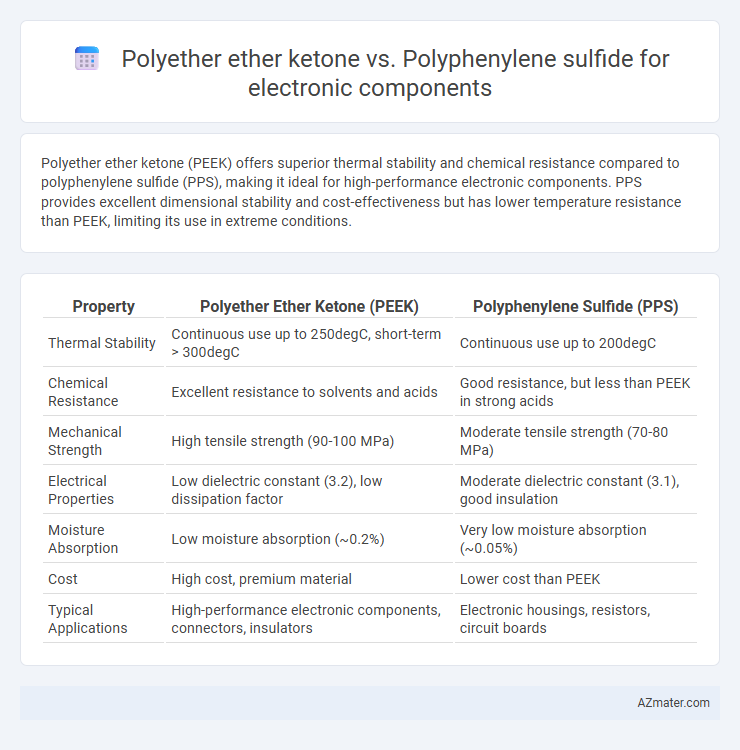

Infographic: Polyether ether ketone vs Polyphenylene sulfide for Electronic Component
