azmater.com Liquid crystal polymer (LCP) offers superior thermal stability, chemical resistance, and dielectric properties compared to polybutylene terephthalate (PBT), making LCP ideal for high-performance electrical insulators. PBT provides good mechanical strength and cost-effectiveness but exhibits lower temperature tolerance and dielectric constant than LCP in electrical insulation applications.
Table of Comparison
| Property | Liquid Crystal Polymer (LCP) | Polybutylene Terephthalate (PBT) |
|---|---|---|
| Thermal Stability | High, withstands up to 300degC | Moderate, max 150-200degC |
| Dielectric Strength | Excellent, 50-70 kV/mm | Good, 20-40 kV/mm |
| Moisture Absorption | Low, <0.1% | Higher, 0.2-0.5% |
| Mechanical Strength | Very high tensile strength and rigidity | Good impact resistance and toughness |
| Dimensional Stability | Exceptional, minimal shrinkage | Moderate shrinkage |
| Chemical Resistance | Excellent against solvents and acids | Good, less resistant to strong chemicals |
| Processing | More complex, requires precise conditions | Easy, standard injection molding |
| Cost | Higher price range | Cost-effective |
| Common Applications | High-performance electrical insulators, connectors, PCBs | General electrical housings, insulators, automotive parts |
Introduction to Liquid Crystal Polymer and Polybutylene Terephthalate
Liquid Crystal Polymer (LCP) is a high-performance polymer known for its exceptional electrical insulation properties, thermal stability, and chemical resistance, making it ideal for advanced electrical insulator applications. Polybutylene Terephthalate (PBT) is a semi-crystalline thermoplastic polyester with good electrical insulation capabilities, mechanical strength, and moisture resistance, commonly used in electrical and automotive components. The molecular structure of LCP provides superior dimensional stability and low dielectric constant compared to PBT, which offers cost-effectiveness and ease of processing in electrical insulation tasks.
Material Structure and Chemical Properties
Liquid crystal polymer (LCP) exhibits a highly ordered molecular structure with rigid rod-like molecules that align to form strong intermolecular bonds, providing exceptional dimensional stability and low thermal expansion, essential for precise electrical insulators. Polybutylene terephthalate (PBT) features a semi-crystalline polyester structure with flexible molecular chains, offering good mechanical strength and moderate thermal resistance but higher moisture absorption compared to LCP. Chemically, LCP demonstrates superior chemical resistance to solvents and acids, while PBT is more susceptible to hydrolysis and environmental degradation, impacting long-term performance in electrical insulation applications.
Electrical Insulation Performance
Liquid crystal polymers (LCPs) exhibit superior electrical insulation performance due to their high dielectric strength, low dielectric constant, and excellent thermal stability, making them ideal for high-frequency and high-voltage applications. Polybutylene terephthalate (PBT), while offering good dielectric properties and moisture resistance, generally has lower electrical insulation capabilities compared to LCPs, especially under elevated temperature conditions. LCPs maintain consistent electrical insulating properties with minimal dielectric loss across a broad temperature range, outperforming PBT in demanding electrical environments.
Thermal Stability and Heat Resistance
Liquid crystal polymer (LCP) exhibits superior thermal stability and heat resistance compared to polybutylene terephthalate (PBT), maintaining mechanical properties at temperatures above 260degC, whereas PBT typically degrades near 150-180degC. LCP's high melting point, often exceeding 280degC, makes it ideal for electrical insulators subjected to continuous high-temperature environments. In contrast, PBT's lower thermal endurance limits its application in high-heat electrical insulation, although it offers good dimensional stability and dielectric properties at moderate temperatures.
Mechanical Strength and Durability
Liquid crystal polymer (LCP) exhibits superior mechanical strength and durability compared to polybutylene terephthalate (PBT) when used as electrical insulators, maintaining dimensional stability under high thermal stress and mechanical loads. LCP offers exceptional resistance to wear, fatigue, and chemical exposure, ensuring longer operational life in demanding electrical environments. PBT, while cost-effective and moderately durable, typically falls short in high-performance applications due to its lower tensile strength and susceptibility to moisture absorption.
Dielectric Properties Comparison
Liquid crystal polymer (LCP) exhibits superior dielectric properties compared to polybutylene terephthalate (PBT), including a lower dielectric constant typically around 3.0, which enhances electrical insulation and signal integrity. LCP offers a high dielectric strength exceeding 100 kV/mm, surpassing PBT's average range of 40-60 kV/mm, making it more effective for high-voltage insulation applications. Its minimal moisture absorption also maintains consistent dielectric performance under varying environmental conditions, unlike PBT which may experience dielectric property degradation when exposed to humidity.
Processing and Fabrication Techniques
Liquid crystal polymer (LCP) offers superior processing advantages over polybutylene terephthalate (PBT) for electrical insulators due to its low melt viscosity and excellent flow characteristics, enabling high-precision molding and intricate geometries. PBT requires higher processing temperatures and longer cycle times, which can increase the risk of thermal degradation and dimensional instability in fabricated components. Injection molding and extrusion are common for both materials, but LCP's rapid solidification and anisotropic molecular alignment provide enhanced mechanical strength and dielectric properties critical for high-performance electrical insulation.
Cost Efficiency and Market Availability
Liquid crystal polymer (LCP) offers superior electrical insulation properties and higher thermal stability compared to polybutylene terephthalate (PBT), but its cost efficiency is lower due to higher raw material and processing expenses. PBT remains more cost-effective and widely available in the electrical insulator market, benefiting from established supply chains and mass production. Market availability favors PBT for large-scale applications, while LCP serves niche, high-performance insulation needs where enhanced durability justifies the premium price.
Application Suitability in Electrical Insulation
Liquid crystal polymer (LCP) exhibits superior electrical insulation properties due to its high thermal stability, low dielectric constant, and excellent flame resistance, making it ideal for high-frequency and high-temperature applications such as connectors and circuit boards. Polybutylene terephthalate (PBT) offers good electrical insulation with moderate thermal resistance and better mechanical toughness, suitable for housings and components exposed to mechanical stress and moderate heat. LCP is preferred in advanced electronic devices requiring miniaturization and thermal endurance, while PBT provides a cost-effective choice for conventional electrical insulators with balanced electrical and mechanical performance.
Summary and Recommended Material for Electrical Insulators
Liquid crystal polymer (LCP) offers superior thermal stability, excellent dielectric properties, and high chemical resistance compared to polybutylene terephthalate (PBT), making it more suitable for demanding electrical insulation applications. PBT provides good mechanical strength and electrical insulation at a lower cost but falls short in high-temperature environments and long-term thermal aging resistance. For high-performance electrical insulators requiring durability under heat and chemical exposure, liquid crystal polymer is the recommended material.

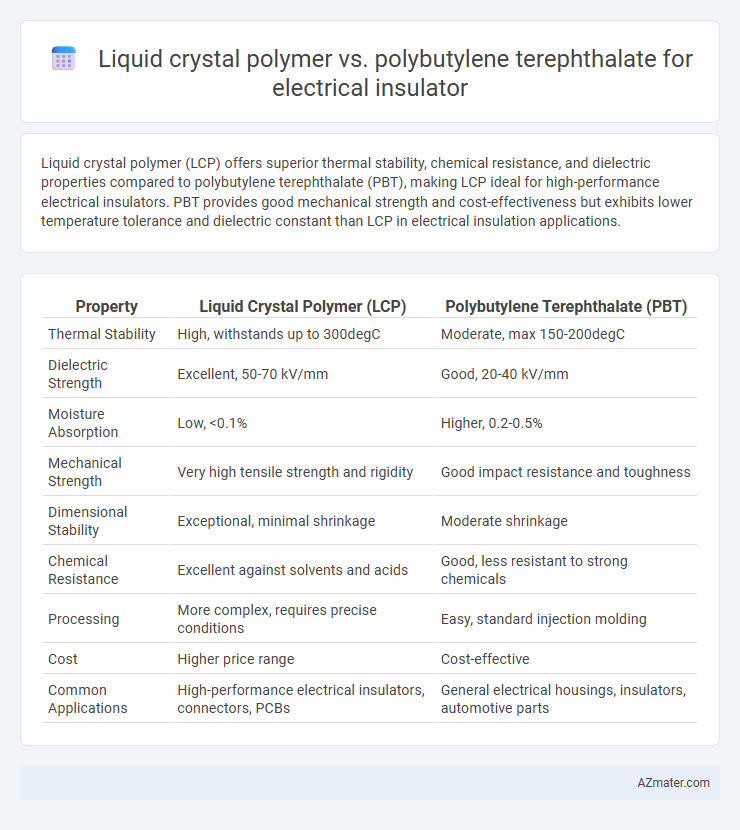

Infographic: Liquid crystal polymer vs Polybutylene terephthalate for Electrical insulator
