azmater.com Liquid crystal polymer (LCP) offers superior thermal stability and low moisture absorption compared to polybutylene terephthalate (PBT), making it ideal for high-performance electrical connectors. LCP's excellent dimensional stability and chemical resistance enhance connector durability in harsh environments.
Table of Comparison
| Property | Liquid Crystal Polymer (LCP) | Polybutylene Terephthalate (PBT) |
|---|---|---|
| Thermal Stability | High (up to 280degC continuous use) | Moderate (up to 150degC continuous use) |
| Mechanical Strength | Excellent tensile strength and stiffness | Good strength with moderate stiffness |
| Moisture Absorption | Low moisture absorption (<0.1%) | Higher moisture absorption (1.5-2.0%) |
| Chemical Resistance | Superior resistance to solvents and chemicals | Good resistance but less than LCP |
| Electrical Properties | Excellent dielectric constant and low loss | Good dielectric properties but higher loss |
| Dimensional Stability | Exceptional, minimal warpage | Moderate, prone to slight warpage |
| Processing | Complex molding, higher cost | Easy molding, cost-effective |
| Typical Applications | High-performance electrical connectors, precision components | Standard electrical connectors, housings |
Introduction to Liquid Crystal Polymer and Polybutylene Terephthalate
Liquid Crystal Polymer (LCP) is a high-performance thermoplastic known for its exceptional mechanical strength, chemical resistance, and dimensional stability, making it ideal for precision electrical connectors requiring minimal warpage and high thermal resistance. Polybutylene Terephthalate (PBT) is a semi-crystalline polyester with good electrical insulation properties, moderate chemical resistance, and cost-effectiveness, commonly used in electrical connectors where toughness and ease of molding are priorities. Both materials offer unique advantages in electrical connector applications, with LCP excelling in high-temperature environments and PBT providing reliable performance in general-purpose usage.
Material Overview: LCP vs PBT
Liquid crystal polymer (LCP) offers exceptional mechanical strength, chemical resistance, and high thermal stability, making it ideal for high-performance electrical connectors exposed to harsh environments. Polybutylene terephthalate (PBT) provides good dimensional stability and electrical insulation properties but has lower heat resistance and mechanical strength compared to LCP. LCP's low dielectric constant and minimal moisture absorption enhance signal integrity and reliability in advanced connector applications, whereas PBT is commonly chosen for cost-effectiveness in less demanding environments.
Mechanical Strength Comparison
Liquid crystal polymer (LCP) exhibits superior mechanical strength compared to polybutylene terephthalate (PBT), with higher tensile strength and enhanced dimensional stability under thermal stress, making LCP ideal for electrical connectors requiring durability and precision. LCP also demonstrates better impact resistance and fatigue performance, ensuring long-lasting mechanical integrity in harsh operating environments. In contrast, PBT offers moderate mechanical strength but tends to deform more under continuous load or elevated temperatures, limiting its application in high-stress connector components.
Thermal Stability and Operating Temperatures
Liquid crystal polymer (LCP) offers superior thermal stability with continuous operating temperatures up to 260degC, making it ideal for high-temperature electrical connector applications. Polybutylene terephthalate (PBT) typically withstands continuous temperatures up to 120degC, limiting its use in environments requiring extreme heat resistance. The enhanced thermal endurance of LCP ensures reliable performance and prolonged lifespan in demanding electrical connector environments compared to PBT.
Electrical Properties and Insulation Performance
Liquid crystal polymers (LCP) exhibit superior electrical properties for electrical connectors, including low dielectric constants and dissipation factors, which enhance signal integrity and reduce electromagnetic interference. Polybutylene terephthalate (PBT) offers good electrical insulation and moderate dielectric strength but typically underperforms compared to LCP in high-frequency applications. LCP's excellent insulation performance, combined with high thermal stability and moisture resistance, makes it the preferred material for connectors requiring reliable electrical isolation under demanding conditions.
Chemical Resistance and Environmental Durability
Liquid crystal polymer (LCP) offers superior chemical resistance compared to polybutylene terephthalate (PBT), effectively withstanding exposure to harsh solvents, acids, and alkalis commonly encountered in electrical connector environments. LCP exhibits excellent environmental durability with high thermal stability, low moisture absorption, and resistance to ultraviolet (UV) radiation, ensuring reliable performance in extreme temperature and humidity conditions. In contrast, PBT is more susceptible to chemical degradation and moisture uptake, which can compromise mechanical integrity and electrical insulation over time in demanding applications.
Processability and Molding Characteristics
Liquid crystal polymer (LCP) exhibits superior processability for electrical connectors due to its low melt viscosity and excellent flow characteristics, enabling precise molding of intricate geometries and fine features. Polybutylene terephthalate (PBT) offers good moldability with stable dimensional accuracy but generally requires higher processing temperatures and may face challenges with complex designs due to its higher melt viscosity. The choice between LCP and PBT largely depends on the required connector complexity, with LCP preferred for high-precision, high-performance applications and PBT suited for cost-effective, less intricate components.
Cost Analysis: LCP vs PBT in Connector Applications
Liquid crystal polymer (LCP) offers superior thermal stability and mechanical strength compared to polybutylene terephthalate (PBT), often justifying its higher price in electrical connector applications. While PBT has a lower material cost, LCP's enhanced durability and resistance to high temperatures can reduce long-term maintenance and replacement expenses. Total cost analysis should consider lifecycle performance, with LCP providing better reliability for high-performance connectors despite initial cost premiums.
Typical Applications in Electrical Connector Design
Liquid crystal polymer (LCP) offers exceptional dimensional stability and high-temperature resistance, making it ideal for high-performance electrical connectors requiring miniaturization and precise tolerance control. Polybutylene terephthalate (PBT) is typically chosen for electrical connectors that demand good electrical insulation, chemical resistance, and cost efficiency in automotive and consumer electronics applications. LCP is preferred in applications such as high-frequency connectors and aerospace-grade components, whereas PBT suits connectors in household appliances and industrial equipment.
Selection Guidelines: Choosing Between LCP and PBT
Liquid crystal polymer (LCP) offers superior dimensional stability, high heat resistance up to 260degC, and excellent chemical resistance, making it ideal for electrical connectors in harsh environments or applications requiring tight tolerances. Polybutylene terephthalate (PBT) provides good electrical insulation, moderate heat resistance around 150degC, and cost-effectiveness for general-purpose connectors operating under less extreme conditions. Selection between LCP and PBT depends on factors such as operating temperature, mechanical stress, chemical exposure, and cost constraints, with LCP preferred for high-performance needs and PBT suitable for standard electrical connector applications.

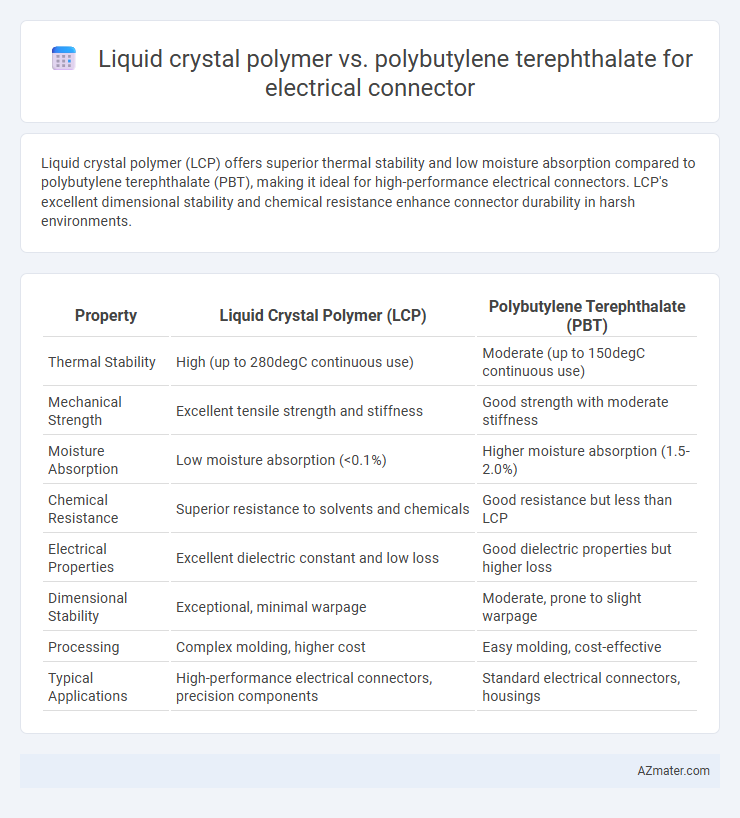

Infographic: Liquid crystal polymer vs Polybutylene terephthalate for Electrical Connector
