azmater.com Liquid crystal polymer (LCP) offers superior thermal stability, chemical resistance, and dimensional stability compared to polyamide, making it ideal for high-performance electrical connectors. Polyamide provides excellent impact resistance and flexibility but has lower heat resistance and moisture absorption properties than LCP in connector applications.
Table of Comparison
| Property | Liquid Crystal Polymer (LCP) | Polyamide (PA) |
|---|---|---|
| Thermal Stability | High, withstands up to 300degC | Moderate, typically up to 150degC |
| Mechanical Strength | Excellent tensile strength and stiffness | Good strength but lower stiffness than LCP |
| Moisture Absorption | Minimal, < 0.5% | High, up to 8% |
| Chemical Resistance | Resistant to acids, bases, and solvents | Moderate resistance, vulnerable to hydrolysis |
| Electrical Properties | Superior dielectric strength and insulation | Good dielectric properties but lower than LCP |
| Dimensional Stability | Excellent under high heat and humidity | Prone to swelling and deformation |
| Processing | Precision molding with low shrinkage | Easier molding but higher shrinkage rates |
| Cost | Higher, due to advanced properties | Lower, widely available |
| Typical Applications | High-performance electrical connectors, aerospace, medical | General electrical connectors, automotive, consumer goods |
Introduction to Liquid Crystal Polymer (LCP) and Polyamide (PA)
Liquid Crystal Polymer (LCP) is a high-performance thermoplastic known for its exceptional chemical resistance, dimensional stability, and superior electrical insulating properties, making it ideal for precision electrical connectors requiring high frequency signal transmission. Polyamide (PA), commonly referred to as nylon, offers good mechanical strength, flexibility, and resistance to abrasion and impact, but typically exhibits higher moisture absorption and lower thermal stability compared to LCP. When selecting materials for electrical connectors, LCP often outperforms PA in environments demanding high heat resistance and minimal dielectric loss.
Material Properties Comparison: LCP vs Polyamide
Liquid crystal polymer (LCP) offers superior dimensional stability, low moisture absorption, and high thermal resistance compared to polyamide, making it ideal for high-performance electrical connectors operating in harsh environments. Polyamide, while providing good mechanical strength and flexibility, exhibits higher water uptake and lower heat resistance, which can affect connector durability and electrical insulation under elevated temperatures. The inherent chemical resistance and low dielectric constant of LCP contribute to enhanced signal integrity and long-term reliability in electrical applications, outperforming polyamide-based connectors.
Mechanical Strength and Durability: Which Performs Better?
Liquid crystal polymer (LCP) offers superior mechanical strength and durability compared to polyamide in electrical connectors due to its high tensile strength, excellent dimensional stability, and resistance to fatigue under stress. LCP's molecular alignment provides exceptional resistance to wear, chemicals, and thermal degradation, ensuring long-term performance in harsh electrical environments. Polyamide, while cost-effective and flexible, generally exhibits lower mechanical strength and is more prone to moisture absorption, which can compromise its durability in demanding applications.
Thermal Stability in Electrical Connector Applications
Liquid crystal polymer (LCP) exhibits superior thermal stability compared to polyamide in electrical connector applications, withstanding continuous operating temperatures up to 260degC without significant deformation. Polyamide typically endures lower maximum temperatures, around 150degC to 180degC, risking structural integrity and reliability under high-heat conditions. The higher glass transition temperature and low thermal expansion coefficient of LCP make it ideal for maintaining performance and dimensional stability in demanding thermal environments.
Electrical Performance and Insulation Characteristics
Liquid crystal polymer (LCP) offers superior electrical performance in connectors due to its low dielectric constant and dissipation factor, resulting in minimal signal loss and high-frequency stability. Polyamide, while providing good insulation properties, has higher moisture absorption that can degrade its dielectric strength over time and negatively affect insulation reliability. The exceptional thermal stability and low moisture uptake of LCP make it ideal for high-performance electrical connectors requiring consistent insulation characteristics under demanding conditions.
Resistance to Chemicals and Environmental Factors
Liquid crystal polymers (LCPs) exhibit superior resistance to harsh chemicals, including acids, bases, and solvents, making them highly reliable for electrical connectors exposed to aggressive environments. Polyamides offer good chemical resistance but tend to absorb moisture, which can compromise their mechanical properties and electrical insulation performance over time. LCPs also provide excellent stability against environmental factors such as temperature fluctuations and UV exposure, ensuring long-term durability in demanding electrical applications.
Processing and Manufacturability Differences
Liquid crystal polymer (LCP) offers superior dimensional stability and low moisture absorption compared to polyamide, enabling highly precise and compact electrical connector designs. LCP's high melting point and chemical resistance require specialized processing techniques such as high-temperature injection molding, which ensures fine-feature replication but demands stringent thermal control. In contrast, polyamide allows more conventional molding and machining processes due to its lower melting temperature and greater flexibility, resulting in easier manufacturability but less stability in high-performance electrical connector applications.
Cost Analysis: LCP vs Polyamide for Electrical Connectors
Liquid crystal polymer (LCP) offers higher material costs than polyamide but delivers superior thermal stability, mechanical strength, and chemical resistance, potentially reducing long-term maintenance and replacement expenses in electrical connectors. Polyamide provides a cost-effective solution with lower initial investment, suitable for applications with moderate performance requirements and less demanding environmental conditions. Evaluating total cost of ownership, including production, lifecycle durability, and performance under electrical and thermal stress, is critical in selecting between LCP and polyamide for connector manufacturing.
Industry Use Cases and Application Examples
Liquid crystal polymer (LCP) offers superior mechanical strength, chemical resistance, and dimensional stability under high temperatures, making it ideal for high-frequency electrical connectors in automotive radar systems and aerospace applications. Polyamide, known for its flexibility, good insulation properties, and cost-effectiveness, is widely used in consumer electronics, telecommunications, and industrial automation connectors where moderate thermal resistance is sufficient. Industry use cases highlight LCP's prevalence in advanced military and medical connectors requiring precision and durability, while polyamide dominates mass-produced connectors in household appliances and office equipment.
Selecting the Right Material: Key Considerations and Recommendations
Selecting the right material for electrical connectors involves evaluating thermal stability, mechanical strength, and chemical resistance, where Liquid Crystal Polymer (LCP) offers superior dimensional stability and resistance to high temperatures up to 300degC. Polyamide (PA), while offering good flexibility and cost-effectiveness, typically exhibits lower thermal resistance and moisture absorption issues that can affect long-term reliability. For high-performance applications demanding precision and durability, LCP is recommended, whereas Polyamide suits environments with moderate mechanical and thermal demands.

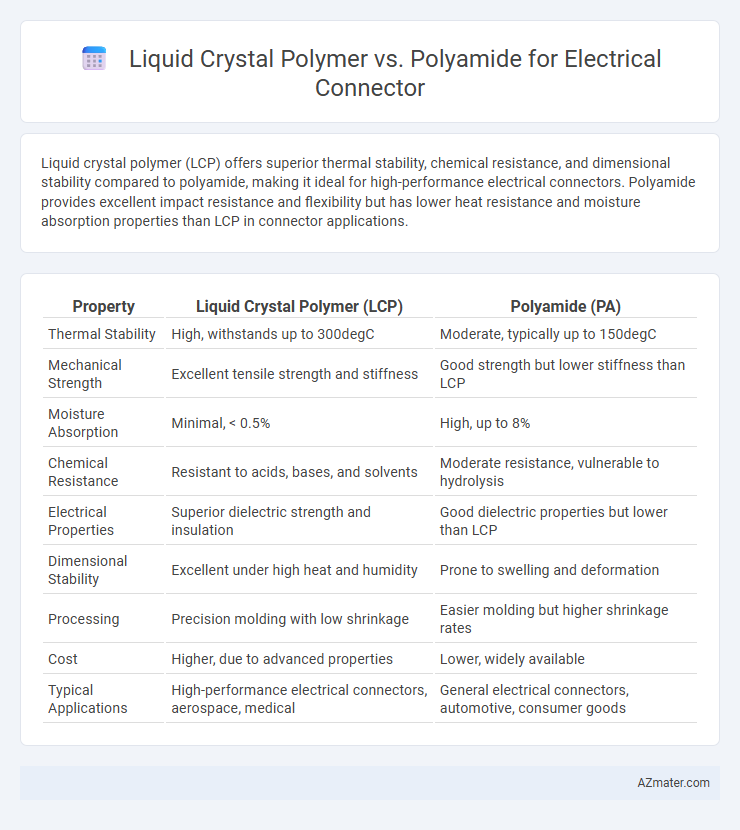

Infographic: Liquid crystal polymer vs Polyamide for Electrical connector
