Bismuth vs. Tin for Solder - What is The Difference?

Bismuth-based solder offers lower melting points and improved thermal fatigue resistance compared to traditional tin solder, making it ideal for sensitive electronic components. Tin solder provides excellent electrical conductivity and mechanical strength, but may cause brittleness issues in thermal cycling applications.

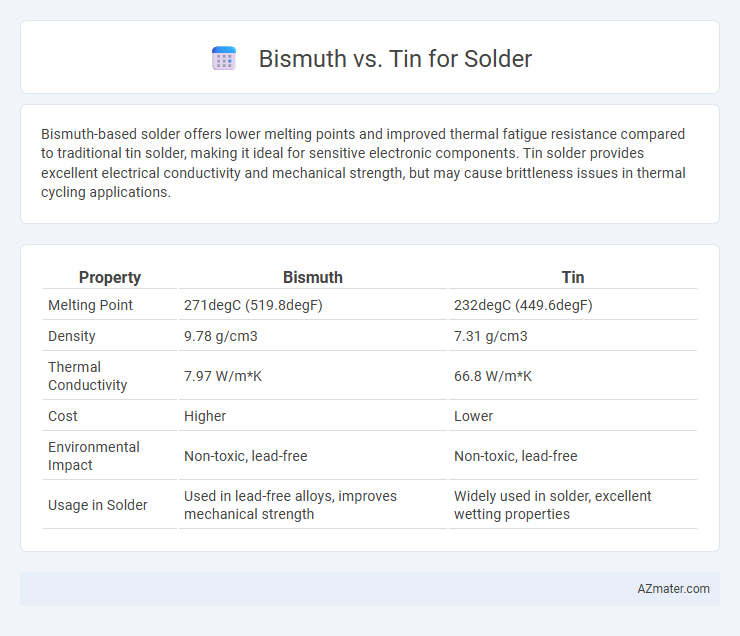

Table of Comparison

Introduction to Bismuth and Tin in Soldering

Bismuth and tin are prominent metals used in soldering due to their favorable melting points and mechanical properties. Bismuth-based solder alloys offer low toxicity and superior thermal fatigue resistance, making them suitable for lead-free applications. Tin, a traditional solder component, provides excellent wetting characteristics and ductility, ensuring reliable electrical connections and mechanical strength.

Physical Properties: Bismuth vs Tin

Bismuth has a melting point of 271.5degC, significantly lower than tin's 231.9degC, making it ideal for low-temperature soldering applications. With a density of 9.78 g/cm3, bismuth is much heavier than tin, which has a density of 7.31 g/cm3, affecting the weight of solder joints in precision electronics. Bismuth also exhibits higher brittleness compared to the ductile and malleable nature of tin, impacting joint reliability under mechanical stress.

Melting Points and Working Temperatures

Bismuth solder typically melts around 138degC to 142degC, offering a lower melting point than tin, which melts at about 232degC. The reduced melting point of bismuth-based solder enables safer soldering on temperature-sensitive components and substrates. Tin solder, with its higher melting point, provides greater thermal endurance during operation but requires higher working temperatures during soldering processes.

Environmental Impact and Toxicity

Bismuth-based solders present a lower environmental impact and reduced toxicity compared to traditional tin-lead alloys, making them a safer alternative for electronics manufacturing. Bismuth is non-toxic, biodegradable, and poses minimal risk during disposal or recycling, whereas excessive tin usage can contribute to environmental concerns due to mining and refining processes. Choosing bismuth solder reduces hazardous waste and supports sustainability initiatives in the electronics industry.

Electrical Conductivity Comparison

Bismuth solder offers lower electrical conductivity compared to tin, which can affect current-carrying efficiency in electronic circuits. Tin, with a higher electrical conductivity of approximately 9.17 x 10^6 S/m, provides better performance for signal integrity and reduced resistive losses. Engineers often select tin-based solder for applications requiring optimal electrical conduction, while bismuth is favored for its low melting point and environmental benefits despite its reduced conductivity.

Mechanical Strength and Brittleness

Bismuth solder alloys typically exhibit lower mechanical strength compared to tin-based solders, resulting in reduced load-bearing capacity in electronic joints. Tin solder offers higher ductility, which decreases brittleness and enhances resistance to cracking under thermal cycling and mechanical stress. The brittle nature of bismuth-rich solders can lead to increased susceptibility to fractures, making tin-based solders preferable for applications demanding durability and mechanical reliability.

Applications: Where Bismuth and Tin Solders Excel

Bismuth solders excel in applications requiring low melting points, such as electronics assembly for heat-sensitive components, due to their superior thermal compatibility and reduced risk of component damage. Tin solders dominate general electronics and plumbing industries, favored for their strong mechanical properties, corrosion resistance, and excellent electrical conductivity. Both metals find specialized usage, with bismuth preferred in lead-free, environmentally-friendly solutions and tin widely utilized in traditional and high-reliability soldering tasks.

Cost and Availability Analysis

Bismuth solder alloys typically cost more than tin-based solders due to the relative scarcity of bismuth and higher extraction expenses, impacting large-scale manufacturing budgets. Tin, abundant and widely produced, offers lower raw material costs and greater availability, making it the preferred choice for cost-sensitive, high-volume soldering applications. Supply chain stability favors tin, as bismuth faces more frequent market fluctuations and limited global supply sources.

Challenges and Limitations of Each Metal

Bismuth solder faces challenges such as brittleness and a lower melting point, which can result in weaker joints under mechanical stress and limited use in high-temperature applications. Tin solder, while widely used for its excellent electrical conductivity and ductility, suffers from issues like tin whisker growth that can lead to short circuits and reliability concerns in electronic assemblies. Both metals require careful alloying and process control to mitigate these limitations and ensure optimal solder joint performance.

Choosing the Right Solder: Bismuth or Tin?

Bismuth solder offers low melting points around 138degC, making it ideal for temperature-sensitive electronics, while tin solder, with a melting point near 232degC, provides superior mechanical strength and conductivity. Choosing the right solder depends on your application's thermal tolerance, electrical requirements, and environmental considerations; bismuth-based alloys suit precision electronics, whereas tin-lead and lead-free tin alloys are preferred for robust electrical connections. Evaluating factors such as melting temperature, joint reliability, and alloy composition ensures optimal performance in electronic soldering projects.
