Silicon nitride vs. mullite for thermocouple protection tube - What is The Difference?

Silicon nitride offers superior thermal shock resistance and mechanical strength compared to mullite, making it ideal for high-temperature thermocouple protection tubes. Mullite provides good thermal stability but lacks the fracture toughness and durability required for extreme industrial environments.

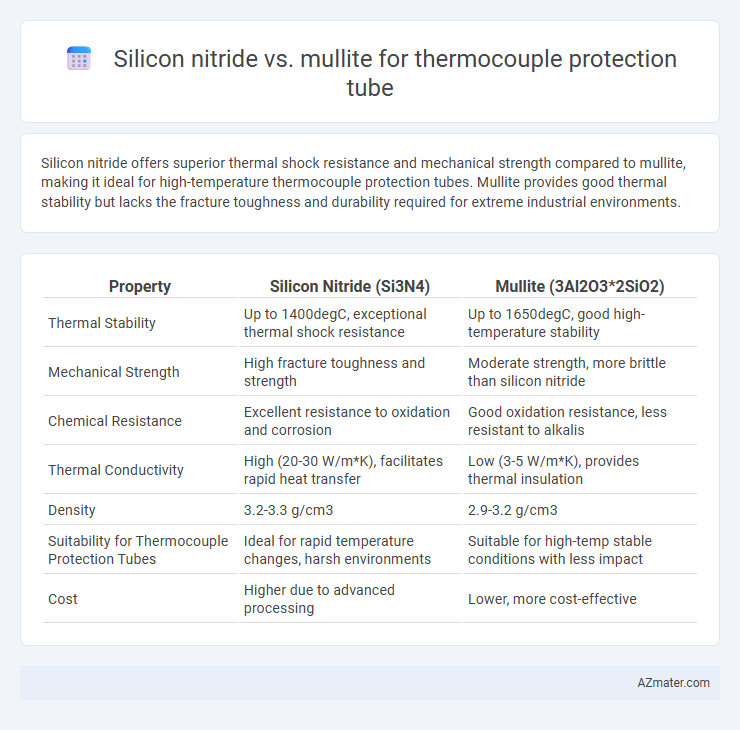

Table of Comparison

Introduction to Thermocouple Protection Tubes

Thermocouple protection tubes are critical components that shield thermocouples from corrosive and high-temperature environments, ensuring accurate temperature measurement and extended sensor life. Silicon nitride offers exceptional thermal shock resistance, high strength, and superior corrosion resistance, making it ideal for harsh industrial applications where durability and reliability are paramount. Mullite, with its excellent high-temperature stability and resistance to chemical attack, provides cost-effective protection in moderately aggressive atmospheres but typically exhibits lower mechanical strength and thermal shock resistance compared to silicon nitride.

Overview of Silicon Nitride Material

Silicon nitride (Si3N4) is a high-performance ceramic renowned for its exceptional mechanical strength, thermal shock resistance, and chemical stability, making it ideal for thermocouple protection tubes in extreme environments. Compared to mullite, silicon nitride offers superior fracture toughness and high-temperature endurance up to 1400degC, ensuring reliable protection in aggressive industrial atmospheres. Its low thermal expansion and high thermal conductivity enhance measurement accuracy and durability in applications like gas turbines and furnaces.

Introduction to Mullite Material

Mullite, a crystalline aluminosilicate ceramic composed primarily of 3Al2O3*2SiO2, is valued for its exceptional thermal stability and resistance to thermal shock, making it ideal for thermocouple protection tubes in high-temperature environments. Its low thermal expansion coefficient and excellent corrosion resistance contribute to maintaining sensor accuracy and longevity under harsh conditions up to approximately 1400degC. Compared to silicon nitride, mullite offers superior insulation properties and cost-effectiveness, though it may exhibit lower mechanical strength and fracture toughness.

Key Thermal Properties Comparison

Silicon nitride offers superior thermal shock resistance and higher maximum operating temperatures up to 1400degC compared to mullite, which is limited to around 1200degC. Silicon nitride's thermal conductivity is typically lower, enhancing its insulating properties, whereas mullite exhibits moderate thermal conductivity useful for stable temperature gradients. The coefficient of thermal expansion for silicon nitride is significantly lower (around 2.8 x 10^-6/K) than mullite (around 5.0 x 10^-6/K), reducing stress and improving durability in thermocouple protection tubes.

Mechanical Strength and Durability

Silicon nitride thermocouple protection tubes exhibit superior mechanical strength with high fracture toughness and excellent resistance to thermal shock compared to mullite, making them ideal for demanding industrial applications. Mullite offers good thermal stability and chemical resistance but has lower tensile strength and is more prone to crack formation under mechanical stress. The enhanced durability of silicon nitride tubes ensures longer service life in harsh environments, reducing maintenance frequency and operational downtime.

Corrosion and Chemical Resistance

Silicon nitride exhibits superior corrosion resistance compared to mullite, effectively withstanding aggressive environments containing molten metals, slags, and acidic gases due to its high chemical inertness and dense microstructure. Mullite, while offering good thermal stability and moderate chemical resistance, is more susceptible to degradation in highly corrosive atmospheres, especially those with strong alkalis or acidic vapors. The enhanced chemical durability of silicon nitride makes it the preferred choice for thermocouple protection tubes in harsh industrial applications requiring prolonged exposure to corrosive chemicals.

Performance in High-Temperature Environments

Silicon nitride exhibits superior thermal shock resistance and higher mechanical strength at temperatures above 1400degC, making it ideal for thermocouple protection tubes in extreme high-temperature environments. Mullite offers excellent chemical stability and oxidation resistance but tends to have lower fracture toughness and can degrade faster under rapid thermal cycling compared to silicon nitride. The enhanced thermal conductivity and durability of silicon nitride ensure more reliable and prolonged performance in demanding industrial applications such as furnace monitoring and gas turbine temperature measurements.

Cost and Economic Considerations

Silicon nitride thermocouple protection tubes typically have higher initial material and manufacturing costs compared to mullite, driven by their advanced mechanical properties and superior thermal shock resistance. Mullite offers a more cost-effective solution with lower raw material and fabrication expenses, making it suitable for applications with less demanding operating conditions. In terms of long-term economic considerations, silicon nitride can reduce replacement frequency and downtime, potentially offsetting its higher upfront investment in high-performance environments.

Common Applications and Industry Use Cases

Silicon nitride thermocouple protection tubes are widely used in high-temperature aerospace and automotive industries due to their excellent thermal shock resistance and mechanical strength. Mullite tubes find common applications in petrochemical and power generation sectors, where their superior oxidation resistance and chemical stability at temperatures up to 1,400degC are critical. Both materials are selected based on specific environmental conditions, with silicon nitride favored for dynamic thermal cycling and mullite preferred for corrosive atmospheres.

Choosing the Right Material for Thermocouple Protection

Silicon nitride offers superior thermal shock resistance and mechanical strength, making it ideal for high-temperature, rapid cycling environments in thermocouple protection tubes. Mullite provides excellent chemical stability and oxidation resistance, suitable for corrosive atmospheres but with lower fracture toughness than silicon nitride. Selecting the right material depends on balancing operational temperature, chemical exposure, and mechanical stress to ensure accurate temperature measurement and long service life.
