azmater.com Piezoelectric ceramic offers high mechanical stress sensitivity and efficient energy conversion, while ferrite ceramic provides superior magnetic permeability and low electrical conductivity essential for magnetic core applications. Ferrite cores minimize eddy current losses and perform better at high frequencies compared to piezoelectric ceramics.
Table of Comparison
| Property | Piezoelectric Ceramic | Ferrite Ceramic |
|---|---|---|
| Material Type | Electroceramic with piezoelectric properties | Magnetic ceramic primarily used as magnetic cores |
| Magnetic Permeability | Low | High, optimized for magnetic core applications |
| Primary Application | Sensors, actuators, transducers | Inductors, transformers, EMI suppression cores |
| Electrical Conductivity | High dielectric constant, low conductivity | Insulating magnetic material with low eddy current losses |
| Frequency Range | High-frequency sensing and actuation | Effective in MHz to GHz for inductive components |
| Magnetic Saturation | Not applicable | Moderate to high magnetic saturation levels |
| Density | Typically 6-8 g/cm3 | Typically 4.8-5.2 g/cm3 |
| Thermal Stability | Moderate; depolarizes above Curie temperature (~350degC) | High; stable up to 300-400degC depending on composition |
Introduction to Magnetic Core Materials
Piezoelectric ceramic and ferrite ceramic serve distinct roles in magnetic core applications, with ferrite ceramics being the primary material due to their high magnetic permeability and low electrical conductivity, which reduces eddy current losses. Piezoelectric ceramics, while not typically used as magnetic cores, are crucial in sensors and actuators for their ability to convert mechanical stress into electrical signals. Understanding the magnetic properties of ferrite ceramics, such as their frequency response and saturation magnetization, is essential for optimizing transformer and inductor performance.
Overview of Piezoelectric Ceramics
Piezoelectric ceramics, primarily composed of lead zirconate titanate (PZT), generate electric charge under mechanical stress, making them essential in sensors, actuators, and transducers. Unlike ferrite ceramics, which are magnetic materials used for inductors and transformers, piezoelectric ceramics exhibit strong electromechanical coupling and high dielectric constants. Their unique ability to convert mechanical energy into electrical energy distinguishes them from ferrite ceramics in electromagnetic applications.
Understanding Ferrite Ceramics
Ferrite ceramics, composed primarily of iron oxide mixed with metallic elements such as manganese, zinc, or nickel, exhibit high magnetic permeability and low electrical conductivity, making them ideal for magnetic core applications. Unlike piezoelectric ceramics, ferrite ceramics are optimized for minimizing eddy current losses at high frequencies, improving efficiency and reducing heat generation in transformers and inductors. Their intrinsic magnetic properties and stable performance under varying temperatures provide reliable core materials for RF components and electromagnetic interference suppression.
Magnetic Properties Comparison
Ferrite ceramics exhibit superior magnetic permeability and lower core losses compared to piezoelectric ceramics, making them ideal for magnetic core applications requiring efficient electromagnetic energy transfer. Piezoelectric ceramics, primarily designed for converting mechanical stress into electrical signals, have negligible magnetic properties and are unsuitable for magnetic core use. The high resistivity and low eddy current losses in ferrite ceramics enhance their performance in high-frequency transformers and inductors, outperforming piezoelectric materials in magnetic functionality.
Electrical Performance Differences
Piezoelectric ceramics exhibit high dielectric constants and strong electromechanical coupling coefficients, enabling efficient energy conversion and signal processing in sensors and actuators. Ferrite ceramics feature lower dielectric constants but superior magnetic permeability and low eddy current losses, making them ideal for high-frequency inductors and transformers. Electrical performance differences primarily arise from piezoelectric ceramics' focus on electric field responsiveness, whereas ferrite ceramics optimize magnetic flux conduction and frequency-dependent impedance stability.
Frequency Response Analysis
Piezoelectric ceramics exhibit high electromechanical coupling and sensitivity, enabling superior frequency response analysis in ultrasonic and high-frequency applications, typically operating in the MHz range. Ferrite ceramics, primarily used in magnetic cores, provide excellent magnetic permeability and low eddy current loss, making them ideal for low-frequency to radio-frequency (kHz to low MHz) magnetic core applications. The choice between piezoelectric and ferrite ceramics depends on the required frequency range and application, with piezoelectric ceramics excelling in high-frequency, precision sensing, and ferrite ceramics optimized for efficient magnetic flux conduction in variable frequency electromagnetic devices.
Temperature Stability and Reliability
Piezoelectric ceramics exhibit excellent temperature stability with consistent piezoelectric properties across a wide temperature range, making them highly reliable for applications requiring precise performance under thermal stress. Ferrite ceramics, while effective as magnetic cores, tend to have more significant variations in magnetic permeability and increased core losses at elevated temperatures, reducing their temperature stability and long-term reliability. Therefore, piezoelectric ceramics offer superior temperature resilience and reliability compared to ferrite ceramics in magnetic core applications subject to thermal fluctuations.
Application Suitability: Piezoelectric vs Ferrite
Piezoelectric ceramics excel in applications requiring precise vibration control, acoustic sensors, and energy harvesting due to their ability to convert mechanical stress into electrical charge. Ferrite ceramics are preferred for magnetic cores in inductors, transformers, and electromagnetic interference (EMI) suppression because of their high magnetic permeability and low electrical conductivity, which reduce eddy current losses. For magnetic core applications, ferrite ceramics offer superior magnetic performance and efficiency, while piezoelectric ceramics are unsuitable due to their limited magnetic properties.
Cost and Manufacturing Considerations
Piezoelectric ceramics typically entail higher manufacturing costs due to complex material composition and precision sintering processes, while ferrite ceramics offer a more cost-effective solution with simpler production techniques and abundant raw materials. Ferrite cores benefit from scalable, low-temperature firing methods that reduce energy consumption and production time, contrasted with the stringent control needed for piezoelectric ceramic fabrication. Cost analysis often favors ferrite ceramics for large-scale magnetic core applications, given their lower material expenses and efficient manufacturing workflows.
Future Trends in Magnetic Core Materials
Piezoelectric ceramics and ferrite ceramics represent crucial materials in the evolution of magnetic cores, with piezoelectric ceramics gaining traction due to their multifunctional properties that combine mechanical stress sensing with magnetic response. Future trends highlight the integration of ferrite ceramics with advanced nanomaterials to enhance high-frequency performance and reduce core losses in telecommunications and power electronics. Innovations focus on developing hybrid composite cores that leverage the superior magnetostrictive capabilities of piezoelectric ceramics alongside the low eddy current losses of ferrite ceramics, aiming for more efficient, miniaturized, and smart magnetic devices.

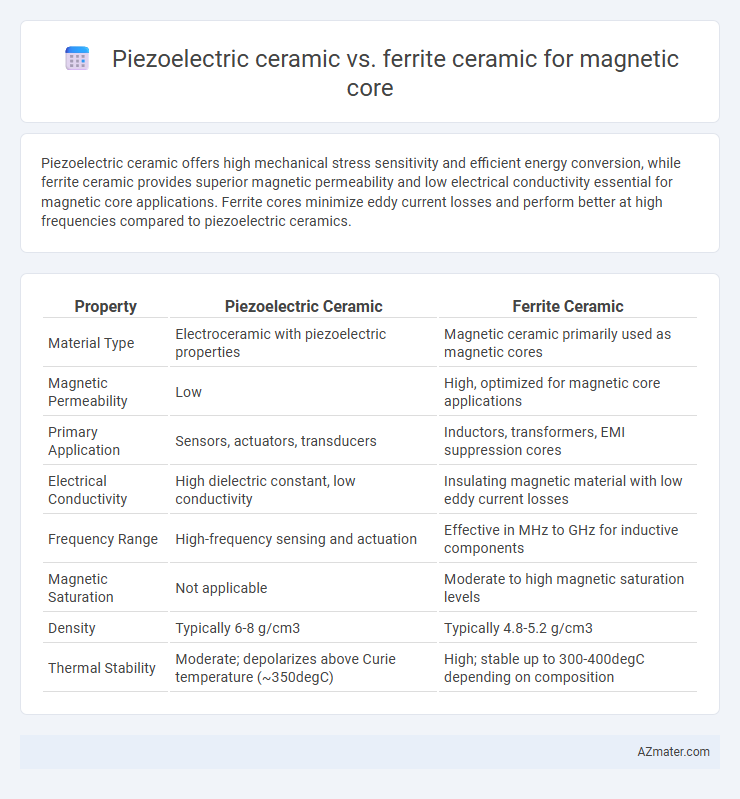

Infographic: Piezoelectric ceramic vs Ferrite ceramic for Magnetic core
