Magnetic ceramic vs. lead zirconate titanate ceramic for ultrasonic transducer - What is The Difference?

Magnetic ceramics exhibit higher magnetic permeability and mechanical stability, enhancing sensitivity in ultrasonic transducers compared to lead zirconate titanate (PZT) ceramics, which offer superior piezoelectric coefficients and broader frequency response. Optimizing transducer performance involves balancing the magnetic properties of magnetic ceramics with the electromechanical coupling efficiency of PZT ceramics.

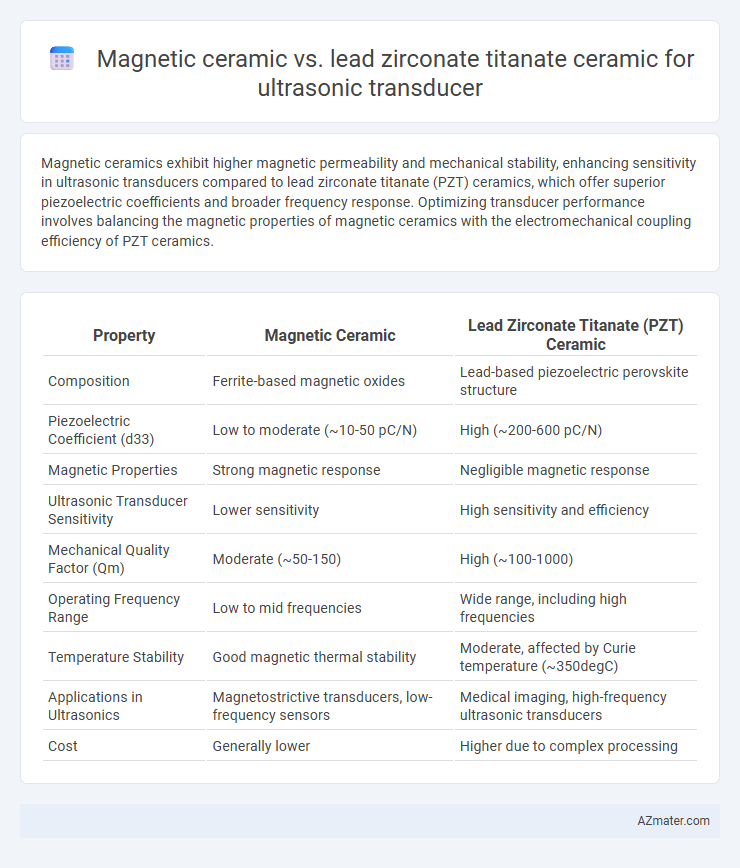

Table of Comparison

Introduction to Ultrasonic Transducers

Ultrasonic transducers rely on materials with high piezoelectric coefficients to convert electrical energy into mechanical vibrations and vice versa, with lead zirconate titanate (PZT) ceramics being the industry standard due to their superior electromechanical coupling and sensitivity. Magnetic ceramics, while exhibiting unique magnetostrictive properties, generally offer lower piezoelectric efficiency and are less effective in generating high-frequency ultrasonic waves compared to PZT. The selection between magnetic ceramic and lead zirconate titanate ceramic critically influences the performance parameters such as bandwidth, sensitivity, and signal-to-noise ratio in ultrasonic transducer applications.

Overview of Magnetic Ceramics

Magnetic ceramics, often composed of ferrite materials, exhibit high magnetic permeability and low eddy current losses, making them suitable for high-frequency ultrasonic transducers. Their intrinsic magnetic properties enable efficient electromagnetic-to-mechanical energy conversion, which is advantageous in applications requiring strong magneto-mechanical coupling. Compared to lead zirconate titanate (PZT) ceramics, magnetic ceramics offer improved thermal stability and corrosion resistance but generally have lower piezoelectric sensitivity.

Introduction to Lead Zirconate Titanate (PZT) Ceramics

Lead Zirconate Titanate (PZT) ceramics are widely used in ultrasonic transducers due to their exceptional piezoelectric properties, including high electromechanical coupling coefficients and large dielectric constants. Unlike magnetic ceramics, PZT ceramics exhibit superior sensitivity and energy conversion efficiency, making them ideal for precise ultrasonic applications such as medical imaging and non-destructive testing. The ability of PZT to maintain stability under varying temperature and mechanical stress further enhances its reliability in transducer performance.

Key Material Properties Comparison

Magnetic ceramics exhibit lower piezoelectric coefficients and dielectric constants compared to Lead Zirconate Titanate (PZT) ceramics, resulting in reduced sensitivity and signal strength for ultrasonic transducers. PZT ceramics offer superior electromechanical coupling coefficients and higher Curie temperatures, enhancing their efficiency and thermal stability in ultrasonic applications. The higher density and magnetic properties of magnetic ceramics contribute to unique tuning capabilities but generally limit their performance relative to PZT in standard ultrasonic transducer designs.

Piezoelectric vs Magnetostrictive Effects

Magnetic ceramics primarily utilize magnetostrictive effects, where mechanical deformation occurs in response to magnetic field changes, enabling efficient ultrasonic transduction with robust magnetic coupling. Lead zirconate titanate (PZT) ceramics exhibit strong piezoelectric effects, generating electric charge under mechanical stress, resulting in high sensitivity and broad frequency response ideal for precise ultrasonic imaging. While PZT ceramics dominate in frequency range and sensitivity due to their piezoelectric properties, magnetic ceramics offer advantages in harsh environments with enhanced durability and magnetic field responsiveness.

Efficiency and Performance Metrics

Magnetic ceramics for ultrasonic transducers exhibit lower electromechanical coupling coefficients compared to lead zirconate titanate (PZT) ceramics, resulting in reduced energy conversion efficiency. PZT ceramics dominate the market due to their high piezoelectric constants (d33 values typically between 200-700 pC/N) and superior bandwidth, enabling enhanced sensitivity and resolution in ultrasonic applications. While magnetic ceramics offer improved durability and resistance to environmental degradation, PZT materials provide optimal performance metrics critical for high-efficiency ultrasonic transduction.

Frequency Response and Bandwidth

Magnetic ceramics exhibit narrower frequency response and limited bandwidth compared to lead zirconate titanate (PZT) ceramics, which provide broader bandwidth and higher sensitivity for ultrasonic transducers. PZT ceramics possess superior electromechanical coupling coefficients, enabling efficient energy conversion and enhanced frequency response in ultrasonic applications. The wide bandwidth of PZT allows for improved resolution and signal clarity, making it the preferred choice for high-performance ultrasonic transducers.

Application Suitability: Medical, Industrial, and Consumer

Magnetic ceramics offer unique advantages for ultrasonic transducers in industrial applications due to their high magnetic permeability and durability under harsh conditions, making them ideal for non-destructive testing and material characterization. Lead zirconate titanate (PZT) ceramics excel in medical ultrasonics because of their superior piezoelectric coefficients, enabling high-resolution imaging and efficient energy conversion critical for diagnostics and therapy. Consumer electronics favor PZT-based transducers for their compact size, sensitivity, and cost-effectiveness, supporting applications like smartphone sensors and distance measurement devices.

Cost, Availability, and Manufacturing Considerations

Magnetic ceramics for ultrasonic transducers generally offer lower costs and greater availability compared to lead zirconate titanate (PZT) ceramics, which involve more complex and costly raw materials and manufacturing processes. PZT ceramics provide superior piezoelectric performance but require precise sintering conditions and lead handling protocols that increase production challenges and environmental concerns. Manufacturers must balance the trade-offs between the higher efficiency of PZT and the economic advantages of magnetic ceramics when selecting materials for ultrasonic transducer applications.

Future Trends and Innovations

Magnetic ceramic materials show promising potential for ultrasonic transducers due to their enhanced electromagnetic coupling and tunable magnetic properties, which enable improved sensitivity and broader frequency ranges compared to traditional lead zirconate titanate (PZT) ceramics. Future trends emphasize developing lead-free magnetic ceramic composites combining piezoelectric and magnetostrictive effects to meet environmental regulations while boosting energy conversion efficiency and device miniaturization. Innovations include engineered domain structures and nano-scale doping techniques to optimize magnetic ceramic performance, facilitating higher resolution imaging, non-destructive testing, and wireless ultrasonic sensor applications.
