Magnetic ceramic vs. barium titanate ceramic for multilayer capacitors - What is The Difference?

Magnetic ceramics offer high magnetic permeability and low eddy current losses, making them suitable for inductive components, while barium titanate ceramics provide excellent dielectric properties and high dielectric constant, ideal for multilayer capacitors. Barium titanate's ferroelectric nature enables superior capacitance density and temperature stability compared to magnetic ceramics.

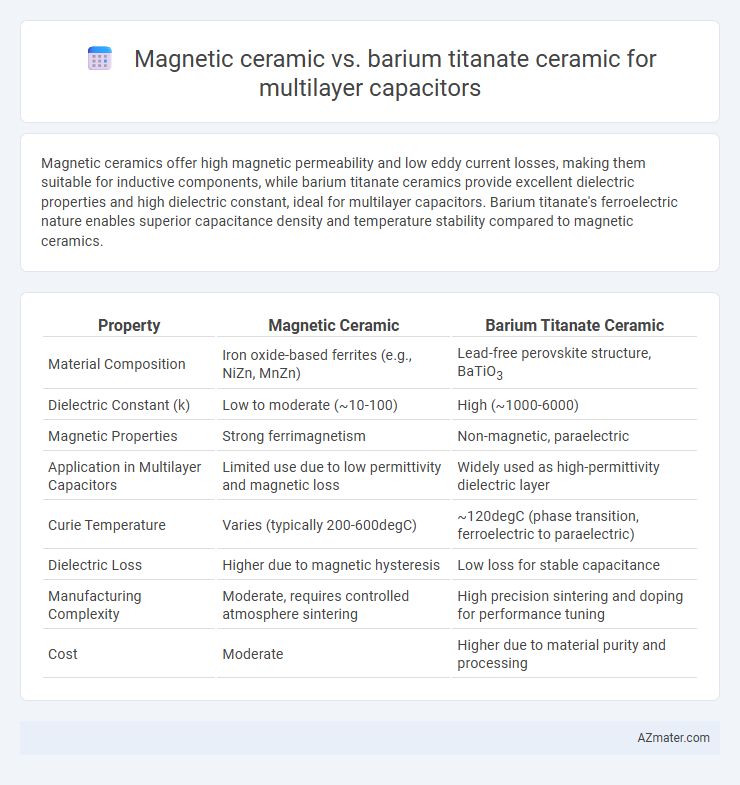

Table of Comparison

Introduction to Multilayer Capacitors

Multilayer capacitors (MLCs) integrate alternating layers of ceramic dielectric materials and metal electrodes to achieve high capacitance in compact formats. Magnetic ceramics in MLCs offer potential benefits in electromagnetic interference suppression, while barium titanate ceramics dominate due to their high permittivity and stable dielectric properties. The choice between magnetic ceramics and barium titanate significantly impacts the multilayer capacitor's performance, frequency response, and application suitability in electronic circuits.

Overview of Magnetic Ceramics

Magnetic ceramics exhibit unique electromagnetic properties due to their ferrite-based composition, making them suitable for applications requiring high permeability and low electrical conductivity. Unlike Barium titanate ceramics, which are primarily used for their high dielectric constant in multilayer capacitors, magnetic ceramics provide enhanced magnetic functionality critical in inductors and transformers. Their microstructure and magnetic domain behavior significantly influence the performance of multilayer ceramic components in electronic circuits.

Characteristics of Barium Titanate Ceramics

Barium titanate ceramics exhibit high dielectric constant and strong ferroelectric properties, making them ideal for multilayer capacitors with enhanced capacitance and temperature stability. Their perovskite crystal structure enables excellent piezoelectric and tunability characteristics, which magnetic ceramics typically lack. These attributes result in superior energy storage capabilities and reliable performance in multilayer ceramic capacitors (MLCCs) used in electronic circuits.

Dielectric Properties: Magnetic vs Barium Titanate Ceramics

Magnetic ceramics exhibit moderate dielectric constants with relatively stable temperature coefficients, making them suitable for applications requiring magnetic permeability alongside dielectric functionality. Barium titanate ceramics possess exceptionally high dielectric constants, often exceeding 1000, and display strong ferroelectric behavior, which enhances their energy storage capability but can result in greater temperature dependence and dielectric loss. The dielectric properties of barium titanate offer superior capacitance density compared to magnetic ceramics, making it the preferred choice for high-performance multilayer capacitors.

Frequency Response and Performance Comparison

Magnetic ceramics, characterized by their high permeability and low power loss at microwave frequencies, exhibit superior frequency response in multilayer capacitors compared to barium titanate ceramics, which primarily serve as dielectric materials with high permittivity but limited magnetic properties. Barium titanate ceramics provide excellent dielectric constant stability and low dielectric loss at low to mid frequencies, making them ideal for high-capacitance applications, whereas magnetic ceramics enable enhanced high-frequency performance due to their intrinsic magnetic resonance and reduced eddy current losses. The performance comparison highlights that magnetic ceramics optimize high-frequency impedance and bandwidth, while barium titanate ceramics prioritize capacitance density and dielectric stability in multilayer capacitor designs.

Temperature Stability in Multilayer Capacitor Applications

Magnetic ceramics typically exhibit lower temperature stability in multilayer capacitor applications compared to barium titanate ceramics, which are renowned for their excellent dielectric properties and stable permittivity over a wide temperature range. Barium titanate-based multilayer capacitors maintain consistent capacitance and minimal temperature coefficient, making them ideal for precision temperature-sensitive electronic circuits. Magnetic ceramics often suffer from increased dielectric loss and variance in capacitance under thermal stress, limiting their effectiveness in temperature-critical multilayer capacitor designs.

Manufacturing and Processing Differences

Magnetic ceramics, typically ferrites, require high-temperature sintering processes around 1200-1400degC to achieve their magnetic properties, whereas Barium titanate ceramics for multilayer capacitors (MLCCs) undergo controlled calcination and multilayer tape casting with sintering temperatures near 1300degC to optimize dielectric performance. The manufacturing of Barium titanate ceramics emphasizes precise grain size control and doping to enhance permittivity and insulation resistance, while magnetic ceramics focus on achieving uniform magnetic domain structures through carefully controlled atmosphere and sintering profiles. Processing differences also include the multilayer stacking and electrode integration techniques essential for MLCCs, contrasting with the simpler bulk or monolithic forms common in magnetic ceramic components.

Cost Analysis: Magnetic vs Barium Titanate Ceramics

Magnetic ceramics generally exhibit lower raw material and processing costs compared to barium titanate ceramics, making them more cost-effective for multilayer capacitor production where magnetic properties are prioritized. Barium titanate, widely used for its superior dielectric constant and temperature stability, incurs higher manufacturing expenses due to complex synthesis and stricter quality control requirements. Cost analysis reveals that while magnetic ceramics reduce initial investment, barium titanate ceramics offer enhanced performance that can justify the premium in high-reliability applications.

Typical Applications in Electronics

Magnetic ceramics are typically used in inductors and transformers within high-frequency electronic circuits, benefiting from their excellent magnetic permeability and low core losses. Barium titanate ceramics serve as the dielectric material in multilayer ceramic capacitors (MLCCs), offering high dielectric constant, stability, and temperature reliability essential for decoupling, filtering, and timing applications in consumer electronics and automotive systems. The contrasting electrical properties of magnetic ceramics and barium titanate ceramics define their complementary roles in compact, multilayer passive components critical to modern electronic devices.

Future Trends and Material Innovations

Magnetic ceramics for multilayer capacitors (MLCs) are gaining attention due to their enhanced electromagnetic interference (EMI) suppression and miniaturization potential, driven by innovations in ferrite-based composites and nanoengineering techniques. Barium titanate ceramics remain dominant in MLCs because of their high dielectric constant and temperature stability, with future trends focused on doping strategies and grain boundary engineering to improve voltage endurance and reliability. Emerging hybrid materials combining magnetic ceramics with barium titanate aim to optimize both dielectric and magnetic properties, promising breakthroughs in high-frequency applications and energy-efficient electronic devices.
