azmater.com Electric ceramic offers high thermal stability and insulation properties ideal for power cable sheathing, while superconductor ceramic enables zero-resistance current flow, significantly enhancing cable efficiency and reducing energy losses in power transmission. Superconductor ceramics like YBCO are critical for next-generation power cables due to their ability to operate at relatively higher temperatures compared to traditional superconductors.
Table of Comparison
| Property | Electric Ceramic | Superconductor Ceramic |
|---|---|---|
| Electrical Conductivity | Low conductivity, acts as insulator | Zero resistance below critical temperature |
| Application in Power Cables | Insulation and dielectric barrier | Efficient current transport with minimal power loss |
| Heat Tolerance | High thermal stability | Requires cryogenic cooling to maintain superconductivity |
| Mechanical Strength | High mechanical durability | Moderate mechanical strength, sensitive to strain |
| Cost | Lower manufacturing and material cost | Higher cost due to cooling and complex material synthesis |
| Energy Efficiency | Energy loss due to resistivity | Near-zero energy loss in power transmission |
| Typical Materials | Alumina (Al2O3), Zirconia (ZrO2) | YBCO, BSCCO ceramics |
Introduction to Ceramic Materials in Power Cables
Electric ceramic materials in power cables provide excellent insulation, high dielectric strength, and thermal stability, ensuring reliable cable performance under high voltage stress. Superconductor ceramics, such as yttrium barium copper oxide (YBCO), offer zero electrical resistance and exceptional current-carrying capacity, enabling highly efficient power transmission with minimal energy loss. The choice between electric ceramic and superconductor ceramic depends on factors like operating temperature, cost, and application-specific power requirements in high voltage power cable systems.
What Are Electric Ceramics?
Electric ceramics are insulating materials with high dielectric strength used in power cables to prevent electrical leakage and withstand high voltages, ensuring efficient energy transmission. In contrast, superconductor ceramics offer zero electrical resistance at critical low temperatures, enabling lossless power delivery and significantly reducing energy dissipation in cables. These materials are chosen based on application requirements, with electric ceramics ideal for insulation and superconductor ceramics suited for high-efficiency, low-loss power systems.
Understanding Superconductor Ceramics
Superconductor ceramics exhibit zero electrical resistance and expel magnetic fields below critical temperatures, enabling highly efficient power transmission compared to traditional electric ceramics. Unlike electric ceramics, which primarily serve as insulators with high dielectric strength, superconductor ceramics facilitate lossless current flow, drastically reducing energy dissipation in power cables. Their application in power cables promises enhanced grid efficiency and capacity, although challenges remain in maintaining the cryogenic conditions necessary for superconductivity.
Material Composition and Structure Comparison
Electric ceramic power cables typically use alumina (Al2O3) or barium titanate (BaTiO3) with a dense, crystalline structure that provides high dielectric strength and insulation properties. Superconductor ceramic power cables feature materials such as yttrium barium copper oxide (YBCO) or bismuth strontium calcium copper oxide (BSCCO) with a complex layered perovskite crystal structure enabling zero electrical resistance below critical temperatures. The key structural difference lies in the superconductor ceramics' ability to maintain Cooper pairs within their anisotropic lattice, allowing for lossless current flow, unlike the purely insulative behavior of electric ceramics.
Electrical Conductivity Differences
Electric ceramic power cables exhibit relatively low electrical conductivity due to their insulating properties, typically ranging from 10^-10 to 10^-14 S/m, making them suitable for applications requiring electrical insulation and dielectric strength. Superconductor ceramic power cables, such as those using YBCO (Yttrium Barium Copper Oxide), demonstrate near-zero electrical resistance below their critical temperature, resulting in electrical conductivities several orders of magnitude higher than electric ceramics and enabling highly efficient power transmission with minimal energy losses. The stark difference in electrical conductivity between electric ceramics and superconductor ceramics fundamentally impacts power cable performance, with superconductors allowing for increased current capacity and reduced heat generation compared to traditional electric ceramic materials.
Thermal Performance and Heat Dissipation
Electric ceramic power cables exhibit moderate thermal performance characterized by higher thermal resistivity, which limits heat dissipation efficiency under operational loads. Superconductor ceramics, like yttrium barium copper oxide (YBCO), offer superior thermal conductivity and greatly reduced electrical resistance, resulting in minimal Joule heating and enhanced heat dissipation capabilities. This thermal advantage allows superconductor ceramic cables to operate at significantly lower temperatures, improving overall energy efficiency and reliability in high-power transmission.
Mechanical Strength and Durability
Electric ceramic used in power cables offers excellent mechanical strength with high resistance to compressive and tensile stresses, making it suitable for structural support in harsh environmental conditions. Superconductor ceramic cables, such as those made from yttrium barium copper oxide (YBCO), exhibit lower mechanical strength due to their brittle nature, requiring reinforcement with metallic substrates or polymer composites to enhance durability. Durability in superconductor ceramics depends heavily on protective layering to prevent cracking and degradation during thermal cycling, whereas electric ceramics inherently provide more robust mechanical integrity over prolonged use.
Energy Efficiency and Power Losses
Electric ceramic power cables exhibit higher resistive losses due to their limited conductivity, leading to reduced energy efficiency during power transmission. Superconductor ceramics, such as YBCO (Yttrium Barium Copper Oxide), operate with near-zero electrical resistance below critical temperatures, dramatically minimizing power losses and enhancing overall energy efficiency. The application of superconductor ceramics in power cables significantly reduces thermal losses and improves load capacity compared to conventional electric ceramic materials.
Cost Analysis and Scalability
Electric ceramic power cables generally offer lower production and installation costs due to their established manufacturing processes and widespread material availability, making them more accessible for large-scale deployment. Superconductor ceramic cables, while currently more expensive due to costly raw materials like yttrium barium copper oxide (YBCO) and complex cryogenic cooling requirements, promise higher efficiency and capacity that could justify investment in high-demand scenarios. Scalability of electric ceramic cables benefits from mature industrial infrastructure, whereas superconductor ceramic cables face challenges in scaling caused by cooling system integration and limited supplier networks, impacting overall cost-effectiveness in expanding power grids.
Future Applications and Technological Trends
Electric ceramic power cables offer reliable insulation and thermal stability essential for high-voltage applications, while superconductor ceramic cables enable near-zero electrical resistance, promising ultra-efficient energy transmission with minimal losses. Future applications of superconductor ceramics in power grids include enhancing smart grid capabilities, integrating renewable energy sources, and supporting high-capacity urban transportation systems. Technological trends emphasize improving critical current density, cryogenic cooling advancements, and cost reduction to facilitate widespread adoption of superconducting ceramic cables in next-generation infrastructure.

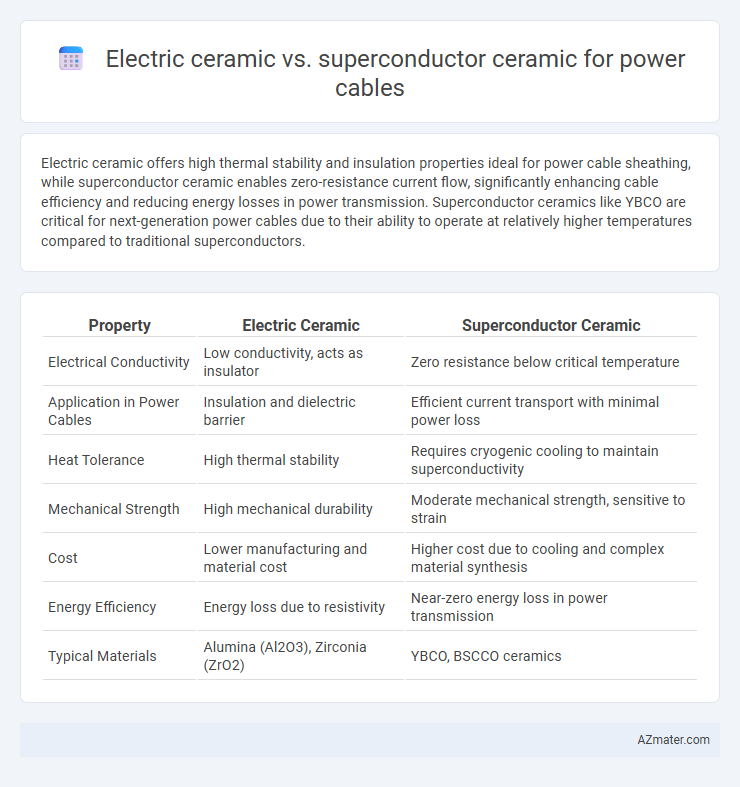

Infographic: Electric ceramic vs Superconductor ceramic for Power cable
