azmater.com Electric ceramics offer superior dielectric strength and thermal stability compared to porcelain, making them ideal for high-voltage insulators. Porcelain provides excellent mechanical strength and weather resistance but has lower electrical insulation properties than electric ceramics.
Table of Comparison
| Property | Electric Ceramic | Porcelain |
|---|---|---|
| Material Composition | Alumina, silica, and other oxides | Kaolin, feldspar, quartz |
| Dielectric Strength | High (up to 15 kV/mm) | Moderate to High (8-12 kV/mm) |
| Mechanical Strength | Very strong, resistant to cracking | Strong but more brittle |
| Thermal Stability | Excellent, withstands high temperatures | Good, stable below 1200degC |
| Moisture Absorption | Low, improves insulation performance | Higher, can affect dielectric properties |
| Applications | High voltage insulators, electronic components | Power transmission insulators, domestic use |
| Cost | Higher due to complex processing | Lower, widely available |
Introduction to Electrical Insulators
Electrical insulators are critical components in power transmission systems, preventing unwanted current flow and ensuring system safety. Electric ceramic insulators, primarily made from alumina or silicon carbide, offer high mechanical strength and excellent thermal stability, suitable for high-voltage applications. Porcelain insulators, composed of kaolin, feldspar, and quartz, provide superior electrical resistance and durability, making them ideal for outdoor environments exposed to harsh weather conditions.
What is Electric Ceramic?
Electric ceramic is a specialized material used in insulators designed to withstand high voltage and harsh environmental conditions. It possesses excellent electrical insulation properties, mechanical strength, and resistance to thermal and chemical degradation. Porcelain, a type of electric ceramic, is commonly used for insulators due to its high dielectric strength and durability in outdoor applications.
What is Porcelain?
Porcelain is a high-strength ceramic material composed primarily of kaolin, feldspar, and quartz, widely used for electrical insulators due to its excellent mechanical durability and electrical resistance. Unlike general electric ceramics, porcelain offers superior resistance to moisture, thermal shock, and environmental degradation, making it ideal for outdoor insulator applications in power transmission. Its dense, vitrified structure provides reliable insulation performance and long service life under high voltage stress.
Key Material Differences: Electric Ceramic vs Porcelain
Electric ceramic insulators primarily use alumina (Al2O3) and silica as raw materials, offering superior mechanical strength and higher electrical resistivity. Porcelain insulators are made from clay, feldspar, and quartz, which provide good dielectric properties but generally lower mechanical durability compared to electric ceramics. The key material difference lies in electric ceramics' enhanced purity and densification, resulting in improved thermal stability and resistance to electrical stress.
Electrical Performance Comparison
Electric ceramic insulators typically exhibit higher dielectric strength and lower electrical conductivity compared to porcelain, making them more effective at resisting high voltage breakdowns. Porcelain insulators offer robust mechanical strength but may have slightly higher leakage currents under humid conditions due to their microstructural porosity. The superior electrical insulation properties of electric ceramics result in enhanced performance in high-voltage applications, while porcelain remains favored for its cost-effectiveness and mechanical durability.
Mechanical Strength and Durability
Electric ceramic insulators exhibit superior mechanical strength compared to porcelain, providing enhanced resistance to impact and stress under high-tension environments. Porcelain, while traditionally used for insulators, is more prone to chipping and fracture due to its brittle nature and lower tensile strength. The durability of electric ceramic insulators is significantly increased by advanced manufacturing techniques that improve resistance to weathering, thermal cycling, and electrical degradation, making them ideal for long-term infrastructure applications.
Resistance to Environmental Factors
Electric ceramic insulators exhibit superior resistance to environmental factors such as moisture, pollution, and temperature fluctuations due to their dense microstructure and low porosity. Porcelain insulators, while durable, are more susceptible to surface erosion and contamination buildup, which can compromise insulation performance over time. Advanced electric ceramics maintain stable electrical properties under harsh conditions, making them ideal for high-voltage outdoor applications exposed to extreme weather.
Cost Analysis: Electric Ceramic vs Porcelain
Electric ceramic insulators generally offer a lower initial cost compared to porcelain insulators, making them a cost-effective choice for large-scale electrical installations. Porcelain insulators, although more expensive upfront, provide superior mechanical strength and durability, potentially reducing long-term maintenance and replacement expenses. Evaluating total lifecycle costs reveals that porcelain insulators may yield better economic value in high-stress environments despite higher initial investments.
Applications and Industry Preferences
Electric ceramic insulators, known for their high mechanical strength and excellent electrical resistance, are widely used in power transmission and distribution systems where durability against harsh environmental conditions is critical. Porcelain insulators, favored in high-voltage applications such as substations and overhead power lines, provide superior resistance to weathering and contamination, ensuring long-term reliability in outdoor deployments. Industry preferences lean towards electric ceramic for compact, high-performance components in electronics and industrial machinery, while porcelain dominates large-scale infrastructure projects due to its proven track record and cost-effectiveness.
Choosing the Right Insulator: Factors to Consider
Electric ceramic insulators offer superior mechanical strength and excellent thermal stability, making them ideal for high-voltage applications, while porcelain insulators provide cost-effective durability with good resistance to environmental factors such as moisture and pollution. Key factors to consider when choosing between electric ceramic and porcelain insulators include voltage rating, mechanical load requirements, environmental conditions, and cost constraints. Selecting the appropriate insulator involves balancing electrical performance, physical durability, and long-term reliability to ensure optimal functionality in power transmission and distribution systems.

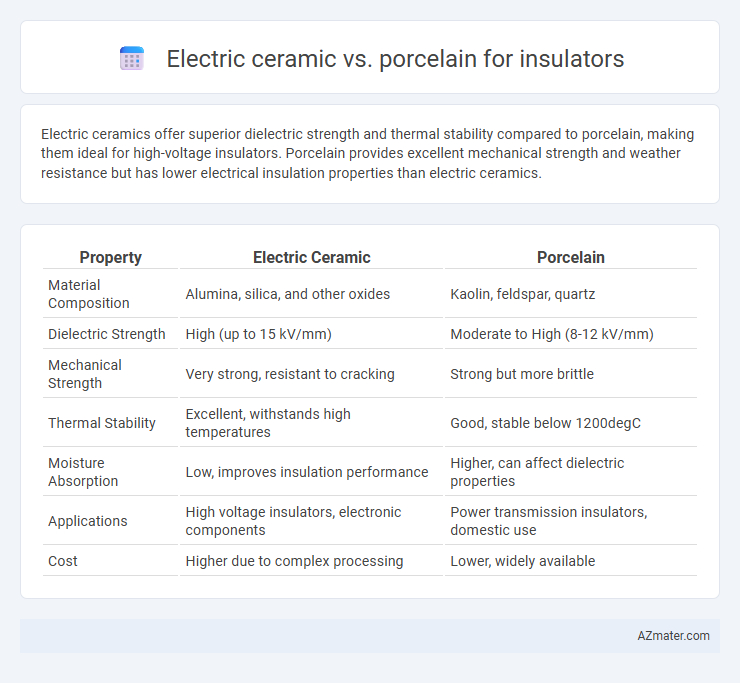

Infographic: Electric ceramic vs Porcelain for Insulator
