Dielectric ceramic vs. silicon carbide for heating elements - What is The Difference?

Dielectric ceramics offer excellent electrical insulation and thermal stability, making them ideal for low to medium temperature heating elements, while silicon carbide provides superior thermal conductivity, mechanical strength, and can withstand high temperatures above 1400degC, making it suitable for industrial high-temperature heating applications. Silicon carbide elements also exhibit faster heat-up times and longer operational life compared to dielectric ceramics.

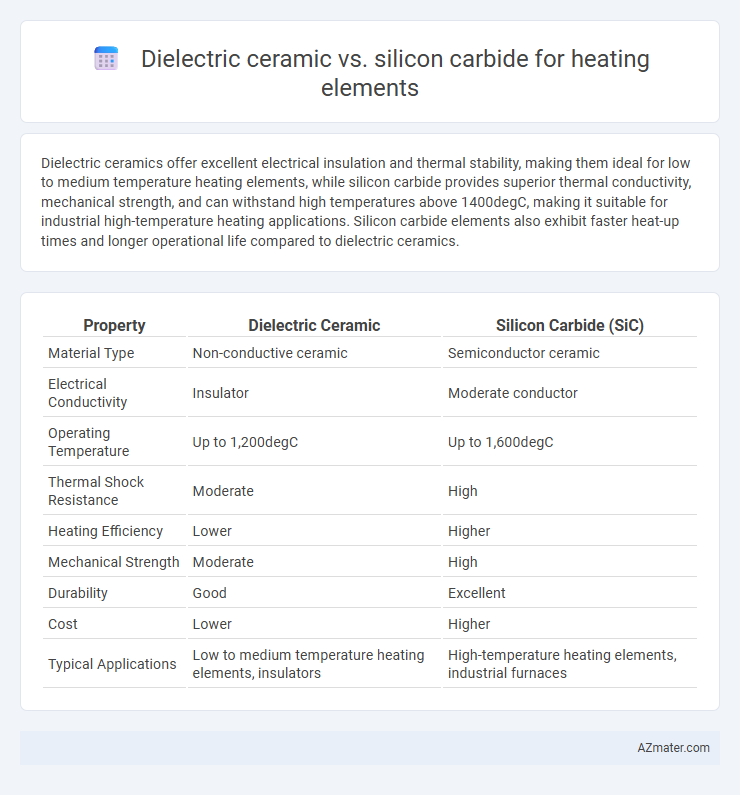

Table of Comparison

Introduction to Heating Elements: Dielectric Ceramic vs Silicon Carbide

Dielectric ceramic heating elements offer excellent electrical insulation and high thermal stability, making them ideal for precise temperature control applications. Silicon carbide heating elements exhibit superior thermal conductivity and high-temperature resistance, allowing efficient and rapid heating in harsh industrial environments. Choosing between dielectric ceramic and silicon carbide depends on factors like operating temperature, power density, and application-specific requirements.

Material Composition and Structure

Dielectric ceramics for heating elements primarily consist of aluminum oxide (Al2O3) or barium titanate (BaTiO3), exhibiting high electrical insulation and thermal stability due to their dense, polycrystalline structure. Silicon carbide (SiC) heating elements feature a covalently bonded crystalline structure with significant silicon and carbon atoms, providing superior thermal conductivity and oxidation resistance. The distinct material composition and microstructure of dielectric ceramics result in lower electrical conductivity compared to SiC, which enables high-temperature operation with efficient heat transfer in demanding industrial applications.

Thermal Conductivity Comparison

Silicon carbide exhibits significantly higher thermal conductivity, typically ranging from 100 to 270 W/m*K, compared to dielectric ceramics that generally have thermal conductivity values below 30 W/m*K. This superior heat transfer capability makes silicon carbide ideal for high-temperature heating elements requiring rapid and uniform heat distribution. Dielectric ceramics, while providing excellent electrical insulation, are less efficient in thermal conduction, limiting their use in applications demanding efficient heat dissipation.

Electrical Insulation Properties

Dielectric ceramic materials exhibit excellent electrical insulation properties with high resistivity and low dielectric loss, making them ideal for heating elements requiring reliable electrical isolation. Silicon carbide, while possessing good electrical conductivity at elevated temperatures, generally requires insulating coatings or ceramic layers to achieve sufficient electrical insulation in heating applications. The superior dielectric strength and thermal stability of dielectric ceramics ensure enhanced safety and performance in electrically insulated heating elements compared to silicon carbide.

Temperature Range and Stability

Dielectric ceramics typically operate within a temperature range of 800degC to 1400degC, offering high electrical insulation and excellent thermal stability for moderate-temperature heating applications. Silicon carbide (SiC) heating elements endure temperatures up to 1600degC to 1700degC with superior thermal conductivity and enhanced stability under rapid temperature changes and harsh environments. The selection between dielectric ceramics and silicon carbide hinges on specific temperature requirements and the needed balance of thermal shock resistance and electrical properties.

Durability and Lifespan

Dielectric ceramic heating elements offer high electrical insulation and excellent thermal stability, but their durability is generally lower compared to silicon carbide, which exhibits superior wear resistance and can withstand higher operating temperatures exceeding 1600degC. Silicon carbide elements have a longer lifespan, often lasting up to 10,000 hours or more under continuous high-temperature use, whereas dielectric ceramics typically degrade faster due to thermal shock and mechanical stress. The enhanced thermal conductivity and robustness of silicon carbide significantly improve its reliability in industrial heating applications.

Energy Efficiency and Power Consumption

Dielectric ceramic heating elements offer moderate energy efficiency with stable thermal conductivity, making them suitable for applications requiring precise temperature control and lower power consumption. Silicon carbide heating elements deliver superior energy efficiency due to their high thermal conductivity and rapid heat-up times, resulting in reduced energy consumption and enhanced performance in high-temperature industrial processes. Power consumption in dielectric ceramics is generally higher over extended use compared to silicon carbide, which maintains efficiency through its durability and ability to operate at elevated temperatures without significant energy loss.

Applications in Industrial Heating

Dielectric ceramics offer excellent electrical insulation and high thermal stability, making them ideal for precise heating applications in electronics and laboratory equipment. Silicon carbide heating elements provide superior thermal conductivity, high-temperature resistance up to 1600degC, and durability, which suit them for heavy-duty industrial processes like metal forging, glass production, and semiconductor manufacturing. The choice depends on the required temperature range, mechanical strength, and chemical resistance in specialized industrial heating environments.

Cost Analysis and Availability

Dielectric ceramic heating elements generally offer lower initial costs and wider availability due to established manufacturing processes and abundant raw materials. Silicon carbide elements, while more expensive upfront, provide higher thermal conductivity and longer lifespan, which can reduce replacement frequency and operational costs over time. The choice between dielectric ceramics and silicon carbide heating elements depends on balancing upfront investment against long-term efficiency and durability requirements.

Environmental and Safety Considerations

Dielectric ceramic heating elements offer low environmental impact due to their non-toxic composition and energy-efficient operation, reducing hazardous emissions during use. Silicon carbide elements exhibit excellent thermal shock resistance and longer lifespan but may release particulate matter and contain trace heavy metals, requiring careful disposal and handling protocols. Both materials necessitate adherence to safety standards to prevent electrical hazards and ensure minimal environmental contamination throughout their lifecycle.
