Magnesium aluminate vs. mullite for infrared window - What is The Difference?

Magnesium aluminate offers superior thermal shock resistance and high infrared transparency compared to mullite, making it ideal for infrared window applications. Mullite provides enhanced mechanical strength but has lower infrared transmittance and higher thermal expansion.

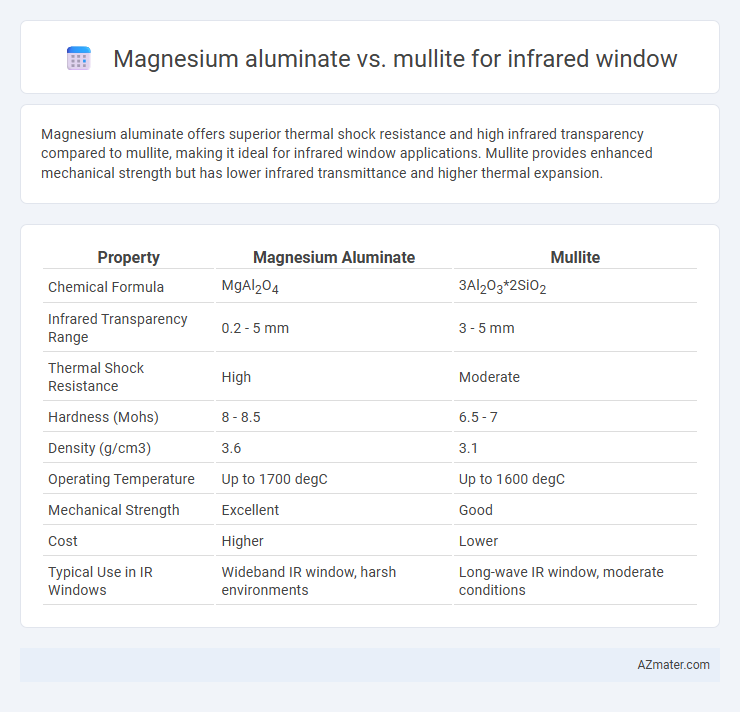

Table of Comparison

Introduction to Infrared Windows

Infrared windows are critical components in thermal imaging and sensing systems, requiring materials with high infrared transmission and thermal stability. Magnesium aluminate (spinel) offers excellent optical clarity and mechanical strength across a wide IR spectrum, while mullite provides superior thermal shock resistance and chemical stability at elevated temperatures. The choice between magnesium aluminate and mullite depends on specific application demands such as transmission range, durability, and operating environment.

Overview of Magnesium Aluminate

Magnesium aluminate (MgAl2O4), also known as spinel, is a highly transparent ceramic material with excellent thermal stability and mechanical strength, making it ideal for infrared (IR) window applications. Its wide optical transmission range spans from the ultraviolet to mid-infrared (0.2 to 5 microns), outperforming mullite, which has limited IR transparency and lower thermal shock resistance. Spinel's superior durability, chemical inertness, and high melting point (about 2135degC) enable reliable performance in harsh environments where infrared windows are critical.

Overview of Mullite

Mullite, a high-temperature ceramic composed primarily of 3Al2O3*2SiO2, exhibits excellent thermal stability and low thermal expansion, making it ideal for infrared windows in harsh environments. Its superior mechanical strength and resistance to thermal shock surpass that of magnesium aluminate spinel, ensuring durability under rapid temperature fluctuations. Mullite's excellent infrared transmission, especially in the 3-5 um wavelength range, combined with its chemical inertness, enhances its suitability for advanced infrared optical applications.

Optical Properties: Transmission and Clarity

Magnesium aluminate (spinel) exhibits excellent infrared transmission ranging from 0.2 to 5 microns with high clarity and low scattering, making it ideal for broadband IR window applications. Mullite, while possessing good thermal stability, has lower IR transmission, typically limited to a narrower spectral range around 8 to 12 microns, and exhibits reduced clarity due to its polycrystalline microstructure. The superior optical transparency and minimized absorption of magnesium aluminate enhance performance in high-precision IR optics compared to the comparatively opaque and less transmissive mullite.

Thermal Stability and Resistance

Magnesium aluminate exhibits superior thermal stability with a melting point around 2135degC, making it highly resistant to thermal shock and thermal cycling in infrared window applications. Mullite, with a lower melting point near 1840degC, demonstrates excellent creep resistance and maintains structural integrity at high temperatures, but it is more prone to thermal deformation under rapid temperature changes. Magnesium aluminate's dense, spinel structure offers enhanced resistance to oxidation and chemical attack compared to Mullite's orthorhombic crystal lattice, providing longer lifespan in harsh infrared imaging environments.

Mechanical Strength and Durability

Magnesium aluminate (MgAl2O4) offers superior mechanical strength with a high fracture toughness around 3.5 MPa*m^0.5 and excellent hardness, making it resistant to abrasion and impact damage compared to mullite (3Al2O3*2SiO2), which has a lower fracture toughness near 1.5 MPa*m^0.5. Durability-wise, magnesium aluminate exhibits exceptional thermal shock resistance and chemical stability at elevated temperatures up to 1500degC, whereas mullite, while also thermally stable, tends to have lower resistance to mechanical stress and thermal cycling. These properties render magnesium aluminate more effective for infrared window applications requiring long-term mechanical integrity and high durability under extreme environmental conditions.

Chemical Resistance and Environmental Suitability

Magnesium aluminate exhibits superior chemical resistance compared to mullite, effectively withstanding acidic and alkaline environments without degradation, making it ideal for harsh chemical exposure in infrared window applications. Mullite offers excellent high-temperature stability and thermal shock resistance, but its chemical resistance is comparatively lower, potentially limiting its suitability in corrosive environments. For environmental suitability, magnesium aluminate's robustness against moisture and chemical pollutants ensures prolonged durability, whereas mullite is preferred in applications prioritizing thermal performance over chemical inertness.

Cost and Availability Comparison

Magnesium aluminate offers a more cost-effective solution for infrared windows due to its abundant availability and simpler manufacturing process compared to mullite. Mullite, while providing excellent thermal stability and mechanical strength, is typically more expensive because of limited raw material supply and complex fabrication techniques. The widespread presence of magnesium and aluminum sources ensures magnesium aluminate's dominance in budget-sensitive infrared optical components.

Application Scenarios: When to Choose Each Material

Magnesium aluminate (spinel) is ideal for infrared windows requiring high transparency in the mid-infrared range (3-5 um) and excellent mechanical strength, making it suitable for high-temperature and harsh environments such as missile domes or gas turbines. Mullite excels in applications demanding superior thermal shock resistance and stability up to 1750degC, often used in infrared windows for furnace monitoring and industrial heaters operating in extreme thermal cycling conditions. Selecting between magnesium aluminate and mullite depends on specific application conditions, including wavelength range, mechanical durability, and thermal stability requirements.

Conclusion: Selecting the Optimal Infrared Window Material

Magnesium aluminate offers superior optical clarity and thermal stability for infrared windows, making it ideal for high-performance optics in harsh environments. Mullite provides excellent mechanical strength and thermal shock resistance but exhibits lower infrared transmittance compared to magnesium aluminate. Selecting the optimal infrared window material depends on balancing the required infrared transmission, mechanical durability, and environmental conditions specific to the application.
