Fluorocarbon rubber vs. silicone rubber for O-ring - What is The Difference?

Fluorocarbon rubber O-rings offer superior chemical resistance and high-temperature stability up to 200degC, making them ideal for automotive and aerospace applications. Silicone rubber O-rings provide excellent flexibility and compression set resistance at low temperatures, suitable for medical devices and food processing industries.

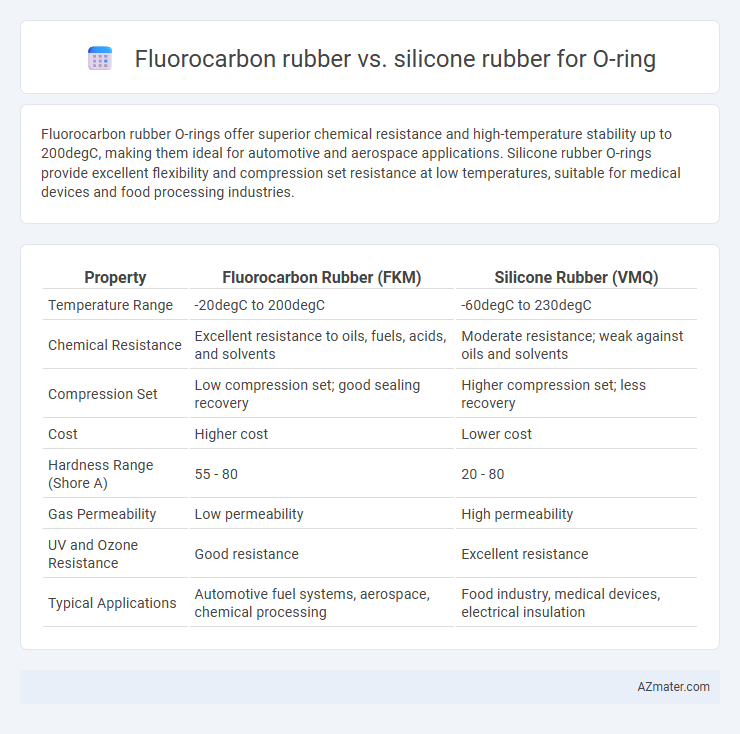

Table of Comparison

Introduction to O-Ring Materials

O-ring materials such as fluorocarbon rubber and silicone rubber offer distinct properties for sealing applications, with fluorocarbon rubber known for its excellent chemical resistance, high temperature tolerance up to 200degC, and durability in harsh environments. Silicone rubber stands out for its flexibility, wide temperature range from -60degC to 230degC, and excellent compression set resistance, making it ideal for dynamic sealing and food-grade applications. Selecting the appropriate O-ring material depends on factors like temperature, chemical exposure, and mechanical stress to ensure optimal sealing performance.

Overview of Fluorocarbon Rubber (FKM)

Fluorocarbon rubber (FKM) offers exceptional chemical resistance and high-temperature stability, making it ideal for demanding O-ring applications in automotive, aerospace, and chemical processing industries. Its resistance to fuels, oils, and aggressive chemicals surpasses that of silicone rubber, providing enhanced durability in harsh environments. FKM O-rings maintain sealing performance across a wide temperature range, typically from -20degC to 200degC, ensuring reliable operation under extreme conditions.

Key Properties of Silicone Rubber (VMQ)

Silicone rubber (VMQ) O-rings offer exceptional temperature resistance, operating effectively from -60degC to 230degC, making them suitable for both extreme cold and high-heat applications. They exhibit excellent flexibility, low compression set, and strong resistance to ozone, UV, and weathering, which ensures long-term durability in outdoor or dynamic environments. Unlike fluorocarbon rubber, VMQ O-rings have moderate chemical resistance but superior electrical insulation properties, making them ideal for aerospace, medical, and food-grade sealing solutions.

Chemical Resistance: Fluorocarbon vs Silicone

Fluorocarbon rubber (FKM) O-rings exhibit superior chemical resistance compared to silicone rubber, particularly against hydrocarbons, oils, fuels, and aggressive solvents, making them ideal for harsh chemical environments. Silicone rubber O-rings offer excellent resistance to water, ozone, and extreme temperatures but degrade rapidly when exposed to oils, acids, or fuels. Choosing Fluorocarbon O-rings ensures prolonged durability in applications involving aggressive chemicals, while silicone is better suited for less chemically aggressive or high-temperature settings.

Temperature Range Comparison

Fluorocarbon rubber O-rings perform reliably within a temperature range of approximately -26degC to 204degC, making them suitable for high-temperature applications involving fuel and chemicals. Silicone rubber O-rings offer a wider operating range from -55degC up to 230degC, providing superior flexibility in extreme cold and moderate high-temperature environments. The choice between these elastomers heavily depends on specific thermal requirements, with silicone favored for broader temperature tolerance and fluorocarbon for chemical resistance at elevated temperatures.

Physical Durability and Compression Set

Fluorocarbon rubber exhibits superior resistance to chemicals, high temperatures up to 200degC, and maintains excellent physical durability with a low compression set, often below 15%, making it ideal for harsh industrial applications. Silicone rubber offers exceptional flexibility and temperature resistance ranging from -60degC to 230degC but generally has a higher compression set, around 25-35%, which may reduce sealing effectiveness over prolonged use. Choosing between fluorocarbon and silicone O-rings depends largely on the specific operating environment and required balance between chemical resistance and elasticity retention.

Application Suitability in Different Industries

Fluorocarbon rubber (FKM) O-rings excel in automotive, aerospace, and chemical industries due to their exceptional resistance to high temperatures, fuels, oils, and aggressive chemicals. Silicone rubber O-rings are preferred in food processing, medical, and pharmaceutical applications for their excellent flexibility, biocompatibility, and resistance to extreme cold but lower chemical resistance. Selecting between fluorocarbon and silicone O-rings depends on the specific environmental conditions, such as temperature range, chemical exposure, and regulatory compliance requirements.

Cost and Availability Factors

Fluorocarbon rubber O-rings typically have a higher cost due to their advanced chemical resistance and temperature durability, making them ideal for demanding applications but less budget-friendly than silicone options. Silicone rubber O-rings offer greater availability and lower price points, benefiting industries requiring moderate temperature and chemical resistance with cost-conscious sourcing. Manufacturers often choose fluorocarbon rubber when long-term performance justifies expense, while silicone rubber remains preferred for general-purpose sealing needs due to its widespread supply.

Maintenance and Longevity Considerations

Fluorocarbon rubber O-rings offer superior chemical resistance and high-temperature stability, resulting in longer maintenance intervals and enhanced durability in harsh environments. Silicone rubber O-rings provide excellent flexibility and low-temperature performance but typically require more frequent inspections and replacements due to lower resistance to oils and solvents. Choosing fluorocarbon rubber minimizes downtime and maintenance costs in demanding applications, while silicone rubber suits less aggressive conditions with moderate longevity.

Choosing the Right O-Ring Material: Factors to Consider

Choosing between fluorocarbon rubber and silicone rubber for O-rings involves evaluating chemical resistance, temperature range, and application environment. Fluorocarbon rubber offers excellent resistance to fuels, oils, and high temperatures up to 200degC, making it ideal for automotive and aerospace seals. Silicone rubber provides superior flexibility and low-temperature performance, functioning effectively from -60degC to 180degC, suitable for food processing and medical applications where biocompatibility is critical.
