azmater.com Fluorocarbon rubber offers superior chemical resistance and high-temperature stability, making it ideal for fuel seal applications exposed to harsh fuels and extreme conditions. Hydrogenated nitrile rubber provides excellent oil resistance and flexibility at lower temperatures but has lower heat tolerance compared to fluorocarbon rubber.
Table of Comparison
| Property | Fluorocarbon Rubber (FKM) | Hydrogenated Nitrile Rubber (HNBR) |
|---|---|---|
| Temperature Resistance | -20degC to 200degC | -40degC to 150degC |
| Chemical Resistance | Excellent against fuels, oils, and solvents | Good resistance to fuels and oils, less resistant to solvents |
| Seal Durability | High, excellent compression set resistance | Moderate, good mechanical properties |
| Fuel Compatibility | Superior for aggressive fuels including aromatic hydrocarbons | Suitable for petroleum-based fuels and biofuels |
| Cost | Higher | Lower |
| Common Applications | Fuel seals in automotive, aerospace, and chemical industries | Fuel system seals in automotive engines |
Introduction to Fuel Seal Materials
Fluorocarbon rubber (FKM) and hydrogenated nitrile rubber (HNBR) are two primary materials used in fuel seals due to their excellent resistance to hydrocarbons and fuel compounds. FKM offers superior chemical resistance and high-temperature stability up to 200degC, making it ideal for harsh automotive fuel system applications. HNBR provides enhanced abrasion resistance and elasticity with good performance in a temperature range of -40degC to 150degC, often chosen for dynamic sealing environments in fuel handling.
What is Fluorocarbon Rubber (FKM)?
Fluorocarbon rubber (FKM) is a synthetic elastomer known for its exceptional resistance to heat, fuel, and chemicals, making it ideal for fuel seals in automotive and aerospace applications. Its molecular structure contains fluorine atoms that provide superior performance in harsh environments compared to hydrogenated nitrile rubber (HNBR), which offers good mechanical properties but lower chemical resistance. FKM's capability to maintain sealing integrity at temperatures up to 200degC and its excellent resistance to hydrocarbons and aggressive fluids make it a preferred material for fuel system components.
What is Hydrogenated Nitrile Rubber (HNBR)?
Hydrogenated Nitrile Rubber (HNBR) is a synthetic elastomer known for its superior resistance to heat, oil, and fuels, making it ideal for fuel seal applications. Unlike Fluorocarbon rubber, HNBR offers enhanced mechanical strength and excellent abrasion resistance while maintaining flexibility over a wide temperature range from -40degC to 150degC. Its hydrogenated structure improves chemical stability and aging resistance, ensuring long-lasting durability in demanding automotive and industrial fuel systems.
Chemical Resistance Comparison: FKM vs. HNBR
Fluorocarbon rubber (FKM) exhibits superior chemical resistance against a wide range of fuels, solvents, and acids due to its strong carbon-fluorine bonds, maintaining performance in harsh environments and high temperatures. Hydrogenated nitrile rubber (HNBR) offers excellent resistance to hydrocarbons, oils, and ozone, but its chemical resistance falls short compared to FKM when exposed to aggressive fuels containing oxygenates or aromatic compounds. For fuel seals requiring prolonged durability in aggressive chemical environments, FKM provides enhanced longevity and reliability compared to HNBR.
Temperature Performance in Fuel Applications
Fluorocarbon rubber (FKM) exhibits superior temperature resistance, maintaining seal integrity in fuel systems up to 200-250degC, making it ideal for high-temperature fuel applications. Hydrogenated nitrile rubber (HNBR) performs reliably at temperatures up to 150-160degC, offering excellent resistance to heat aging and fuel exposure but with lower thermal limits compared to FKM. For fuel seals exposed to extreme temperatures, FKM provides enhanced stability and durability, while HNBR offers a cost-effective solution for moderate temperature fuel environments.
Compatibility with Modern Fuels and Additives
Fluorocarbon rubber (FKM) exhibits exceptional chemical resistance and compatibility with a wide range of modern fuels, including ethanol-blended gasoline and biofuels, ensuring reliable sealing performance in harsh fuel environments. Hydrogenated nitrile rubber (HNBR) also offers good resistance to fuels and additives but may degrade faster in the presence of oxygenated fuels and aggressive additives compared to FKM. Selecting FKM for fuel seals enhances durability and leak prevention in engines utilizing advanced fuel formulations containing methanol, ethanol, and other oxygenates.
Mechanical Properties and Durability
Fluorocarbon rubber (FKM) exhibits superior mechanical properties with excellent resistance to high temperatures, chemicals, and fuels, making it ideal for fuel seals exposed to harsh environments. Hydrogenated nitrile rubber (HNBR) offers enhanced abrasion resistance, tensile strength, and resilience under dynamic mechanical stress, providing excellent durability in fuel sealing applications with fluctuating pressure and temperature. FKM seals maintain integrity and flexibility up to 250degC, while HNBR seals perform optimally up to 150degC, making the choice dependent on specific operating conditions and chemical exposure.
Cost Considerations and Availability
Fluorocarbon rubber (FKM) offers superior chemical resistance and high-temperature performance for fuel seals but comes with higher material and processing costs compared to hydrogenated nitrile rubber (HNBR). HNBR provides a more cost-effective solution with good resistance to fuels and oils, making it widely available and preferred for standard fuel sealing applications. Availability of HNBR is generally broader due to its widespread use in automotive and industrial markets, while FKM may face supply constraints and longer lead times driven by its specialized production.
Typical Applications in Fuel Seal Industry
Fluorocarbon rubber (FKM) is widely used in fuel seals for automotive and aerospace applications due to its excellent resistance to high temperatures, fuels, oils, and chemicals, making it ideal for harsh environments. Hydrogenated nitrile rubber (HNBR) offers superior mechanical strength and abrasion resistance with good fuel and oil resistance, commonly utilized in fuel injection systems, hoses, and sealing components in automotive and industrial engines. Both materials meet stringent industry standards like ASTM D2000, but FKM is preferred for extreme temperature and chemical exposure, while HNBR balances durability and cost-effectiveness in moderate fuel seal conditions.
Choosing the Right Rubber for Your Fuel Seal Needs
Fluorocarbon rubber (FKM) offers exceptional chemical resistance, high-temperature tolerance up to 250degC, and superior durability, making it ideal for aggressive fuel environments and long-term sealing performance. Hydrogenated nitrile rubber (HNBR) provides excellent resistance to fuels, oils, and abrasion with operating temperatures up to 150degC, balancing cost-effectiveness and robustness for less extreme conditions. Selecting the right rubber for your fuel seal hinges on evaluating fuel composition, temperature requirements, and mechanical stresses to ensure optimal sealing efficiency and longevity.

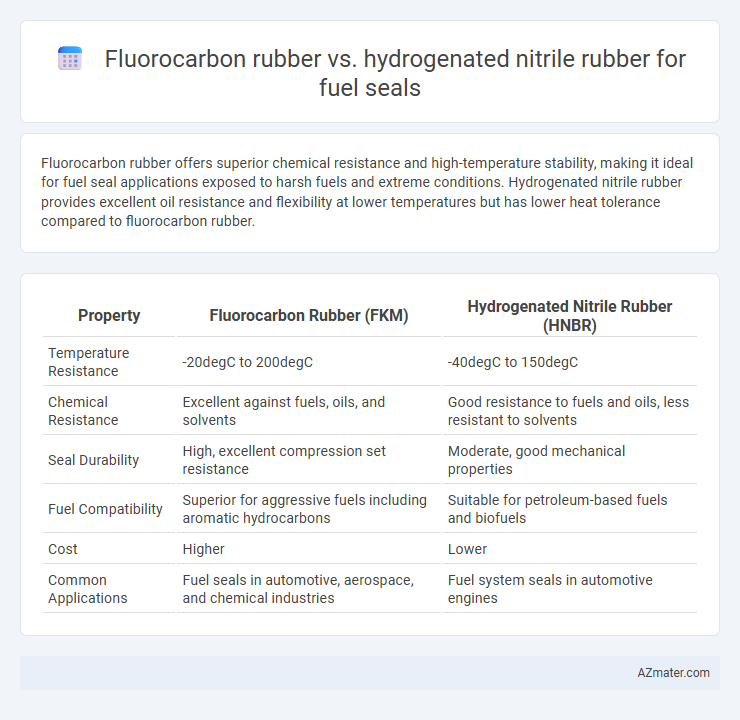

Infographic: Fluorocarbon rubber vs Hydrogenated nitrile rubber for Fuel seal
