Polyvinylidene fluoride vs. Polyoxymethylene for Engineering Component - What is The Difference?

Polyvinylidene fluoride (PVDF) offers superior chemical resistance and UV stability, making it ideal for corrosive environments, while Polyoxymethylene (POM) provides higher mechanical strength and dimensional stability suited for precision engineering components. PVDF excels in applications requiring thermal and chemical durability, whereas POM is preferred for friction-resistant, high-load mechanical parts.

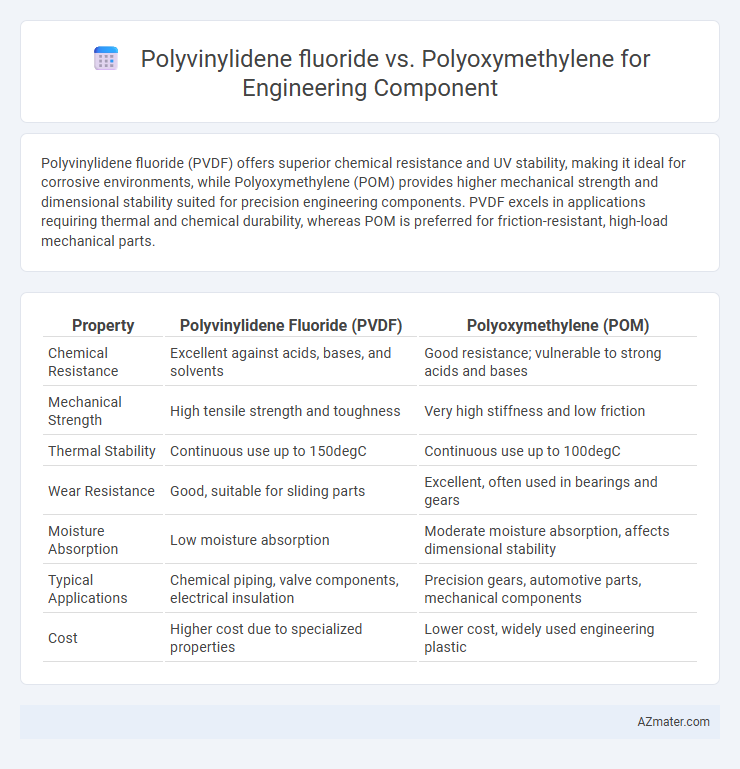

Table of Comparison

Introduction to Polyvinylidene Fluoride (PVDF) and Polyoxymethylene (POM)

Polyvinylidene fluoride (PVDF) is a high-performance fluoropolymer known for its exceptional chemical resistance, thermal stability up to 150degC, and excellent mechanical strength, making it ideal for corrosive environments in engineering applications. Polyoxymethylene (POM), also called acetal, is a semicrystalline thermoplastic with high stiffness, low friction, and superior dimensional stability, commonly used in precision mechanical parts such as gears and bearings due to its tensile strength of approximately 70 MPa. Both materials offer unique advantages: PVDF excels in chemical exposure and UV resistance, while POM provides outstanding wear resistance and machinability for engineering components.

Chemical Structure and Composition Comparison

Polyvinylidene fluoride (PVDF) is a semi-crystalline fluoropolymer composed of repeating vinylidene fluoride units (-CH2-CF2-), offering superior chemical resistance and UV stability due to the strong carbon-fluorine bonds. Polyoxymethylene (POM), also known as acetal, consists of repeating -CH2-O- units, providing high stiffness, low friction, and excellent dimensional stability but lower chemical resistance compared to PVDF. The fluorinated backbone of PVDF imparts enhanced durability in aggressive chemical environments, whereas POM's oxygen-rich chain facilitates mechanical strength but limits performance in harsh solvents and oxidative settings.

Mechanical Properties: Strength and Durability

Polyvinylidene fluoride (PVDF) exhibits excellent chemical resistance and moderate mechanical strength, making it suitable for applications requiring durability under corrosive conditions. Polyoxymethylene (POM), also known as acetal, offers superior tensile strength, stiffness, and fatigue resistance, delivering high durability and mechanical performance in precision engineering components. For applications demanding higher load-bearing capacity and wear resistance, POM is generally preferred, while PVDF excels where chemical stability and moderate strength are critical.

Thermal Stability and Temperature Resistance

Polyvinylidene fluoride (PVDF) exhibits superior thermal stability, maintaining mechanical properties up to 150degC and withstanding continuous exposure in high-temperature environments better than polyoxymethylene (POM), which typically degrades above 100degC. PVDF's chemical resistance and low thermal expansion make it ideal for components requiring long-term temperature resistance in aggressive environments, while POM offers excellent dimensional stability and strength at moderate temperatures. Engineering applications demanding extended thermal endurance and resistance to thermal degradation favor PVDF, whereas POM suits precision parts operating within more limited temperature ranges.

Chemical Resistance and Environmental Suitability

Polyvinylidene fluoride (PVDF) exhibits superior chemical resistance, particularly against strong acids, bases, and solvents, making it ideal for harsh chemical environments often encountered in engineering components. Polyoxymethylene (POM), while mechanically robust and offering excellent dimensional stability, is less resistant to prolonged chemical exposure, especially to acids and alkalis, limiting its use in corrosive applications. PVDF also demonstrates better environmental suitability with higher UV and weather resistance compared to POM, which tends to degrade when exposed to outdoor conditions without protective additives.

Machinability and Processing Techniques

Polyvinylidene fluoride (PVDF) offers excellent machinability due to its chemical resistance and thermal stability, making it suitable for precision engineering components requiring tight tolerances. Polyoxymethylene (POM), known for its high stiffness and low friction, also provides superior machinability, allowing complex shapes and smooth finishes through traditional machining processes like milling and turning. Processing techniques for PVDF typically involve injection molding and extrusion under controlled temperatures to preserve its material properties, while POM benefits from injection molding and machining with minimal post-processing due to its dimensional stability and low moisture absorption.

Electrical Properties and Applications

Polyvinylidene fluoride (PVDF) exhibits excellent dielectric properties with a high dielectric constant and strong piezoelectric behavior, making it suitable for sensors, actuators, and electrical insulation in harsh environments. Polyoxymethylene (POM), also known as acetal, offers moderate electrical insulation but excels in mechanical strength and dimensional stability, commonly used in precision electrical components and connectors. PVDF is preferred where superior electrical performance and chemical resistance are critical, while POM is chosen for applications requiring robust mechanical properties and good but less specialized electrical insulation.

Cost Analysis and Economic Considerations

Polyvinylidene fluoride (PVDF) typically incurs higher upfront costs compared to polyoxymethylene (POM) due to its superior chemical resistance and thermal stability, which justify its price in specialized engineering applications. Polyoxymethylene offers a cost-effective solution with excellent mechanical properties and machinability, making it ideal for mass-produced components where budget constraints are critical. Economic considerations include long-term durability and maintenance expenses, with PVDF providing lower lifecycle costs in aggressive chemical environments, whereas POM excels in less demanding settings with stringent cost limitations.

Common Engineering Applications for PVDF and POM

Polyvinylidene fluoride (PVDF) is widely used in chemical processing equipment, piping systems, and electrical insulation due to its excellent chemical resistance, high purity, and UV stability. Polyoxymethylene (POM), known as acetal, finds common applications in precision engineering components such as gears, bearings, and automotive parts because of its high mechanical strength, low friction, and dimensional stability. Both materials serve crucial roles in manufacturing durable, high-performance engineering components tailored to specific operational environments.

Criteria for Material Selection: PVDF vs POM

Polyvinylidene fluoride (PVDF) offers excellent chemical resistance, high thermal stability up to 150degC, and superior UV resistance, making it ideal for corrosive environments and outdoor applications. Polyoxymethylene (POM), also known as acetal, provides higher mechanical strength, stiffness, and dimensional stability, with a typical operating temperature limit around 100degC, suitable for precision mechanical components. Selection criteria between PVDF and POM prioritize chemical exposure, temperature resistance, mechanical loads, and environmental factors such as UV exposure and moisture absorption.
