Polyvinyl chloride vs. phenol formaldehyde for electrical switches - What is The Difference?

Polyvinyl chloride offers excellent insulation, durability, and chemical resistance for electrical switch housings, while phenol formaldehyde provides superior heat resistance and mechanical strength but is more brittle. Choosing between them depends on the switch's operating environment and mechanical stress requirements.

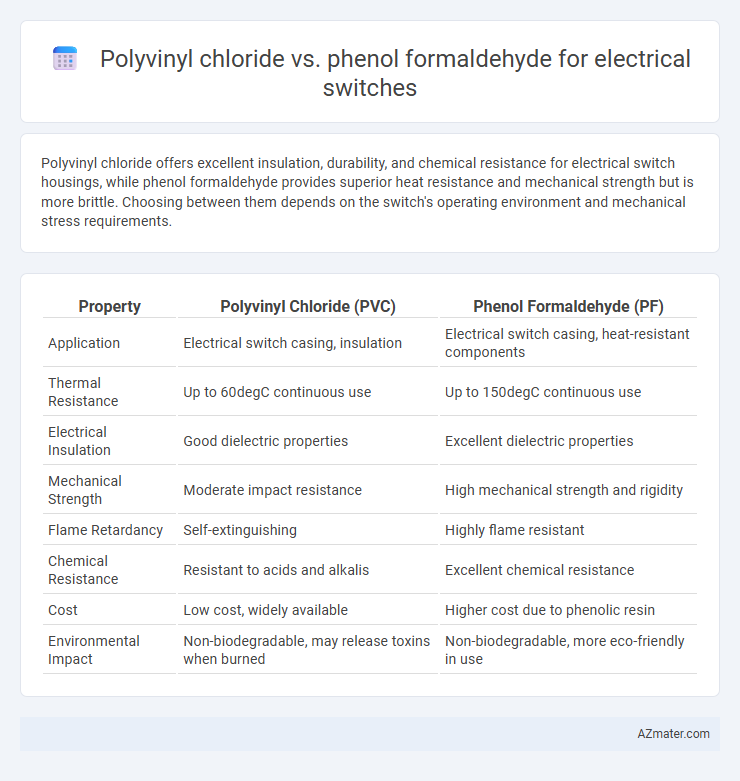

Table of Comparison

Overview of Polyvinyl Chloride and Phenol Formaldehyde

Polyvinyl chloride (PVC) is a versatile thermoplastic polymer known for its excellent insulation properties, chemical resistance, and flexibility, making it widely used in electrical switch housings. Phenol formaldehyde (PF), a thermosetting resin, offers high mechanical strength, heat resistance, and dimensional stability, which are crucial for switch components exposed to high temperatures and mechanical stress. PVC provides cost-effective and corrosion-resistant solutions, while phenol formaldehyde ensures durability and performance in demanding electrical applications.

Chemical Composition and Structure Comparison

Polyvinyl chloride (PVC) is a synthetic polymer composed of repeating vinyl chloride monomers (C2H3Cl) with a linear chain structure, featuring chlorine atoms that provide excellent flame retardancy and electrical insulation for electrical switches. Phenol formaldehyde (PF) resin, a thermosetting polymer formed by the condensation of phenol and formaldehyde, exhibits a highly cross-linked, three-dimensional network structure that delivers superior mechanical strength and heat resistance essential for durable electrical switch components. The chemical composition difference--PVC's chlorinated polymer chains versus PF's aromatic, cross-linked phenolic framework--directly influences their thermal stability, electrical insulating properties, and overall suitability in electrical switch applications.

Mechanical Strength and Durability

Polyvinyl chloride (PVC) offers moderate mechanical strength with good flexibility and impact resistance, making it suitable for electrical switch housings under typical usage conditions. Phenol formaldehyde (PF), known for its high mechanical strength and exceptional rigidity, provides superior durability and resistance to heat, chemicals, and wear, ensuring long-lasting performance in electrical switches exposed to demanding environments. While PVC is cost-effective and resistant to moisture, phenol formaldehyde excels in applications requiring enhanced structural integrity and thermal stability.

Electrical Insulation Properties

Polyvinyl chloride (PVC) exhibits excellent electrical insulation properties due to its high dielectric strength and resistance to electrical conductivity, making it ideal for electrical switch housings. Phenol formaldehyde resin offers superior thermal stability and flame retardancy, maintaining insulation integrity under high temperatures and electrical stress. While PVC provides flexibility and moisture resistance, phenol formaldehyde is preferred for applications demanding robust mechanical strength and long-term electrical insulation performance.

Heat Resistance and Thermal Stability

Polyvinyl chloride (PVC) offers moderate heat resistance with a decomposition temperature around 140degC, making it suitable for low to medium temperature electrical switches but limiting its use in high-temperature environments. Phenol formaldehyde (PF) exhibits superior thermal stability, with heat resistance up to 150-200degC and excellent flame retardant properties, enhancing safety in high-load electrical applications. The choice between PVC and PF for electrical switches depends on the required operating temperature range and thermal endurance, with PF preferred for demanding heat-resistant scenarios.

Flame Retardancy and Safety Considerations

Polyvinyl chloride (PVC) exhibits excellent flame retardancy due to its inherent chlorine content, which releases hydrogen chloride gas that inhibits combustion, making it a safer choice for electrical switches in fire-prone environments. Phenol formaldehyde (PF), known for its high thermal stability and self-extinguishing properties, offers superior mechanical strength and resistance to heat, enhancing safety by preventing deformation or ignition under electrical load. Safety considerations favor PF for applications requiring higher mechanical durability and temperature resistance, while PVC provides cost-effective, flame-retardant insulation with moderate heat tolerance.

Manufacturing Process and Moldability

Polyvinyl chloride (PVC) for electrical switches is produced through polymerization of vinyl chloride monomers, offering excellent moldability via injection molding with precise dimensional control and rapid cooling. Phenol formaldehyde (PF) resin, synthesized from phenol and formaldehyde through a condensation reaction, requires a heat-curing process resulting in a thermosetting material with superior heat resistance but limited moldability and longer cycle times. PVC's thermoplastic nature allows for flexible, complex shapes with high production efficiency, whereas PF's thermoset properties provide durability and electrical insulation but restrict design versatility and increase manufacturing complexity.

Cost Efficiency and Economic Factors

Polyvinyl chloride (PVC) offers superior cost efficiency in manufacturing electrical switches due to its lower raw material and processing expenses compared to phenol formaldehyde, which entails higher production costs from its thermosetting resin properties. PVC enables mass production with reduced cycle times and less energy consumption, translating to lower unit costs and improved economic viability for large-scale applications. Economically, PVC's recyclability and widespread availability contribute to sustainable cost management, whereas phenol formaldehyde's brittleness and higher material cost limit its use in cost-sensitive electrical components.

Environmental Impact and Recyclability

Polyvinyl chloride (PVC) used in electrical switches releases harmful dioxins and toxic chemicals during production and incineration, posing significant environmental hazards, while phenol formaldehyde (PF) is phenolic resin-based, offering better thermal stability and reduced emission of toxic gases when burned. PVC's recyclability is limited due to chlorine content and additives, complicating waste processing and often leading to landfill accumulation. PF, being a thermosetting polymer, is inherently non-recyclable through conventional methods but can be repurposed in composite materials, thus having a slightly lower environmental footprint in end-of-life scenarios.

Suitability for Electrical Switch Applications

Polyvinyl chloride (PVC) excels in electrical switch applications due to its superior insulation properties, flexibility, and resistance to moisture and chemicals, making it ideal for safe and durable switch housing. Phenol formaldehyde (PF) offers exceptional heat resistance and mechanical strength, ensuring reliable performance in high-temperature environments, but it is more brittle and less flexible compared to PVC. The choice between PVC and PF depends on application-specific requirements for thermal stability and mechanical resilience versus flexibility and moisture resistance.
