Polyethylene vs. Polyimide for Flexible Circuits - What is The Difference?

Polyethylene offers excellent moisture resistance and cost-effectiveness for flexible circuits, while polyimide provides superior thermal stability and mechanical durability. Polyimide's high-temperature tolerance up to 400degC makes it ideal for demanding electronic applications compared to polyethylene's lower heat resistance.

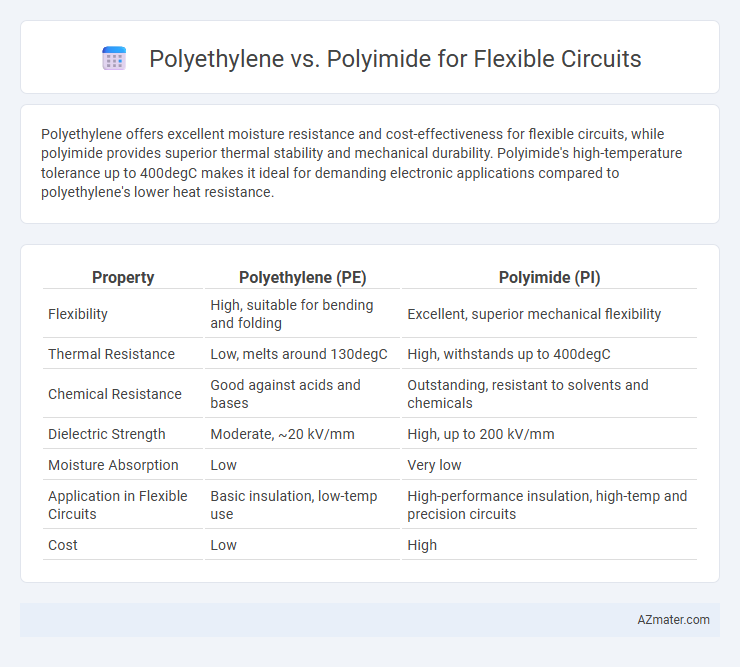

Table of Comparison

Introduction to Flexible Circuits

Flexible circuits commonly use Polyethylene (PE) and Polyimide (PI) as substrate materials, each offering distinct properties for electronic applications. Polyimide is favored for its high thermal stability, chemical resistance, and excellent mechanical flexibility, making it ideal for complex, high-performance flexible circuits in aerospace and medical devices. Polyethylene, although less heat resistant, provides cost-effective, lightweight options with good dielectric properties for simpler, consumer-grade flexible circuit designs.

Overview of Polyethylene and Polyimide

Polyethylene is a lightweight, cost-effective polymer known for its excellent chemical resistance and electrical insulation properties, commonly used in flexible circuits requiring basic insulation and flexibility. Polyimide offers superior thermal stability, mechanical strength, and dielectric properties, making it ideal for high-performance flexible circuits operating in extreme temperatures. The choice between polyethylene and polyimide depends on the application's temperature range, mechanical demands, and electrical requirements.

Material Properties Comparison

Polyethylene (PE) offers excellent electrical insulation and low moisture absorption, making it ideal for lightweight, flexible circuits but with limited thermal resistance up to 80degC. Polyimide (PI) provides superior thermal stability, withstanding temperatures above 250degC, along with high mechanical strength and chemical resistance, ensuring durability in demanding electronic applications. The choice between PE and PI depends on operating environment; PE suits low-cost, low-temperature circuits while PI is preferred for high-performance, high-temperature flexible circuits.

Flexibility and Durability

Polyimide offers superior flexibility and durability compared to polyethylene, making it ideal for flexible circuit applications requiring repeated bending and high thermal stability. Polyimide's molecular structure provides excellent resistance to chemicals, heat, and mechanical stress, ensuring long-term reliability in dynamic environments. In contrast, polyethylene, while flexible and cost-effective, lacks the high-temperature tolerance and mechanical robustness necessary for demanding flexible circuit designs.

Thermal Stability and Performance

Polyimide offers superior thermal stability compared to polyethylene, withstanding temperatures up to 400degC, making it ideal for high-performance flexible circuits in demanding environments. Polyethylene typically endures temperatures only up to 120degC, limiting its application in high-heat scenarios. The enhanced thermal resistance and mechanical properties of polyimide ensure reliable performance and longevity in flexible electronics.

Electrical Insulation Capabilities

Polyimide exhibits superior electrical insulation capabilities compared to polyethylene, maintaining high dielectric strength and low dielectric constant even at elevated temperatures in flexible circuits. Polyimide's thermal stability allows it to withstand extreme operating conditions without degradation, ensuring consistent insulation performance over time. Polyethylene, while cost-effective and flexible, has lower dielectric strength and tends to degrade under high thermal stress, limiting its reliability in high-performance flexible electronic applications.

Chemical Resistance and Environmental Suitability

Polyimide offers superior chemical resistance compared to polyethylene, making it highly suitable for flexible circuits exposed to harsh chemicals and solvents. Polyimide's thermal stability up to 400degC and resistance to moisture and UV radiation enhance its environmental durability, outperforming polyethylene, which is more susceptible to chemical degradation and has lower thermal resistance. These attributes make polyimide the preferred material in industrial and aerospace flexible circuits requiring long-term reliability under extreme environmental conditions.

Cost and Manufacturing Factors

Polyethylene offers lower material costs and simpler processing in flexible circuit manufacturing due to its widespread availability and ease of extrusion molding. Polyimide, while more expensive, provides superior thermal stability and chemical resistance, making it ideal for high-performance applications despite higher manufacturing complexity and specialized equipment requirements. Balancing cost and manufacturing factors, polyethylene suits budget-conscious projects with moderate demands, whereas polyimide is preferred for advanced circuits needing durability under extreme conditions.

Common Applications in Flexible Circuits

Polyethylene is commonly used in flexible circuits for insulation and protective coatings due to its excellent dielectric properties and chemical resistance, making it ideal for consumer electronics and wearable devices. Polyimide, known for its superior thermal stability and mechanical strength, is widely applied in high-performance flexible circuits used in aerospace, medical devices, and flexible printed circuit boards (FPCBs). The choice between polyethylene and polyimide depends on the required temperature range, flexibility, and durability needed in specific flexible circuit applications.

Conclusion: Choosing the Right Material

Polyimide outperforms polyethylene in flexible circuit applications due to its superior thermal stability, chemical resistance, and mechanical strength, which ensures reliability in high-temperature and demanding environments. Polyethylene is suitable for low-cost, low-temperature, and less mechanically stressed circuits where flexibility and electrical insulation are priorities. Selecting the right material depends on the specific operating conditions, budget constraints, and required durability for the flexible circuit design.
