Polybutylene terephthalate vs. Polycarbonate for Electronic Connectors - What is The Difference?

Polybutylene terephthalate (PBT) offers excellent electrical insulation, chemical resistance, and dimensional stability, making it ideal for electronic connectors. Polycarbonate (PC) provides superior impact resistance and heat resistance but may exhibit lower chemical resistance compared to PBT in connector applications.

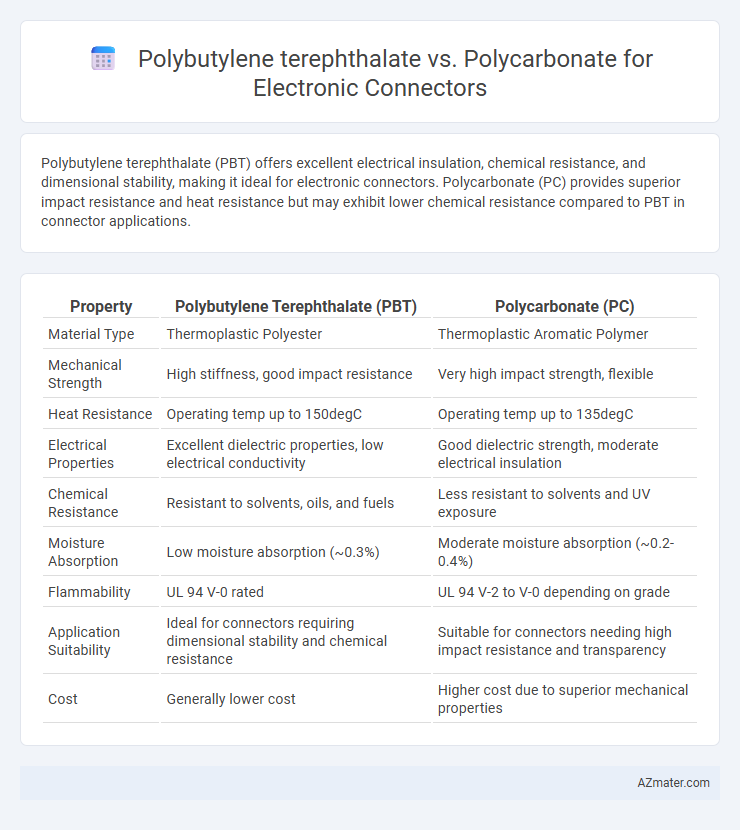

Table of Comparison

Introduction to Polybutylene Terephthalate and Polycarbonate

Polybutylene terephthalate (PBT) is a thermoplastic polyester known for its excellent electrical insulation properties, high mechanical strength, and resistance to heat and chemicals, making it ideal for electronic connectors. Polycarbonate (PC) offers superior impact resistance, dimensional stability, and transparency, with good electrical insulation performance but slightly lower chemical resistance compared to PBT. Choosing between PBT and PC for electronic connectors depends on specific application requirements such as thermal endurance, mechanical stress, and environmental exposure.

Chemical Structure and Material Composition

Polybutylene terephthalate (PBT) is a semi-crystalline thermoplastic polyester composed of repeating units of butylene glycol and terephthalic acid, offering high chemical resistance and dimensional stability ideal for electronic connectors. Polycarbonate (PC), an amorphous thermoplastic polymer made from bisphenol A and phosgene, provides superior impact resistance and optical clarity but lower chemical resistance compared to PBT. The aromatic ester groups in PBT contribute to its thermal and hydrolytic stability, whereas PC's carbonate linkages impart toughness and heat resistance, influencing their respective performance in connector applications.

Mechanical Strength Comparison

Polybutylene terephthalate (PBT) offers excellent mechanical strength with high tensile strength around 50-70 MPa and notable impact resistance, making it suitable for electronic connectors that require durability and dimensional stability. Polycarbonate (PC) surpasses PBT in impact resistance, exhibiting superior toughness with impact strength often exceeding 600 J/m, which provides enhanced resistance to cracking and deformation under mechanical stress. While PBT has better chemical resistance and lower moisture absorption, PC's higher mechanical toughness makes it ideal for connectors exposed to heavy mechanical loading or impact conditions.

Thermal Performance and Heat Resistance

Polybutylene terephthalate (PBT) offers excellent thermal stability with a continuous use temperature up to 155degC, making it reliable for electronic connectors under moderate heat conditions. Polycarbonate (PC) exhibits higher heat resistance, sustaining temperatures up to 140-150degC while providing superior impact strength and dimensional stability during thermal cycling. For applications demanding enhanced thermal performance and resistance to deformation at elevated temperatures, polycarbonate is often preferred over PBT due to its durability under thermal stress.

Electrical Insulation Properties

Polybutylene terephthalate (PBT) exhibits excellent electrical insulation properties, including high dielectric strength and low electrical conductivity, making it suitable for electronic connectors operating in moderate thermal environments. Polycarbonate (PC) offers good insulation but typically has lower dielectric strength compared to PBT, limiting its use in high-voltage or high-frequency applications. PBT's superior resistance to electrical tracking and moisture absorption enhances connector reliability in demanding electrical insulation scenarios.

Flame Retardancy and Safety Standards

Polybutylene terephthalate (PBT) offers excellent flame retardancy with a UL 94 V-0 rating, making it highly suitable for electronic connectors requiring stringent fire safety compliance. Polycarbonate (PC) also provides good flame resistance but generally achieves a UL 94 V-1 or V-0 rating depending on the formulation, with flame retardant additives enhancing its performance. Both materials meet key safety standards such as UL and IEC regulations, but PBT's superior inherent flame resistance often makes it preferable for connectors in high-risk environments.

Processability and Manufacturing Techniques

Polybutylene terephthalate (PBT) offers excellent processability with rapid injection molding cycles and good flow characteristics, making it ideal for high-volume electronic connector manufacturing. Polycarbonate (PC), while tougher and more impact-resistant, typically requires higher processing temperatures and slower cooling times due to its lower crystallinity. Manufacturing techniques for PBT prioritize precise mold temperature control to optimize dimensional stability, whereas PC demands careful thermal management to prevent warpage and maintain optical clarity in connectors.

Cost Efficiency and Availability

Polybutylene terephthalate (PBT) offers superior cost efficiency compared to polycarbonate (PC) due to its lower raw material and processing costs, making it a preferred choice for electronic connectors in budget-sensitive applications. PBT exhibits excellent availability through multiple suppliers globally, ensuring steady supply chains and minimizing production delays. In contrast, polycarbonate, though slightly more expensive, provides higher impact resistance and is less widely available, which can influence both cost and lead times in electronic connector manufacturing.

Application Case Studies in Electronic Connectors

Polybutylene terephthalate (PBT) is widely favored in electronic connectors for its excellent dimensional stability, chemical resistance, and high dielectric strength, making it ideal for automotive and consumer electronics applications where heat resistance and electrical insulation are critical. Polycarbonate (PC) offers superior impact resistance and optical clarity, which is particularly advantageous in connectors requiring robust mechanical properties and precision molding in telecommunications and data transmission devices. Case studies reveal PBT's dominance in high-temperature environments, while PC excels in applications demanding high toughness and transparency, influencing material selection based on specific performance criteria in electronic connector manufacturing.

Conclusion and Material Selection Guidelines

Polybutylene terephthalate (PBT) offers excellent electrical insulation, chemical resistance, and dimensional stability, making it suitable for electronic connectors exposed to harsh environments. Polycarbonate (PC) provides superior impact resistance and higher heat deflection temperature, beneficial for connectors requiring mechanical toughness and thermal endurance. Selecting between PBT and PC depends on the specific application needs: choose PBT for enhanced chemical resistance and stable electrical properties, while PC is preferred for applications demanding high impact strength and elevated temperature performance.
