azmater.com Liquid crystal polymer (LCP) offers superior dimensional stability, low moisture absorption, and excellent electrical insulation properties compared to polyphenylene sulfide (PPS), making it ideal for high-frequency and high-precision electrical components. Polyphenylene sulfide provides higher thermal resistance and chemical stability, suitable for applications requiring exposure to harsh environments and continuous high temperatures.
Table of Comparison
| Property | Liquid Crystal Polymer (LCP) | Polyphenylene Sulfide (PPS) |
|---|---|---|
| Thermal Stability | Up to 260degC continuous use | Up to 230degC continuous use |
| Electrical Insulation | Excellent, high dielectric strength | Good, stable dielectric properties |
| Chemical Resistance | High resistance to solvents and acids | Very high resistance, especially to acids |
| Mechanical Strength | Superior tensile strength and stiffness | Good mechanical properties with toughness |
| Moisture Absorption | Very low moisture uptake | Low moisture absorption |
| Processing | Injection molding, requires precise temperature control | Injection molding, easier processing than LCP |
| Applications | High-performance connectors, microelectronic components | Automotive electrical parts, industrial connectors |
| Cost | Higher cost due to advanced properties | Moderate cost, widely used |
Introduction to LCP and PPS in Electrical Components
Liquid crystal polymer (LCP) and polyphenylene sulfide (PPS) are high-performance polymers widely used in electrical components for their excellent thermal stability and electrical insulating properties. LCP offers superior chemical resistance, low dielectric constant, and dimensional stability, making it ideal for miniaturized connectors and high-frequency circuit boards. PPS provides excellent mechanical strength, flame retardancy, and resistance to moisture and heat, commonly utilized in automotive electronics and industrial electrical housings.
Chemical Structure Comparison: LCP vs. PPS
Liquid crystal polymer (LCP) features a rigid, rod-like molecular structure with highly ordered mesogenic units that enable excellent thermal stability and dimensional stability for electrical components. Polyphenylene sulfide (PPS) consists of a semi-crystalline polymer chain with alternating phenylene rings and sulfide linkages, providing good chemical resistance and mechanical strength but lower structural order compared to LCP. The inherent anisotropic properties of LCP's chemical structure result in superior electrical insulation and minimal thermal expansion, making it ideal for precision electronic applications where PPS offers robustness in chemically aggressive environments.
Thermal Stability and Performance
Liquid crystal polymer (LCP) exhibits superior thermal stability with a high melting point around 280degC and excellent dimensional stability under thermal stress, making it ideal for high-performance electrical components operating in extreme conditions. Polyphenylene sulfide (PPS) offers good thermal resistance with a melting point near 285degC but generally shows lower mechanical strength and dimensional stability compared to LCP under prolonged heat exposure. The enhanced thermal endurance and consistent dielectric properties of LCP contribute to its preferred use in miniaturized, high-density circuit boards and connectors where reliability is critical.
Electrical Insulation Properties
Liquid crystal polymer (LCP) exhibits superior electrical insulation properties with high dielectric strength and low dielectric constant, making it ideal for high-frequency electrical components. Polyphenylene sulfide (PPS) also offers excellent electrical insulation but has a slightly higher dielectric constant and lower thermal stability compared to LCP. LCP's resistance to electrical tracking and low moisture absorption enhances performance in demanding electrical insulation applications.
Mechanical Strength and Durability
Liquid crystal polymer (LCP) offers superior mechanical strength with a high tensile modulus of around 13 GPa, providing excellent dimensional stability and resistance to creep, which is crucial for electrical components subjected to mechanical stress. Polyphenylene sulfide (PPS) exhibits good mechanical properties with a tensile strength typically between 60-70 MPa, but LCP outperforms PPS in durability due to its exceptional thermal resistance up to 260degC and excellent chemical resistance. LCP's low moisture absorption and high fatigue resistance ensure longer lifespan and reliability in demanding electrical applications compared to PPS.
Processing and Molding Differences
Liquid crystal polymer (LCP) offers superior flow properties and higher dimensional stability during injection molding compared to polyphenylene sulfide (PPS), enabling the production of intricate and thin-walled electrical components with tight tolerances. PPS requires higher processing temperatures and exhibits slower crystallization rates, which can increase cycle times and mold complexity in manufacturing electrical parts. The inherent anisotropy of LCP enhances mechanical strength along flow directions, while PPS provides more isotropic properties, influencing mold design and processing parameters for electrical applications.
Moisture and Chemical Resistance
Liquid crystal polymer (LCP) exhibits superior moisture resistance compared to polyphenylene sulfide (PPS), maintaining electrical performance in high-humidity environments with less dimensional swelling. Both LCP and PPS offer excellent chemical resistance, but LCP demonstrates enhanced stability against harsh solvents and aggressive chemicals commonly encountered in electrical components. This makes LCP preferable for applications requiring stringent moisture and chemical durability to ensure long-term reliability.
Cost Analysis: LCP vs. PPS
Liquid crystal polymer (LCP) typically incurs higher raw material costs compared to polyphenylene sulfide (PPS), impacting initial investment in electrical component manufacturing. Processing expenses for LCP are elevated due to specialized molding requirements and slower cycle times relative to PPS, which exhibits more cost-effective and faster thermal processing. Despite higher upfront costs, LCP offers superior thermal stability and electrical insulation properties that may reduce long-term maintenance expenses compared to PPS in high-performance electrical applications.
Typical Applications in Electrical Components
Liquid crystal polymer (LCP) is favored in electrical components for its exceptional dimensional stability, low moisture absorption, and high-frequency performance, making it ideal for connectors, flexible circuits, and semiconductor packaging. Polyphenylene sulfide (PPS) offers excellent chemical resistance, thermal stability, and flame retardancy, commonly used in automotive electrical connectors, switches, and lighting systems. Both materials serve critical roles in high-performance electrical applications, with LCP preferred for precision electronic components and PPS chosen for robust, high-temperature environments.
Choosing the Right Material: Decision Factors
When selecting between Liquid Crystal Polymer (LCP) and Polyphenylene Sulfide (PPS) for electrical components, factors such as thermal stability, dielectric properties, and mechanical strength are crucial. LCP offers superior dimensional stability and excellent electrical insulation at high frequencies, making it ideal for advanced microelectronic applications. PPS provides robust chemical resistance and cost-effectiveness, suitable for moderately demanding environments where thermal tolerance and flame retardancy are essential.

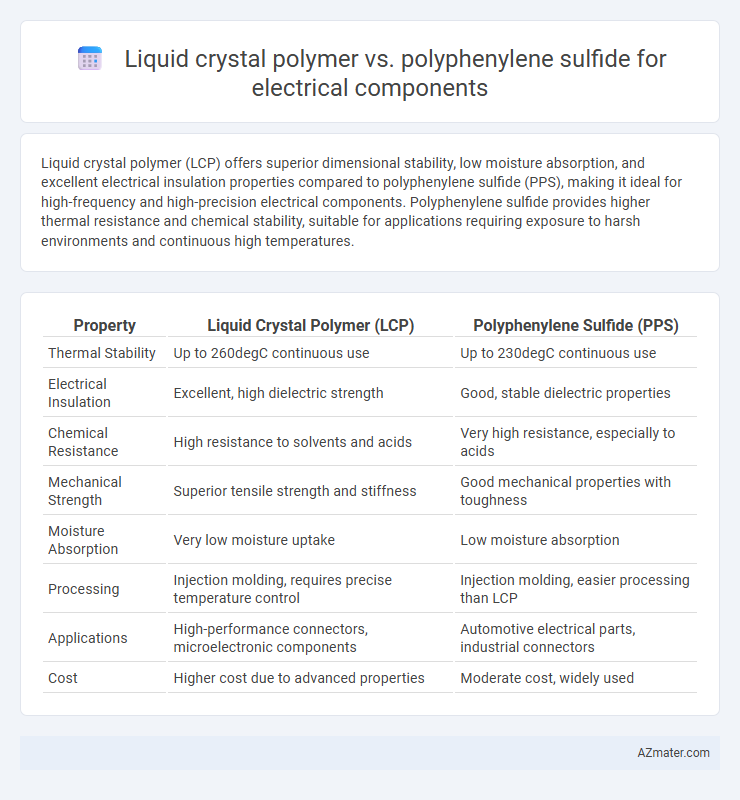

Infographic: Liquid crystal polymer vs Polyphenylene sulfide for Electrical component
