azmater.com Liquid crystal polymer offers superior heat resistance and dimensional stability compared to acrylonitrile butadiene styrene, making it ideal for high-performance electronic component housings. Acrylonitrile butadiene styrene provides cost-effective impact resistance but lacks the thermal endurance required for advanced electronic applications.
Table of Comparison
| Property | Liquid Crystal Polymer (LCP) | Acrylonitrile Butadiene Styrene (ABS) |
|---|---|---|
| Thermal Stability | High (up to 280degC continuous use) | Moderate (up to 100degC continuous use) |
| Mechanical Strength | Excellent tensile strength and stiffness | Good impact resistance but lower tensile strength |
| Chemical Resistance | Superior resistance to solvents and chemicals | Moderate chemical resistance |
| Dimensional Stability | Exceptional with low moisture absorption | Lower; prone to warping with humidity |
| Electrical Properties | Excellent dielectric strength and low signal loss | Good but inferior to LCP in high-frequency applications |
| Processing | Requires precision molding, higher cost | Easy to mold, cost-effective |
| Typical Applications | High-performance electronic housings, connectors | General consumer electronic casings |
Introduction to Liquid Crystal Polymer (LCP) and Acrylonitrile Butadiene Styrene (ABS)
Liquid Crystal Polymer (LCP) offers exceptional thermal stability, chemical resistance, and dimensional precision, making it ideal for high-performance electronic component housing in harsh environments. Acrylonitrile Butadiene Styrene (ABS) provides good impact resistance, ease of fabrication, and cost-effectiveness, commonly used for less demanding electronic housings. The choice between LCP and ABS depends on application requirements for mechanical strength, thermal endurance, and environmental exposure.
Material Properties: LCP vs ABS
Liquid crystal polymer (LCP) offers superior mechanical strength, high thermal stability up to 300degC, and excellent chemical resistance compared to acrylonitrile butadiene styrene (ABS), which typically withstands temperatures up to 105degC and has moderate chemical resistance. LCP exhibits exceptional dimensional stability and low moisture absorption, critical for maintaining precise electronic component housing tolerances and reliability in harsh environments. In contrast, ABS provides easier moldability and cost-effectiveness but lacks the high-performance properties required for advanced electronic applications where durability and thermal endurance are essential.
Mechanical Strength Comparison
Liquid crystal polymer (LCP) exhibits superior mechanical strength compared to acrylonitrile butadiene styrene (ABS) for electronic component housing, offering higher tensile strength typically around 110-150 MPa versus ABS's 40-50 MPa. LCP also provides excellent stiffness with a flexural modulus ranging from 8 to 10 GPa, significantly outperforming ABS, which usually falls between 2 and 3 GPa. The enhanced mechanical properties of LCP contribute to improved durability and resistance to deformation under mechanical stress, making it ideal for demanding electronic applications.
Thermal Stability and Heat Resistance
Liquid crystal polymer (LCP) offers superior thermal stability and heat resistance compared to acrylonitrile butadiene styrene (ABS), with LCP maintaining structural integrity at temperatures exceeding 280degC while ABS typically withstands heat only up to about 100degC before deforming. The high melting point and low thermal expansion coefficient of LCP make it ideal for electronic component housings exposed to high operating temperatures and thermal cycling. In contrast, ABS's lower heat resistance limits its use in high-performance electronics where consistent thermal performance is critical.
Electrical Insulation Capabilities
Liquid crystal polymer (LCP) offers superior electrical insulation properties compared to acrylonitrile butadiene styrene (ABS) due to its low dielectric constant and high volume resistivity, making it ideal for high-frequency electronic component housings. LCP exhibits excellent moisture resistance and thermal stability, ensuring consistent insulation performance in demanding environments, whereas ABS tends to absorb more moisture, which can degrade its insulating effectiveness over time. The inherent molecular alignment of LCP contributes to its exceptional electrical insulation capabilities, providing reliable protection against dielectric breakdown in sensitive electronic applications.
Chemical Resistance and Environmental Durability
Liquid crystal polymer (LCP) exhibits superior chemical resistance and environmental durability compared to acrylonitrile butadiene styrene (ABS) in electronic component housing applications. LCP withstands aggressive solvents, acids, and alkalis without degradation, maintaining mechanical integrity in harsh chemical environments. Its low moisture absorption and excellent thermal stability ensure long-lasting performance in demanding conditions, whereas ABS is more prone to chemical attack and environmental stress cracking.
Design Flexibility and Moldability
Liquid crystal polymer (LCP) offers superior design flexibility and moldability for electronic component housing due to its ability to form intricate, high-precision geometries with excellent dimensional stability. Acrylonitrile butadiene styrene (ABS) provides easier processing and cost-effective molding but lacks the fine detail capability and thermal resistance of LCP. The high flow characteristics and low shrinkage of LCP enable complex, thin-walled designs that are challenging to achieve with ABS.
Cost Analysis: LCP vs ABS
Liquid crystal polymer (LCP) offers superior mechanical strength and chemical resistance compared to acrylonitrile butadiene styrene (ABS), but its material and processing costs are significantly higher, often 3 to 5 times more expensive per kilogram. ABS provides a cost-effective solution with lower raw material and injection molding expenses, making it suitable for high-volume electronic component housings when budget constraints are critical. While LCP ensures enhanced thermal stability and durability, ABS remains the preferred choice where cost efficiency outweighs premium performance requirements in electronic enclosure manufacturing.
Applications in Electronic Component Housing
Liquid crystal polymer (LCP) is highly valued for electronic component housing due to its exceptional thermal stability, low moisture absorption, and excellent electrical insulation properties, making it ideal for connectors, circuit board substrates, and high-frequency components. Acrylonitrile butadiene styrene (ABS) offers good impact resistance, ease of molding, and cost-effectiveness, widely used in consumer electronics housings and protective covers where moderate mechanical and thermal demands are sufficient. LCP's superior dimensional stability and chemical resistance make it preferable for high-performance, miniaturized electronic housings, while ABS suits applications prioritizing versatility and economic production.
Conclusion: Choosing the Right Material
Liquid crystal polymer (LCP) offers superior chemical resistance, high thermal stability, and excellent dimensional stability, making it ideal for electronic component housing in demanding environments. Acrylonitrile butadiene styrene (ABS) provides cost-effective manufacturing with good impact resistance and ease of molding but falls short under high-temperature or chemically aggressive conditions. Selecting LCP over ABS ensures enhanced durability and performance for electronics exposed to harsh operational stresses, justifying the higher material cost for critical applications.

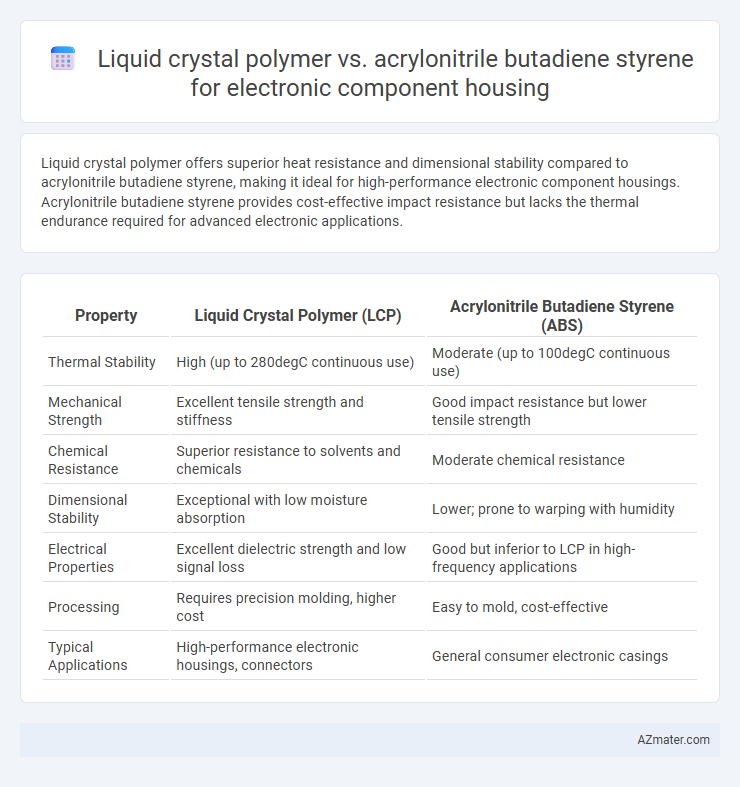

Infographic: Liquid crystal polymer vs Acrylonitrile butadiene styrene for Electronic component housing
