Shape memory alloy vs. nickel for microelectromechanical systems - What is The Difference?

Shape memory alloys in microelectromechanical systems (MEMS) offer superior actuation capabilities and reversible deformation compared to traditional nickel, enhancing device responsiveness and durability. Nickel provides excellent mechanical strength and chemical stability but lacks the intrinsic shape recovery properties critical for adaptive MEMS applications.

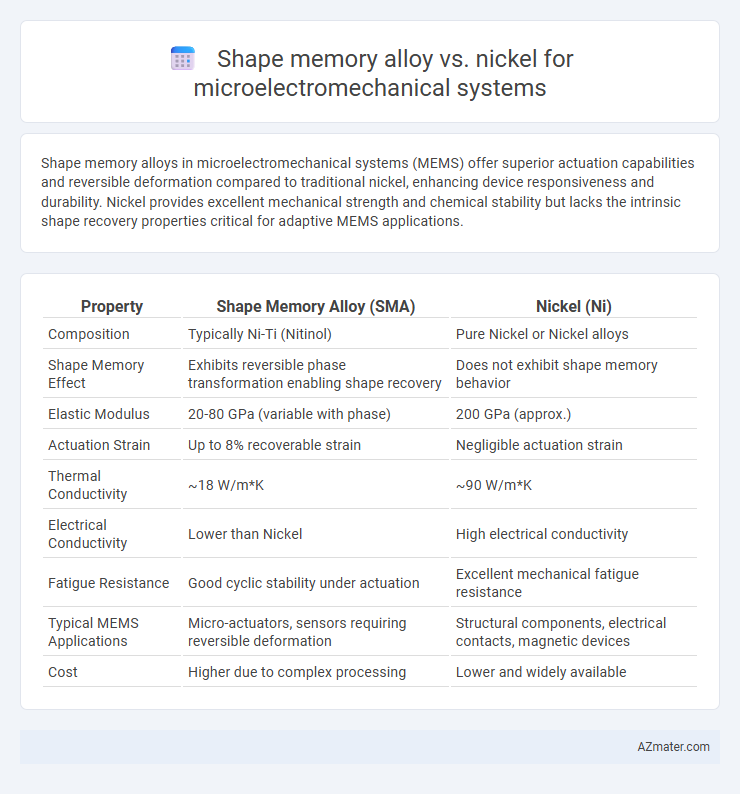

Table of Comparison

Introduction to Microelectromechanical Systems (MEMS)

Microelectromechanical Systems (MEMS) integrate mechanical elements, sensors, actuators, and electronics on a common silicon substrate through microfabrication technology. Shape memory alloys (SMAs) offer unique advantages in MEMS actuators due to their ability to undergo reversible phase transformations, enabling substantial shape changes and force generation at micron scales. Nickel, frequently used in MEMS as a structural and electroplated material, provides excellent mechanical strength and conductivity but lacks the intrinsic actuation capabilities demonstrated by shape memory alloys.

Overview of Shape Memory Alloys in MEMS

Shape memory alloys (SMAs) in Microelectromechanical Systems (MEMS) offer unique properties such as superelasticity and the ability to undergo reversible phase transformations, enabling precise actuation and sensing capabilities. Compared to nickel, SMAs like nickel-titanium (NiTi) provide higher strain recovery and enhanced fatigue resistance, crucial for reliable microactuators and microsensors. The integration of SMAs in MEMS devices allows for compact, efficient designs with improved mechanical performance and energy efficiency in applications ranging from biomedical devices to aerospace systems.

Nickel as a Traditional Material in MEMS

Nickel is a traditional material widely used in Microelectromechanical Systems (MEMS) due to its excellent mechanical properties, including high strength and good wear resistance. Compared to Shape Memory Alloys (SMAs), nickel offers superior electrical conductivity and stability, which are critical for reliable MEMS sensor and actuator performance. Although SMAs provide unique actuation capabilities through phase transformation, nickel's well-established fabrication techniques and compatibility with standard MEMS processes make it a preferred choice in many microfabricated devices.

Material Properties: Shape Memory Alloy vs Nickel

Shape memory alloys (SMAs) exhibit unique phase transformation capabilities enabling reversible deformation and recovery, making them highly advantageous for microelectromechanical systems (MEMS) requiring actuation and sensing functions. Nickel, commonly used in MEMS, offers high electrical conductivity, excellent corrosion resistance, and mechanical stability but lacks the intrinsic actuation properties of SMAs. Compared to nickel, SMAs provide superior strain capacity and energy density, whereas nickel's material properties favor structural integrity and reliable electrical performance within MEMS applications.

Actuation Performance: Response and Efficiency

Shape memory alloys (SMAs) exhibit superior actuation performance in microelectromechanical systems (MEMS) through their high strain recovery and force generation, enabling efficient shape transformation under thermal stimuli. Nickel-based actuators offer faster response times due to their electromagnetic actuation capabilities but generally suffer from higher power consumption and lower strain levels compared to SMAs. The choice between SMAs and nickel depends on balancing the trade-offs between response speed, actuation efficiency, and mechanical strain requirements in MEMS applications.

Durability and Fatigue Resistance Comparison

Shape memory alloys (SMAs) exhibit superior durability and fatigue resistance compared to conventional nickel in microelectromechanical systems (MEMS), due to their ability to undergo reversible phase transformations without permanent deformation. SMAs such as NiTi maintain functional integrity over millions of cycles, providing enhanced longevity in dynamic MEMS applications. Nickel, while offering good mechanical strength, generally succumbs to fatigue-induced wear more quickly under repetitive stress, limiting its operational lifetime in MEMS devices.

Fabrication and Integration Challenges

Shape memory alloys (SMAs) in microelectromechanical systems (MEMS) present fabrication challenges due to complex phase transformations and precise thermal treatments required, often leading to issues with stress control and fatigue resistance. Nickel offers easier integration with established MEMS fabrication processes like electroplating and chemical vapor deposition, but faces challenges in achieving the desired mechanical properties and surface uniformity at micro scales. Both materials require careful optimization of deposition parameters and compatibility with silicon-based substrates to ensure reliable device performance and long-term stability.

Cost Analysis: Shape Memory Alloy vs Nickel

Shape memory alloys (SMAs) generally incur higher initial costs compared to nickel due to their complex manufacturing processes and the use of precious metals like nickel-titanium (NiTi) compounds. Nickel offers a more cost-effective option for microelectromechanical systems (MEMS) due to its widespread availability, lower raw material costs, and well-established fabrication techniques such as electroplating. Despite the higher upfront cost of SMAs, their unique properties like superelasticity and phase transformation can reduce long-term expenses by enhancing device reliability and functionality.

Application Suitability in MEMS Devices

Shape memory alloys (SMAs) exhibit superior actuation capabilities and high recoverable strains, making them ideal for adaptive MEMS devices such as micro-actuators and sensors requiring large deformation and shape recovery. Nickel provides excellent electrical conductivity and mechanical robustness, favoring applications like MEMS switches and components that demand high fatigue resistance and stable cycling performance. The choice between SMA and Nickel in MEMS hinges on required mechanical properties, actuation mechanisms, and operational durability specific to the device's functional objectives.

Future Trends and Innovations in MEMS Materials

Shape memory alloys (SMAs) and nickel are pivotal materials in microelectromechanical systems (MEMS), with SMAs offering superior actuation capabilities due to their unique phase transformation properties, enabling future trends in adaptive and reconfigurable MEMS devices. Innovations in SMA fabrication techniques, such as nanoscale patterning and additive manufacturing, enhance their integration and performance at micro scales, surpassing traditional nickel-based MEMS in flexibility and responsiveness. Research is increasingly focused on developing multifunctional MEMS materials combining the biocompatibility and fatigue resistance of nickel with the smart properties of SMAs for next-generation biomedical and microsensor applications.
