Metal matrix composite vs. copper for electrical connector - What is The Difference?

Metal matrix composites (MMCs) offer superior mechanical strength and wear resistance compared to pure copper in electrical connectors, enhancing durability under high-stress environments. Copper provides excellent electrical conductivity but lacks the structural robustness of MMCs, making MMCs ideal for connectors requiring both conductivity and mechanical reliability.

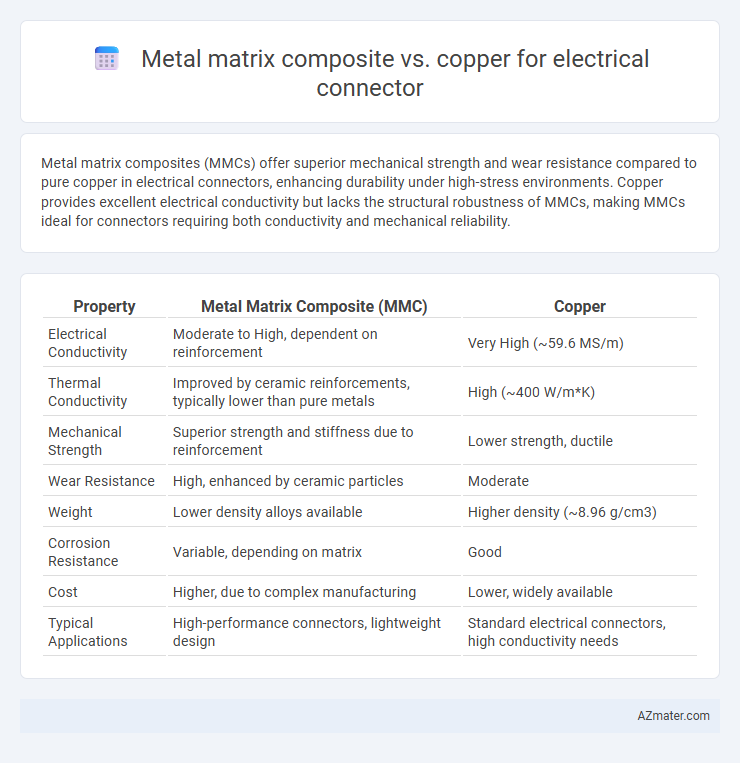

Table of Comparison

Overview of Electrical Connector Materials

Metal matrix composites (MMCs) offer enhanced mechanical strength and thermal stability compared to traditional copper in electrical connectors, improving durability under high-stress conditions. Copper remains a preferred material due to its superior electrical conductivity and excellent corrosion resistance, ensuring efficient signal transmission and reliability in various applications. Combining copper with MMCs can optimize performance by balancing conductivity with mechanical robustness, making them suitable for advanced electrical connector designs.

Introduction to Metal Matrix Composites (MMC)

Metal Matrix Composites (MMCs) combine metallic matrices, such as aluminum or copper, with reinforcing materials like ceramics or fibers to enhance electrical connectors' mechanical strength, thermal stability, and corrosion resistance. MMCs offer superior wear resistance and weight reduction compared to pure copper, making them ideal for high-performance electrical connector applications requiring durability and efficient conductivity. Their tailored thermal expansion coefficients and improved electrical conductivities enable enhanced connector lifespan and performance under demanding operational conditions.

Properties of Copper in Electrical Connectors

Copper's excellent electrical conductivity, typically around 5.96 x 10^7 S/m, makes it the preferred choice for electrical connectors, ensuring minimal energy loss and efficient current flow. Its high thermal conductivity, approximately 400 W/m*K, prevents overheating and maintains connector reliability under heavy loads. Copper also offers superior corrosion resistance and ductility, enabling robust mechanical performance and long-term durability in demanding electrical environments.

Electrical Conductivity Comparison: MMC vs Copper

Metal matrix composites (MMCs) used in electrical connectors typically exhibit lower electrical conductivity compared to pure copper, with copper showcasing conductivity around 59.6 MS/m at room temperature, while MMCs vary significantly based on the metal matrix and reinforcement phases, often ranging between 10 to 40 MS/m. Copper's exceptional electrical conductivity stems from its high electron mobility and minimal resistivity (~1.68 uO*cm), making it the preferred choice for applications demanding maximum current flow and minimal energy loss. MMCs, although less conductive, offer enhanced mechanical properties, thermal stability, and reduced weight, creating a trade-off scenario where electrical performance is sacrificed for improved durability and design flexibility in connectors.

Thermal Performance: MMC vs Copper

Metal matrix composites (MMCs) offer superior thermal stability and enhanced thermal conductivity compared to standard copper, making them ideal for high-temperature electrical connectors. Copper has excellent intrinsic thermal conductivity, typically around 400 W/mK, but MMCs can be engineered with ceramic reinforcements to maintain performance under thermal cycling and reduce thermal expansion mismatch. The improved thermal fatigue resistance and dimensional stability of MMCs lead to longer connector lifespan in demanding electrical applications where copper might degrade or deform.

Mechanical Strength and Durability

Metal matrix composites (MMCs) exhibit superior mechanical strength and enhanced durability compared to copper in electrical connectors, due to their reinforced ceramic or fiber phases that improve wear resistance and reduce deformation under mechanical stress. Copper, while offering excellent electrical conductivity, tends to suffer from lower hardness and higher susceptibility to creep and fatigue over time, especially in high-vibration environments. The improved mechanical robustness of MMCs translates into longer connector lifespan and reliable performance in demanding industrial applications.

Corrosion and Wear Resistance

Metal matrix composites (MMCs) offer significantly enhanced corrosion and wear resistance compared to pure copper in electrical connectors, due to their reinforced ceramic or particulate phases that reduce metal degradation. Copper, while highly conductive, is prone to oxidation and surface wear, which can compromise connector longevity and electrical performance over time. MMCs maintain structural integrity and stable conductivity under harsh environmental conditions, making them ideal for connectors exposed to abrasive or corrosive environments.

Weight and Design Flexibility

Metal matrix composites (MMCs) offer significantly reduced weight compared to copper, making them ideal for lightweight electrical connector applications where minimizing mass is critical. MMCs provide enhanced design flexibility due to their customizable composition and reinforcement options, allowing tailored mechanical and thermal properties that copper cannot match. Copper remains superior in electrical conductivity but is limited in weight savings and intricate design adaptability compared to advanced MMC materials.

Cost Analysis and Material Availability

Metal matrix composites (MMCs) typically offer higher performance in electrical connectors due to superior strength-to-weight ratio and enhanced thermal stability but come at a significantly higher cost compared to copper, driven by complex manufacturing processes and raw material expenses. Copper remains the industry standard due to its excellent electrical conductivity, widespread availability, and relatively low cost, making it more cost-effective for large-scale production. Material availability favors copper, which is abundant and well-established in supply chains, whereas MMCs often rely on more specialized and less readily available materials, impacting lead times and overall project budgets.

Application Suitability and Industry Trends

Metal matrix composites (MMCs) offer superior mechanical strength, wear resistance, and thermal stability compared to traditional copper, making them increasingly suitable for high-performance electrical connectors in automotive, aerospace, and electronics industries. Copper remains favored for its excellent electrical conductivity and cost-effectiveness, especially in low- to medium-power applications such as consumer electronics and power distribution. Industry trends emphasize the integration of MMCs in connectors exposed to harsh environments or higher thermal loads, driven by demands for miniaturization, reliability, and lightweight components in emerging electric vehicle and renewable energy markets.
