azmater.com Germanate glass offers higher refractive index and better thermal stability compared to silica glass, making it more suitable as a laser host for high-power laser applications. Silica glass excels in chemical durability and low phonon energy, which benefits laser efficiency in low-power or UV laser systems.
Table of Comparison
| Property | Silica Glass | Germanate Glass |
|---|---|---|
| Refractive Index | ~1.46 | ~1.6 - 1.8 |
| Optical Transparency | Excellent in UV to IR range | High, especially in visible to near-IR |
| Laser Damage Threshold | High, up to 10 J/cm2 (ns pulses) | Moderate, generally lower than silica |
| Thermal Stability | Very high, softening point ~1713degC | Good, softening point ~900degC |
| Nonlinear Optical Properties | Low nonlinear refractive index | Higher nonlinear refractive index, suitable for nonlinear optics |
| Rare-Earth Ion Solubility | Limited, lower doping concentration | High, allows higher rare-earth doping |
| Applications as Laser Host | Ideal for high power lasers with broad transparency | Preferred for compact lasers and high gain media |
Introduction to Laser Host Materials
Silica glass, widely utilized as a laser host material, offers high optical transparency, excellent thermal stability, and low phonon energy, making it ideal for high-power laser applications. Germanate glass provides enhanced refractive index and broader infrared transmission compared to silica, supporting efficient lasing performance in mid-infrared fiber lasers. Both materials serve critical roles in laser technology, with silica favored for its durability and germanate prioritized for its advantageous optical properties in specialized laser systems.
Overview of Silica Glass
Silica glass, known for its exceptional thermal stability and high optical transparency in the ultraviolet to near-infrared spectrum, serves as a widely used laser host material in photonics applications. Its low phonon energy minimizes non-radiative decay, enhancing laser efficiency and output power. Compared to germanate glass, silica glass offers superior mechanical strength and chemical durability, making it ideal for high-power and high-temperature laser operations.
Overview of Germanate Glass
Germanate glass, composed primarily of germanium dioxide (GeO2), offers a higher refractive index and better infrared transmission compared to silica glass, making it an excellent laser host material for mid-infrared laser applications. Its superior nonlinear optical properties and broader transmission window enhance energy efficiency and beam quality in high-power lasers. The robust thermal stability and lower phonon energy of germanate glass enable improved rare-earth ion doping efficiency, resulting in higher laser gain and output power.
Structural Differences: Silica vs Germanate
Silica glass features a network of SiO4 tetrahedra with strong Si-O bonds providing high thermal stability and low phonon energy, making it ideal for laser host applications requiring durability and efficient energy transfer. Germanate glass, composed mainly of GeO4 tetrahedra, exhibits a more flexible structure with larger refractive indices and higher nonlinear optical coefficients, enhancing laser performance in mid-infrared regions. Structural differences such as bond lengths, network connectivity, and phonon energy levels between silica and germanate glasses critically influence their optical properties and suitability as laser hosts.
Optical Properties Comparison
Silica glass exhibits superior optical transparency in the ultraviolet to near-infrared range, with low intrinsic absorption and high damage threshold, making it ideal for high-power laser hosts. Germanate glass offers higher refractive indices and stronger rare-earth ion solubility, enhancing laser efficiency and gain bandwidth but typically presents higher optical losses and lower thermal stability than silica. The choice between silica and germanate glass for laser hosts depends on the required balance between optical clarity, nonlinear properties, and thermal handling in specific laser applications.
Thermal Stability and Conductivity
Silica glass exhibits exceptional thermal stability with a high melting point around 1713degC, making it highly resistant to thermal distortion during laser operation, while germanate glass typically has lower thermal stability due to a melting point near 1050degC. In terms of thermal conductivity, silica glass offers moderate values approximately 1.4 W/m*K, facilitating effective heat dissipation to prevent thermal lensing, whereas germanate glass tends to have significantly lower thermal conductivity, often below 0.8 W/m*K, limiting efficient heat management. These differences make silica glass more favorable as a laser host material when high-power laser stability and effective thermal conductivity are critical.
Rare-Earth Ion Compatibility
Silica glass offers excellent chemical durability and low phonon energy, making it compatible with a wide range of rare-earth ions like Er3+ and Yb3+, which exhibit efficient luminescence and minimal non-radiative decay. Germanate glass, with a higher refractive index and lower phonon energy than silica, enhances rare-earth ion solubility and emission efficiency, especially for ions like Nd3+ and Ho3+, enabling stronger laser output and broader wavelength coverage. The choice between silica and germanate glass as laser hosts depends on balancing thermal stability and rare-earth ion concentration to optimize laser performance and lifetime.
Fabrication Processes and Challenges
Silica glass, widely used as a laser host due to its excellent thermal and optical properties, benefits from mature fabrication techniques like flame hydrolysis and chemical vapor deposition, allowing high purity and uniformity but faces challenges in doping with rare-earth ions because of its low solubility and clustering effects. Germanate glass offers higher rare-earth solubility and broader infrared transmission, enhancing laser performance, yet its fabrication processes such as melt quenching and controlled crystallization require precise temperature control to prevent phase separation and crystallization that degrade optical quality. Both materials demand optimized process parameters to balance dopant incorporation, thermal stability, and optical homogeneity, critical for efficient and reliable laser operation.
Performance in High-Power Laser Applications
Silica glass exhibits superior thermal stability and higher damage threshold, making it ideal for high-power laser applications requiring excellent optical clarity and resistance to laser-induced damage. Germanate glass offers enhanced refractive index and nonlinear optical properties, which can improve beam quality and energy efficiency but generally has lower thermal conductivity and damage threshold compared to silica. The choice between silica and germanate glass depends on balancing thermal management and optical performance tailored to the specific power density and operational wavelength of the laser system.
Cost and Availability Considerations
Silica glass offers high availability and lower cost compared to Germanate glass, making it a widely preferred laser host material for commercial and industrial applications. Germanate glass, while superior in terms of refractive index and certain optical properties, often incurs higher production expenses and limited supply due to complex manufacturing processes. Cost-efficiency and widespread availability position silica glass as the dominant choice for large-scale laser host deployment.

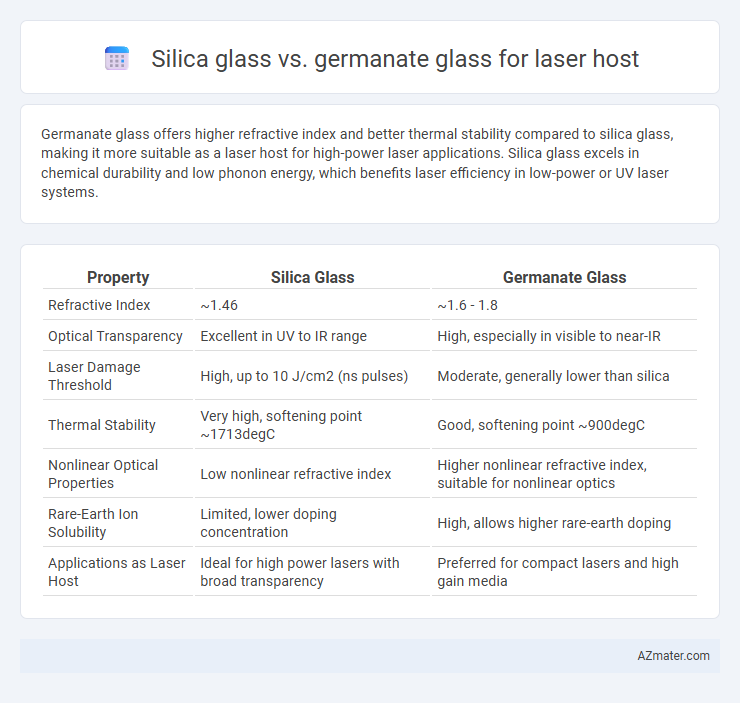

Infographic: Silica glass vs Germanate glass for Laser host
