azmater.com Fused quartz offers superior thermal stability and chemical resistance, making it ideal for high-temperature insulation applications. Foam glass provides excellent moisture resistance and compressive strength, suitable for damp or load-bearing insulation environments.
Table of Comparison
| Property | Fused Quartz | Foam Glass |
|---|---|---|
| Composition | Pure silica (SiO2), non-crystalline | Recycled glass with gas-filled bubbles |
| Thermal Conductivity | ~1.38 W/m*K | ~0.04 W/m*K (Excellent insulation) |
| Density | 2.2 g/cm3 | 0.2 - 0.6 g/cm3 (Lightweight) |
| Thermal Shock Resistance | High (Very low thermal expansion) | Moderate (Depends on foam structure) |
| Compressive Strength | 60 - 80 MPa | 1 - 10 MPa (Lower strength) |
| Water Absorption | Negligible | Zero (Closed-cell structure) |
| Applications | Optics, high-temperature environments, electronics | Building insulation, cryogenics, fireproofing |
| Cost | High | Moderate to low |
Introduction to Fused Quartz and Foam Glass
Fused quartz is a high-purity material made from melted silica, known for its exceptional thermal stability, low thermal conductivity, and resistance to thermal shock, making it ideal for insulation in high-temperature environments. Foam glass is a lightweight, porous insulation material created by foaming crushed glass, offering excellent thermal insulation, moisture resistance, and fireproof properties suitable for building and industrial applications. Both materials provide effective insulation solutions, with fused quartz excelling in extreme heat resistance and foam glass offering durability and moisture control.
Material Composition and Structure
Fused quartz is made from high-purity silicon dioxide (SiO2) that is melted and cooled to form a dense, non-porous material with excellent thermal stability and low thermal expansion, making it ideal for high-temperature insulation. Foam glass consists of crushed glass particles combined with a foaming agent and then heated, resulting in a lightweight, rigid structure with closed-cell porosity that provides high compressive strength and superior thermal insulation through trapped gas pockets. While fused quartz offers exceptional thermal resistance and durability in extreme conditions, foam glass excels in lightweight insulation applications requiring moisture resistance and structural integrity.
Thermal Insulation Properties Comparison
Fused quartz exhibits exceptionally low thermal conductivity, typically around 1.3 W/m*K, making it highly effective for high-temperature insulation applications. Foam glass offers superior insulation performance with thermal conductivity values as low as 0.05 W/m*K due to its closed-cell porous structure, which traps air and reduces heat transfer. This significant difference positions foam glass as a more efficient insulator for cold and moderate temperature environments, whereas fused quartz is preferred for extreme heat resistance.
Mechanical Strength and Durability
Fused quartz exhibits superior mechanical strength with a high modulus of elasticity and excellent resistance to thermal shock, making it ideal for demanding insulation applications where structural integrity is critical. Foam glass offers significant durability advantages due to its closed-cell structure, providing excellent compressive strength, moisture resistance, and long-term stability in harsh environments. While fused quartz delivers exceptional mechanical resilience, foam glass excels in durability and resistance to physical and environmental degradation, positioning each material for specific insulation needs.
Moisture and Chemical Resistance
Fused quartz offers exceptional moisture resistance due to its non-porous, dense structure, making it highly effective in damp environments, while foam glass provides excellent moisture barrier properties thanks to its closed-cell, impermeable foam matrix. Chemically, fused quartz is highly inert and withstands aggressive chemicals, acids, and alkalis without degradation, whereas foam glass resists a wide range of chemicals but can be susceptible to strong alkalis over time. Both materials excel in insulation applications requiring moisture and chemical resistance, with fused quartz favored in high-purity settings and foam glass preferred for structural insulation in corrosive environments.
Weight and Density Differences
Fused quartz has a much higher density, typically around 2.2 g/cm3, resulting in a heavier material compared to foam glass, which has a density ranging from 0.1 to 0.5 g/cm3 and offers significantly lighter weight. The low density of foam glass enhances its suitability for insulation in applications requiring weight reduction without compromising thermal performance. Weight-sensitive construction projects often favor foam glass due to its superior strength-to-weight ratio and thermal insulating properties, whereas fused quartz is preferred where higher thermal stability is essential despite its higher mass.
Environmental Impact and Sustainability
Fused quartz exhibits low thermal conductivity and exceptional chemical durability, making it a sustainable insulation material with minimal environmental impact due to its long lifespan and recyclability. Foam glass, made from recycled glass, offers high thermal efficiency and impermeability, significantly reducing landfill waste and energy consumption during production. Both materials contribute to green building practices, but foam glass stands out for its use of recycled content and closed-cell structure, enhancing sustainability in insulation applications.
Installation and Handling Ease
Fused quartz offers superior thermal stability and low thermal expansion, making it ideal for high-temperature insulation but requires careful handling due to its brittleness and weight. Foam glass is lightweight, easy to cut and install, providing excellent moisture resistance and compressive strength, which simplifies onsite handling and fitting. The choice between fused quartz and foam glass hinges on balancing durability with ease of installation, where foam glass excels in user-friendly application processes.
Cost Analysis and Economic Considerations
Fused quartz insulation typically incurs higher initial costs due to its superior thermal stability and low thermal conductivity, making it ideal for high-temperature applications, whereas foam glass offers more affordable bulk pricing with moderate insulating properties suitable for general use. Foam glass's cost-effectiveness is enhanced by its lightweight nature and resistance to moisture, which can reduce long-term maintenance expenses compared to fused quartz. Evaluating the total cost of ownership, including installation, durability, and energy savings, positions foam glass as a budget-friendly option, while fused quartz remains a premium choice for specialized insulation needs.
Applications: Best Use Cases for Each Material
Fused quartz excels in high-temperature insulation for industrial furnaces, semiconductor manufacturing, and optical devices due to its exceptional thermal stability and low thermal expansion. Foam glass is ideal for building insulation, cryogenic storage, and lightweight structural panels, offering excellent moisture resistance, compressive strength, and thermal insulation at moderate temperatures. Each material is best selected based on the operating environment, with fused quartz suited for extreme heat and foam glass for structural and moisture-resistant insulation applications.

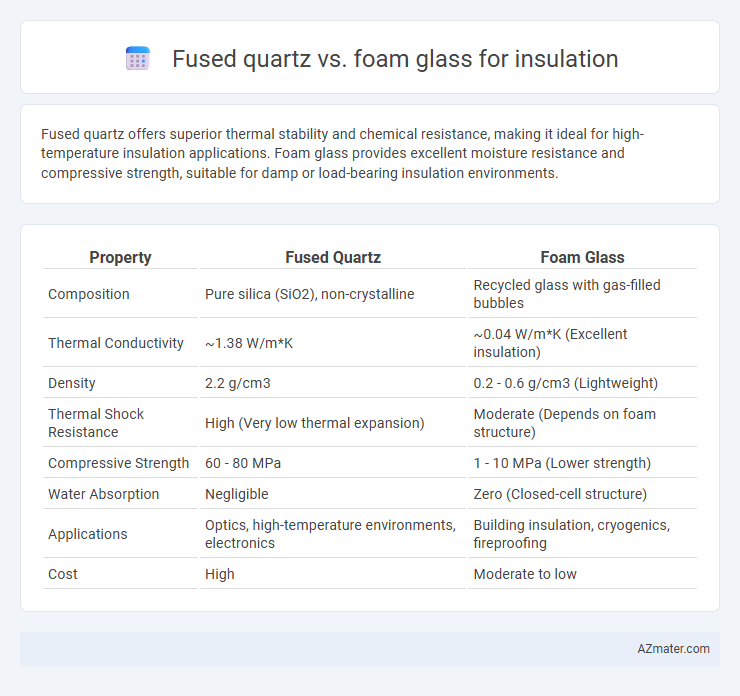

Infographic: Fused quartz vs Foam glass for Insulation
