Foam glass vs. glass fiber for insulation - What is The Difference?

Foam glass offers superior moisture resistance and compressive strength compared to glass fiber, making it ideal for high-load insulation applications. Glass fiber provides excellent thermal insulation and cost-effectiveness but lacks the durability and impermeability of foam glass.

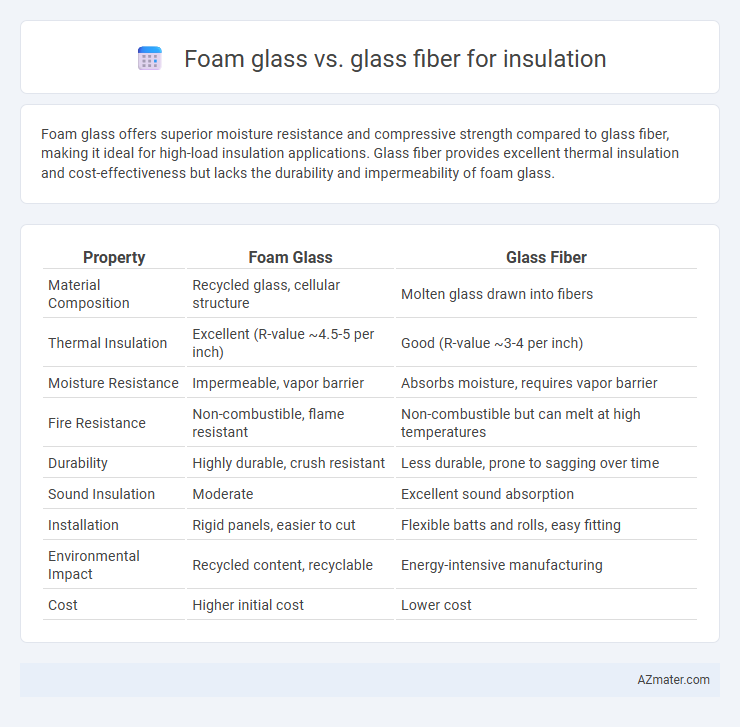

Table of Comparison

Introduction to Foam Glass and Glass Fiber Insulation

Foam glass insulation consists of crushed glass fused into a cellular structure, providing excellent thermal resistance, moisture impermeability, and fire resistance, making it ideal for industrial and construction applications. Glass fiber insulation is made from fine strands of spun glass, offering high thermal efficiency, sound absorption, and flexibility for residential and commercial use. Both materials serve as effective insulators but differ significantly in density, durability, and specific application suitability.

Composition and Manufacturing Processes

Foam glass insulation is made from crushed glass recycled and expanded using a foaming agent during a high-temperature sintering process, resulting in a rigid and impermeable cellular structure. Glass fiber insulation consists of fine fibers formed by melting silica sand and other raw materials, which are drawn or spun into fibers and then bonded with a resin to create flexible mats or batts. The manufacturing of foam glass involves a high-temperature closed-cell formation that provides moisture resistance, while glass fiber production emphasizes fiber length and density for thermal performance and sound absorption.

Thermal Insulation Performance Comparison

Foam glass offers superior thermal insulation performance due to its closed-cell structure, resulting in low thermal conductivity typically around 0.04 W/m*K, which effectively minimizes heat transfer. Glass fiber insulation, with thermal conductivity ranging from 0.035 to 0.045 W/m*K, provides good thermal resistance but can be less effective in moisture-prone environments where its insulating properties degrade. Foam glass also exhibits higher durability and moisture resistance, maintaining consistent thermal performance over time compared to glass fiber.

Fire Resistance and Safety Ratings

Foam glass insulation offers superior fire resistance with a non-combustible structure, achieving Class A fire ratings and effectively preventing flame spread and smoke emission. Glass fiber insulation, while also non-combustible and often rated Class A, can lose performance when exposed to intense heat due to binder degradation, potentially releasing harmful particulates. Foam glass provides enhanced safety in fire scenarios with its stability, high melting point, and resistance to toxic gas production compared to glass fiber materials.

Moisture Resistance and Durability

Foam glass insulation offers superior moisture resistance due to its closed-cell structure, effectively preventing water absorption and resisting mold growth, making it ideal for damp environments. Glass fiber insulation, while cost-effective and flexible, tends to absorb moisture, which can reduce its insulating properties and promote microbial growth over time. Durability-wise, foam glass provides enhanced compressive strength and longevity under harsh conditions, whereas glass fiber may degrade faster when exposed to continuous moisture or mechanical stress.

Environmental Impact and Sustainability

Foam glass insulation, made from recycled glass, offers excellent sustainability due to its inert, non-toxic nature and high recyclability, significantly reducing landfill waste and environmental harm. Glass fiber insulation, while energy-efficient in production, traditionally involves higher embodied energy and potential respiratory risks, though modern advancements have improved its sustainability credentials. Foam glass provides superior durability and moisture resistance, enhancing long-term performance and reducing the need for frequent replacements, which further minimizes environmental impact.

Installation Methods and Ease of Handling

Foam glass insulation offers straightforward installation through cutting and fitting rigid panels or blocks, providing excellent dimensional stability and minimal dust release, which ensures a cleaner and safer handling process on-site. Glass fiber insulation requires careful handling with protective equipment due to its fibrous nature, and installation often involves rolling or fitting batts that can be more time-consuming and prone to gaps if not properly compressed. The rigidity and ease of shaping foam glass make it preferable for precise applications, while glass fiber's flexibility suits irregular spaces but demands more meticulous installation effort.

Cost Analysis and Economic Considerations

Foam glass insulation typically has a higher upfront cost due to its manufacturing process and durability but offers long-term savings through enhanced thermal resistance and resistance to moisture and pests. Glass fiber insulation is generally more affordable initially, making it a popular choice for budget-conscious projects, but may incur higher maintenance or replacement expenses over time due to degradation and reduced insulating performance. Evaluating lifecycle costs is essential, where foam glass often proves more cost-effective in applications requiring longevity and minimal maintenance, while glass fiber suits short-term or lower-budget installations.

Common Applications in Construction

Foam glass is widely used in construction for insulating foundations, basements, and roofing due to its high compressive strength, moisture resistance, and thermal insulation properties. Glass fiber insulation is commonly utilized in walls, attics, and HVAC systems because of its cost-effectiveness, flexibility, and excellent thermal and acoustic insulation capabilities. Both materials offer effective energy-saving solutions, with foam glass preferred in damp or structural load-bearing scenarios and glass fiber suited for general-purpose insulation.

Choosing the Right Insulation: Foam Glass vs Glass Fiber

Foam glass insulation provides superior moisture resistance, high compressive strength, and excellent thermal performance, making it ideal for industrial and high-moisture environments. Glass fiber insulation offers cost-effectiveness, easy installation, and good thermal and acoustic properties, suitable for residential and general-purpose applications. Selecting between foam glass and glass fiber depends on specific project needs such as moisture exposure, structural load, and budget constraints.
