azmater.com Crystal fiber offers superior signal clarity and lower attenuation compared to plastic fiber in telecommunication cables. Plastic fiber provides greater flexibility and cost-effectiveness but suffers from higher signal loss over long distances.
Table of Comparison
| Feature | Crystal Fiber | Plastic Fiber |
|---|---|---|
| Material | High-purity silica (crystalline quartz) | Polymethyl methacrylate (PMMA) or other plastics |
| Transmission Loss | ~0.2 dB/km (low attenuation) | 1-2 dB/m (high attenuation) |
| Bandwidth | Up to terabits per second (Tbps) | Limited to megabits per second (Mbps) |
| Distance Range | Up to 80+ km without repeaters | Typically under 100 meters |
| Durability | High mechanical strength, heat resistant | Flexible but less heat resistant |
| Cost | Higher initial cost | Lower cost, economical for short runs |
| Application | Long-distance, high-speed telecom networks | Short-distance, in-building or LAN networks |
Introduction to Optical Fiber Technologies
Optical fiber technologies utilize crystal fiber and plastic fiber as core materials, each offering distinct advantages in telecommunication cables. Crystal fibers, made from silica glass, provide superior signal transmission, low attenuation, and high bandwidth capabilities, making them ideal for long-distance communication. Plastic optical fibers, though limited by higher attenuation and lower bandwidth, offer flexibility, ease of installation, and cost-effectiveness for short-range telecommunication applications.
Overview of Crystal Fiber in Telecommunications
Crystal fiber, also known as photonic crystal fiber (PCF), offers superior light guidance and low attenuation for telecommunications, enabling higher bandwidth and longer transmission distances compared to conventional plastic optical fibers. Constructed using a microstructured arrangement of air holes running along its length, crystal fiber provides improved control over modal properties and dispersion, essential for high-speed data transmission. Its advanced design supports applications in fiber-optic communication networks by enhancing signal quality and minimizing loss over extended fiber links.
Key Features of Plastic Fiber Cables
Plastic fiber cables for telecommunication offer high flexibility and durability, making them ideal for short-distance data transmission and indoor applications. They have a larger core diameter compared to crystal (glass) fiber, which simplifies installation and connection, reducing overall maintenance costs. Plastic fibers also exhibit resistance to bending and physical stress, enhancing their suitability in environments where cables are frequently moved or routed through tight spaces.
Transmission Performance: Crystal vs Plastic Fiber
Crystal fiber, commonly known as glass optical fiber, offers superior transmission performance with lower attenuation rates around 0.2 dB/km at 1550 nm, enabling longer-distance data transmission without signal loss. Plastic optical fiber typically exhibits higher attenuation values, ranging from 1 dB/m to 100 dB/km depending on the type, limiting its effective transmission distance but providing flexibility and cost advantages for short-range applications. Crystal fiber also supports higher bandwidth and faster data rates, making it ideal for telecommunications where signal integrity and long-haul transmission are critical.
Signal Attenuation and Bandwidth Comparison
Crystal fiber, typically made from high-purity silica glass, exhibits significantly lower signal attenuation, often less than 0.2 dB/km, enabling longer transmission distances without repeaters. Plastic optical fiber (POF) generally experiences higher attenuation rates around 1 dB/m, limiting its effective use to short-range applications. In terms of bandwidth, crystal fibers support ultra-high bandwidths exceeding 100 GHz*km, making them ideal for high-speed telecommunication networks, whereas plastic fibers are constrained to lower bandwidths, typically under 1 GHz*km, suitable for lower data rate transmissions.
Durability and Environmental Resistance
Crystal fiber, typically represented by glass optical fiber, offers superior durability with high tensile strength and excellent resistance to electromagnetic interference, making it ideal for long-distance telecommunication cables. Plastic optical fiber, while more flexible and easier to install, generally exhibits lower durability and reduced environmental resistance, particularly vulnerability to moisture, temperature fluctuations, and UV exposure. For demanding outdoor or harsh environmental conditions, crystal fiber remains the preferred choice due to its robustness and long-term performance stability.
Flexibility and Installation Considerations
Crystal fiber optic cables offer superior flexibility compared to plastic fiber cables, allowing easier bending and routing in complex telecommunication installations. Plastic fiber cables tend to be stiffer, which can limit their use in tight spaces and increase installation time and labor costs. Installation considerations favor crystal fibers in high-density environments due to their enhanced durability and lower signal attenuation during bending.
Cost Analysis: Crystal Fiber vs Plastic Fiber
Crystal fiber typically incurs higher initial costs due to advanced manufacturing processes and superior signal transmission capabilities, while plastic fiber offers a more budget-friendly alternative with lower production expenses. Maintenance and replacement costs for crystal fiber are generally lower because of its durability and longer lifespan, whereas plastic fiber may require more frequent upgrades owing to its susceptibility to environmental degradation. Evaluating total cost of ownership reveals crystal fiber as a cost-effective solution in high-performance telecommunication networks, whereas plastic fiber suits cost-sensitive, short-distance applications.
Applications in Modern Telecommunication Networks
Crystal fiber, known for its ultra-low attenuation and high bandwidth capabilities, is increasingly preferred in long-haul and high-capacity telecommunication networks where signal integrity over vast distances is critical. Plastic fiber, offering greater flexibility, durability, and cost-effectiveness, is widely used in short-distance applications such as local area networks (LANs), data centers, and residential fiber-to-the-home (FTTH) deployments. The choice between crystal and plastic fibers depends largely on performance requirements, environmental conditions, and budget constraints within modern telecommunication infrastructures.
Future Trends and Industry Recommendations
Crystal fiber, utilizing photonic crystal technology, offers superior bandwidth and lower signal attenuation compared to traditional plastic fiber, making it a promising candidate for next-generation telecommunication cables. Future trends indicate increasing adoption of crystal fibers in high-speed data transmission and 5G network infrastructures due to their enhanced capacity and environmental resilience. Industry recommendations emphasize investing in crystal fiber research and integrating it with existing fiber optic systems to maximize network efficiency and future-proof telecommunication infrastructure.

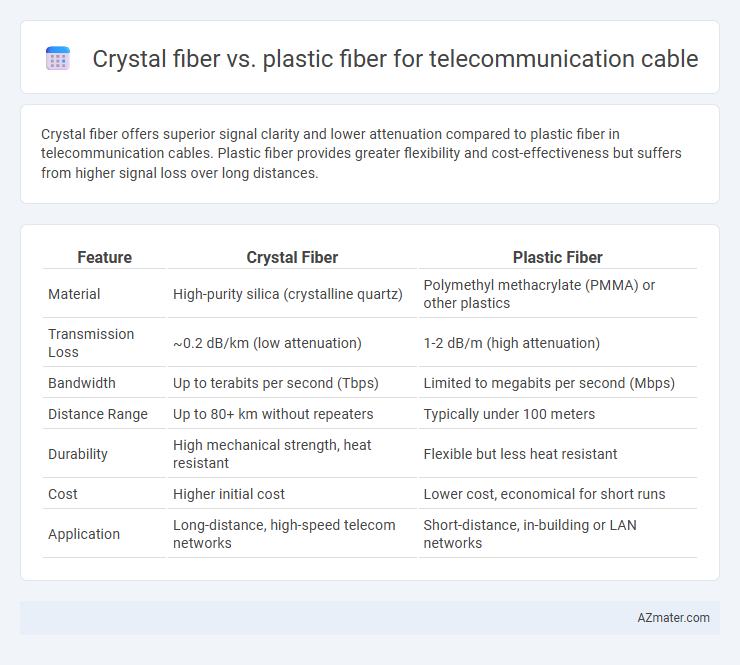

Infographic: Crystal fiber vs Plastic fiber for Telecommunication cable
