azmater.com Self-compacting concrete (SCC) offers superior flowability and filling ability without vibration, ideal for complex road pavement structures requiring high durability and reduced construction time. Roller-compacted concrete (RCC) provides high strength and cost-effective construction through compaction by rollers, making it suitable for heavy-duty road pavements with fast load-bearing capacity.
Table of Comparison
| Property | Self-Compacting Concrete (SCC) | Roller-Compacted Concrete (RCC) |
|---|---|---|
| Definition | Highly flowable concrete that spreads and compacts under its own weight without vibration | Low-slump, dry concrete compacted using rollers, similar to asphalt paving technique |
| Consistency | Fluid, slump flow of 650-800 mm | Low slump, typically 0-50 mm |
| Placement Method | Poured and allowed to flow and self-level | Spread with a paver and compacted with heavy rollers |
| Compaction | No mechanical compaction required | High compaction with vibratory rollers |
| Strength Characteristics | High early-age strength; uniform density | High compressive strength; excellent durability |
| Surface Texture | Smooth, uniform surface finish | Textured surface; skid resistance depends on rolling pattern |
| Typical Applications | Complex formworks, heavily reinforced sections, urban pavement | High-traffic roads, industrial pavements, earthworks stabilization |
| Cost | Higher material and admixture cost | Lower cost due to minimal use of admixtures and high productivity |
| Curing Requirement | Standard moist curing necessary | Rapid curing; often uses steam or accelerated methods |
| Environmental Impact | Lower noise and vibration; reduced energy use in compaction | Lower water demand; reduced cement content possible |
Introduction to Self-Compacting Concrete and Roller-Compacted Concrete
Self-compacting concrete (SCC) is a highly flowable, non-segregating concrete that spreads into place and around reinforcement without mechanical consolidation, improving surface finish and quality in road pavement applications. Roller-compacted concrete (RCC) is a dry, stiff mix compacted with rollers, offering high durability and rapid construction for heavy-duty pavements such as highways and industrial floors. Both SCC and RCC optimize pavement performance by enhancing workability and structural integrity, with SCC focusing on ease of placement and RCC emphasizing compaction and strength.
Key Material Properties and Composition
Self-compacting concrete (SCC) for road pavement is characterized by high flowability, achieved through increased fines content, superplasticizers, and optimized aggregate grading, ensuring uniform consolidation without vibration. Roller-compacted concrete (RCC) relies on a drier mix with lower water content and no slump, utilizing a higher coarse aggregate volume and minimal fines to enable compaction by rollers, resulting in high density and strength. Key material differences include SCC's fine particle matrix and chemical admixtures for fluidity, contrasting with RCC's stiff mix composition optimized for rapid compaction and durability under heavy traffic loads.
Workability and Placement Techniques
Self-compacting concrete (SCC) offers superior workability due to its high flowability and deformation capacity, enabling it to fill complex road pavement molds without segregation or the need for mechanical vibration. Roller-compacted concrete (RCC), characterized by its low slump and zero-slump consistency, requires compaction through vibratory rollers, making it suitable for rapid, large-scale pavement construction with enhanced load-bearing performance. The placement of SCC focuses on ease and precision in confined spaces, whereas RCC emphasizes speed and durability through heavy compaction methods on road surfaces.
Strength and Durability Comparisons
Self-compacting concrete (SCC) offers superior uniformity and high compressive strength typically ranging from 30 to 70 MPa, resulting in excellent durability and resistance to cracking in road pavements. Roller-compacted concrete (RCC) provides high strength, often above 25 MPa, with increased density and abrasion resistance due to its compaction method, making it cost-effective for heavy traffic loads. In terms of durability, SCC excels in complex structural requirements with enhanced tensile strength and reduced permeability, while RCC is known for resilience against freeze-thaw cycles and load-induced stresses in large pavement areas.
Construction Speed and Efficiency
Self-compacting concrete (SCC) offers superior construction speed and efficiency for road pavement by eliminating the need for mechanical vibration, allowing for faster placement and reduced labor costs. Roller-compacted concrete (RCC) enables rapid paving through its use of heavy rollers for compaction, providing a durable pavement layer with minimal curing time, ideal for high-traffic roads requiring quick reopening. SCC is preferred for complex forms and tight spaces due to its high flowability, while RCC excels in large-scale, high-volume projects where swift compaction and early load-bearing capacity are critical.
Surface Finish and Road Performance
Self-compacting concrete (SCC) provides a smoother surface finish due to its high flowability and ability to fill intricate molds without vibration, resulting in improved ride quality and reduced noise on road pavements. Roller-compacted concrete (RCC), while offering high compressive strength and durability for heavy traffic, typically has a rougher surface finish that may require additional treatments for optimal skid resistance and smoother vehicle operation. The superior uniformity of SCC surfaces enhances long-term performance by minimizing surface defects, whereas RCC's robust structure supports heavy loads but may experience increased surface wear under continuous traffic stress.
Cost Analysis and Economic Factors
Self-compacting concrete (SCC) generally incurs higher initial costs due to specialized admixtures and stringent quality control but reduces labor expenses and accelerates construction timelines for road pavements. Roller-compacted concrete (RCC) offers economic advantages through lower material costs, minimal cement content, and rapid placement using conventional earthmoving equipment, making it cost-effective for large-scale pavement projects. Evaluations of life-cycle costs indicate RCC performs better in budget-sensitive infrastructure with moderate traffic loads, while SCC suits projects demanding superior surface quality and complex formworks despite higher upfront investments.
Environmental Impact and Sustainability
Self-compacting concrete (SCC) significantly reduces construction noise and dust due to its high flowability, minimizing environmental disturbance compared to roller-compacted concrete (RCC), which involves heavier compaction equipment and higher energy consumption. SCC's optimized mix reduces cement content and enhances durability, lowering CO2 emissions and extending pavement life, while RCC's lower cement use can also decrease carbon footprint but may require more frequent maintenance. Sustainable road pavement solutions favor SCC for urban areas with stringent environmental regulations, whereas RCC remains suitable for high-volume traffic routes prioritizing rapid construction and recyclability.
Typical Applications in Road Pavement
Self-compacting concrete (SCC) is predominantly used in road pavement projects requiring complex forms, limited vibration compaction, and enhanced surface finish, such as bridge decks and urban intersections. Roller-compacted concrete (RCC) is favored for high-volume road pavements, industrial pavements, and heavy-duty airport taxiways due to its rapid placement and high strength with minimal curing. Both materials optimize construction efficiency, but SCC excels in architectural and repair applications, while RCC is ideal for large-scale, durable pavement layers.
Choosing the Right Concrete for Road Projects
Self-compacting concrete (SCC) offers superior flowability and excellent surface finish, making it ideal for complex road geometries and urban projects requiring minimal vibration during placement. Roller-compacted concrete (RCC) provides high strength and rapid construction benefits through its dry consistency, suited for heavy-duty pavements and large-scale industrial roads with faster cycle times. Selecting between SCC and RCC depends on project-specific factors like traffic load, construction speed, site accessibility, and cost-efficiency priorities.

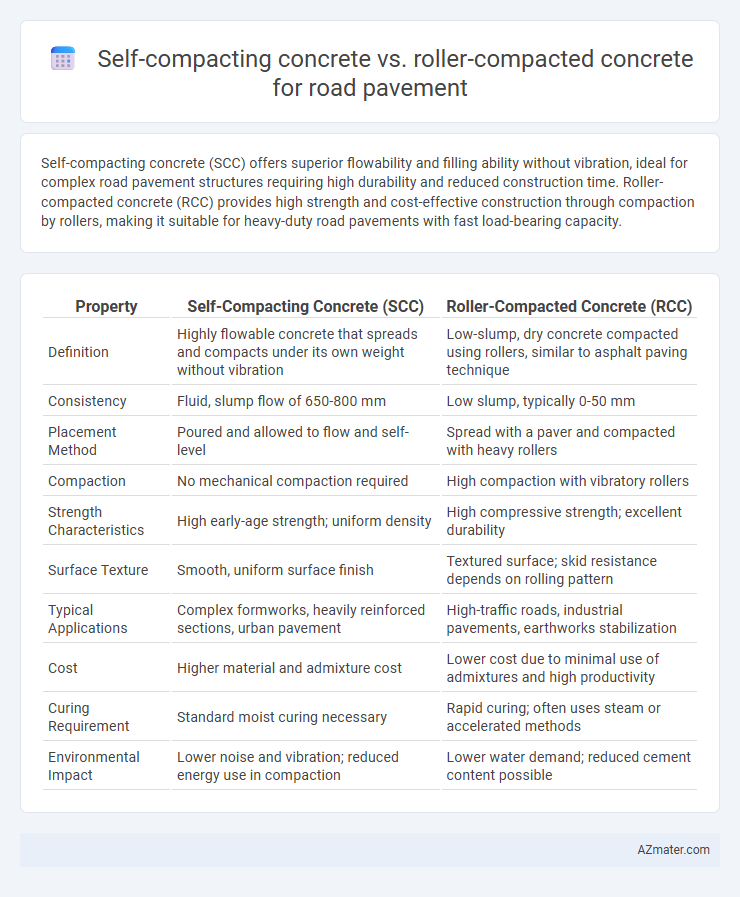

Infographic: Self-compacting concrete vs Roller-compacted concrete for Road pavement
