azmater.com Rapid-setting concrete cures within hours, enabling faster tunnel lining repairs and minimizing downtime. Shotcrete offers versatile application with superior adhesion and reduced rebound, making it ideal for complex tunnel geometries.
Table of Comparison
| Property | Rapid-Setting Concrete | Shotcrete |
|---|---|---|
| Setting Time | Typically 15-30 minutes | 3-10 minutes (accelerated mix) |
| Application Method | Cast or pumped into formwork | Sprayed pneumatically onto surface |
| Adhesion | Good bonding to existing concrete | Excellent adhesion, ideal for overhead/vertical surfaces |
| Compressive Strength | 30-50 MPa within 24 hours | 25-45 MPa depending on mix and application |
| Suitability for Tunnel Lining Repair | Best for quick structural patches and formwork repairs | Preferred for irregular surfaces, thin layers, and overhead repairs |
| Durability | High, resistant to chemical attack | High, with proper curing and mix design |
| Cost | Moderate to high, depending on mix design | Moderate, efficient material usage reduces waste |
| Equipment Requirements | Standard concrete mixing and placing equipment | Specialized shotcrete spraying equipment needed |
Introduction to Tunnel Lining Repair Challenges
Tunnel lining repair demands materials that offer high early strength and excellent adhesion to withstand harsh underground conditions. Rapid-setting concrete provides quick strength gain and minimizes downtime but may require precise mix design to control shrinkage and durability. Shotcrete delivers superior adaptability to irregular surfaces and crack bridging capabilities, making it ideal for complex repairs where formwork is impractical.
Overview of Rapid-Setting Concrete
Rapid-setting concrete offers accelerated curing times, enabling tunnel lining repairs to be completed efficiently with minimal downtime. Its high early strength and resistance to harsh environmental conditions make it ideal for urgent structural restoration in tunnels. The material's formulation allows it to bond effectively with existing concrete, ensuring durability and extending the service life of repaired tunnel linings.
Overview of Shotcrete Technology
Shotcrete technology involves pneumatically projecting concrete or mortar at high velocity onto tunnel surfaces, ensuring excellent adhesion and compaction for structural repair. This method allows rapid application in confined spaces, creating dense, durable linings ideal for tunnel stabilization and waterproofing. Compared to rapid-setting concrete, shotcrete provides superior adaptability to complex geometries and reduced rebound waste, optimizing tunnel lining repair efficiency.
Application Methods: Rapid-Setting Concrete vs Shotcrete
Rapid-setting concrete for tunnel lining repair is typically applied using traditional formwork to shape and contain the material, allowing for controlled curing and high structural integrity. Shotcrete, sprayed pneumatically onto the surface without formwork, offers rapid application and excellent adhesion to irregular tunnel surfaces, making it ideal for complex geometries. While rapid-setting concrete requires longer preparation and placement times, shotcrete enables faster repairs with less labor and material waste, especially beneficial in confined tunneling environments.
Setting Time and Early Strength Comparison
Rapid-setting concrete achieves initial set within 15 to 30 minutes, providing early strength typically reaching 20 MPa in 24 hours, making it ideal for urgent tunnel lining repairs. Shotcrete, applied via spraying, gains initial set in approximately 20 to 40 minutes with early compressive strength developing between 15 to 25 MPa within the first day. Both materials offer quick setting and early strength benefits, but rapid-setting concrete generally provides faster stabilization, essential for maintaining tunnel structural integrity during immediate repair interventions.
Durability and Longevity in Tunnel Environments
Rapid-setting concrete offers enhanced durability in tunnel environments due to its quick curing time, which minimizes exposure to moisture and chemical attacks during setting. Shotcrete, applied pneumatically, provides excellent adhesion and dense compaction, resulting in superior resistance to cracking and long-term wear caused by dynamic tunnel stresses. Both materials demonstrate strong longevity, but shotcrete's ability to conform to complex tunnel geometries often leads to more effective and durable tunnel lining repairs.
Cost Considerations and Material Efficiency
Rapid-setting concrete offers cost savings through reduced curing times, enabling faster project completion and lower labor expenses in tunnel lining repair. Shotcrete enhances material efficiency by directly spraying concrete onto surfaces, minimizing waste and ensuring better adhesion, which can reduce overall material costs. Comparing both, rapid-setting concrete is advantageous for time-sensitive projects, while shotcrete provides superior coverage and resource utilization, impacting budget allocation differently.
Safety and Environmental Impact
Rapid-setting concrete offers enhanced safety in tunnel lining repair by minimizing downtime and reducing worker exposure to hazardous conditions, while shotcrete provides effective application in confined spaces with lower rebound and dust generation, improving air quality for workers. Environmentally, rapid-setting concrete reduces energy consumption through shorter curing periods and decreases the carbon footprint of repair projects, whereas shotcrete contributes to waste minimization due to precise material application and less overspray. Both materials support safer and more sustainable tunnel repair by balancing accelerated construction timelines with reduced environmental impact.
Case Studies: Real-World Tunnel Repair Projects
Case studies on tunnel lining repair demonstrate that rapid-setting concrete is often preferred for projects requiring fast strength gain and minimal downtime, such as emergency repairs on highway tunnels in urban areas. Shotcrete has proven effective in reinforcing complex geometries and irregular surfaces, with successful applications in deep metro tunnels where layer-by-layer application enhances structural integrity. Real-world examples include the Gotthard Base Tunnel in Switzerland, which utilized shotcrete for flexible lining repairs, and the New York City subway system, where rapid-setting concrete expedited critical maintenance under heavy operational constraints.
Choosing the Best Solution for Tunnel Lining Repair
Rapid-setting concrete offers accelerated curing times, allowing for faster tunnel lining repair and reduced downtime, while shotcrete provides superior adhesion and versatility in irregular tunnel geometries. Evaluating factors such as project timeline, accessibility, structural requirements, and environmental conditions is essential to selecting the optimal material. For tunnels requiring quick reopening and structural strength, rapid-setting concrete is preferred, whereas shotcrete excels in complex or overhead applications due to its spray-applied, moldable nature.

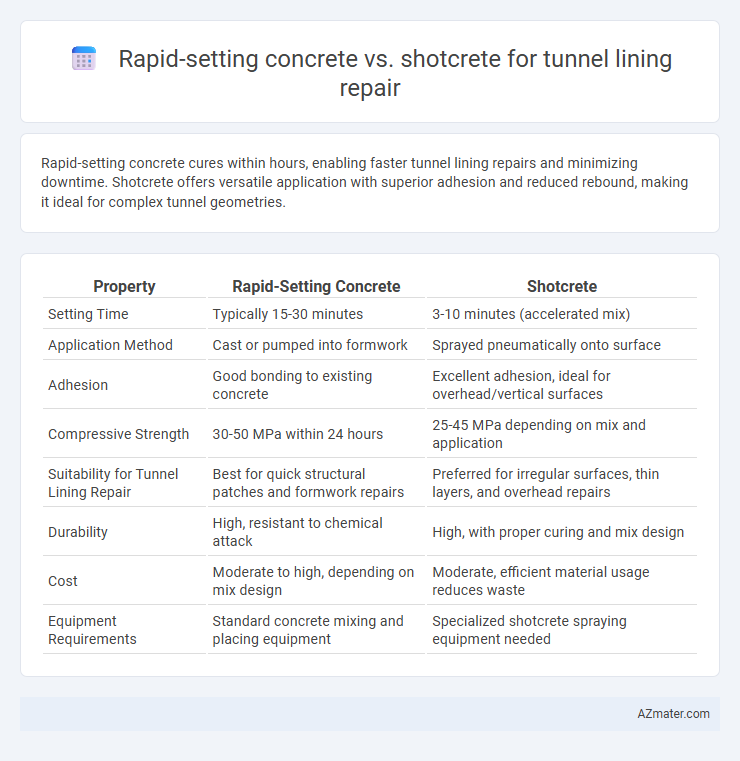

Infographic: Rapid-setting concrete vs Shotcrete for Tunnel lining repair
