Ultra-high-performance concrete vs. air-entrained concrete for roadway - What is The Difference?

Ultra-high-performance concrete (UHPC) offers superior compressive strength exceeding 150 MPa and enhanced durability for roadways compared to traditional air-entrained concrete, which typically ranges between 30-50 MPa and primarily provides frost resistance through microscopic air bubbles. UHPC improves roadway lifespan by minimizing permeability and cracking, while air-entrained concrete is optimized for freeze-thaw cycles but has lower structural performance.

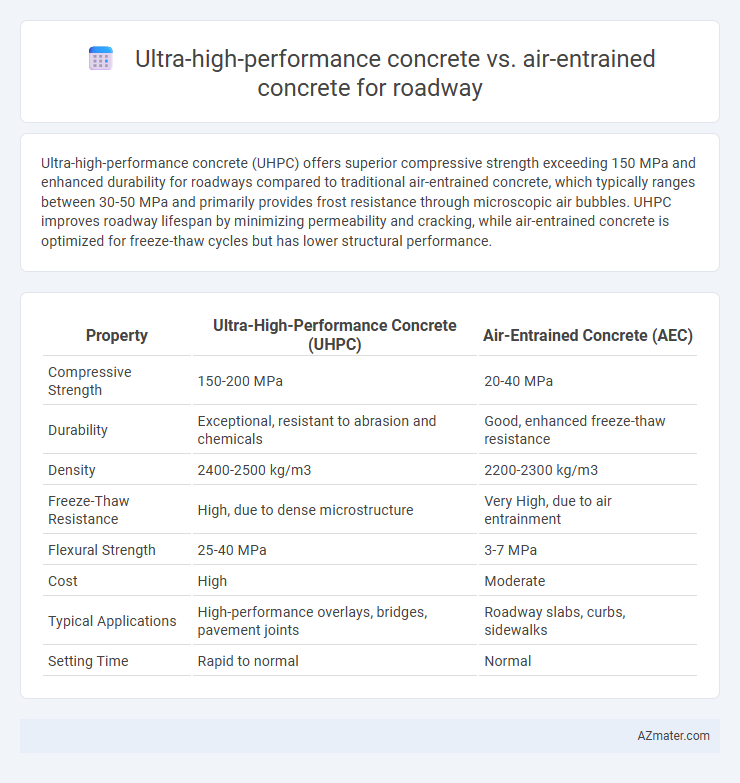

Table of Comparison

Introduction to Concrete Types in Roadway Construction

Ultra-high-performance concrete (UHPC) offers exceptional strength, durability, and resistance to environmental stressors, making it ideal for bridge decks and heavily trafficked roadways. Air-entrained concrete incorporates microscopic air bubbles that enhance freeze-thaw resistance and reduce scaling, predominantly used in regions prone to harsh winter conditions. Selecting between UHPC and air-entrained concrete depends on traffic load, climate challenges, and long-term maintenance considerations in roadway construction.

What is Ultra-High-Performance Concrete (UHPC)?

Ultra-High-Performance Concrete (UHPC) is a dense, high-strength material characterized by compressive strengths exceeding 150 MPa and exceptional durability properties, making it ideal for roadway applications requiring long service life and reduced maintenance. UHPC's optimized particle packing, low water-to-cement ratio, and fiber reinforcement create a material with superior resistance to cracking, freeze-thaw cycles, and deicing chemicals compared to Air-Entrained Concrete (AEC). This advanced composite provides improved fracture toughness and durability, enhancing pavement performance in high-traffic and harsh environmental conditions.

Defining Air-Entrained Concrete

Air-entrained concrete is a type of concrete that incorporates tiny air bubbles uniformly distributed throughout the mix to enhance durability, especially in freeze-thaw environments common in roadways. These entrained air voids improve resistance to cracking and scaling caused by water expansion during freezing cycles, significantly extending pavement lifespan. Compared to ultra-high-performance concrete, which offers superior strength and longevity through advanced material compositions, air-entrained concrete prioritizes enhanced durability by improving freeze-thaw resistance and workability for conventional roadway applications.

Material Composition: UHPC vs Air-Entrained Concrete

Ultra-high-performance concrete (UHPC) features a dense matrix of fine powders, including silica fume, quartz flour, and steel fibers, providing exceptional strength and durability for roadway applications. In contrast, air-entrained concrete incorporates microscopic air bubbles through air-entraining agents to improve freeze-thaw resistance, but typically uses coarser aggregates with lower cement content. The absence of entrapped air in UHPC results in higher compressive strength and reduced permeability compared to conventional air-entrained concrete.

Strength and Durability Comparison

Ultra-high-performance concrete (UHPC) exhibits significantly higher compressive strength, often exceeding 150 MPa, compared to air-entrained concrete, which typically ranges between 30-50 MPa, making UHPC ideal for load-bearing roadway applications. The dense microstructure of UHPC enhances durability by providing superior resistance to chloride ion penetration, freeze-thaw cycles, and abrasion, whereas air-entrained concrete relies on microscopic air bubbles to improve freeze-thaw durability but offers less resistance to chemical attack and mechanical wear. Consequently, UHPC extends the service life of roadways under heavy traffic and harsh environmental conditions more effectively than air-entrained concrete.

Resistance to Freeze-Thaw Cycles

Ultra-high-performance concrete (UHPC) exhibits superior resistance to freeze-thaw cycles due to its dense microstructure and low permeability, significantly minimizing water ingress and freeze-induced damage compared to air-entrained concrete. While air-entrained concrete relies on microscopic air bubbles to accommodate ice expansion, UHPC's enhanced durability comes from advanced fiber reinforcement and optimized cementitious materials that reduce cracking and scaling. For roadway applications in freeze-thaw prone regions, UHPC offers longer service life and lower maintenance costs due to its exceptional freeze-thaw durability.

Construction Process and Workability Differences

Ultra-high-performance concrete (UHPC) requires precise mixing, specialized curing methods like steam curing, and meticulous placement to achieve its superior strength and durability, demanding highly skilled labor and advanced equipment during construction. In contrast, air-entrained concrete incorporates microscopic air bubbles to enhance freeze-thaw resistance and workability, allowing easier placement and finishing with standard construction techniques and reduced risk of surface cracking. UHPC's low slump and high density challenge conventional workability, whereas air-entrained concrete offers improved flow and reduced segregation, making it more adaptable for typical roadway construction processes.

Cost Analysis: UHPC vs Air-Entrained Concrete

Ultra-high-performance concrete (UHPC) typically incurs higher initial costs compared to air-entrained concrete due to specialized materials and fabrication techniques. However, UHPC's enhanced durability and reduced maintenance frequency can result in lower lifecycle costs for roadway applications. Air-entrained concrete, while more economical upfront, may require more frequent repairs due to lower resistance to freeze-thaw cycles and deicing chemicals, impacting long-term cost efficiency.

Long-Term Performance and Maintenance Needs

Ultra-high-performance concrete (UHPC) offers superior long-term performance for roadways due to its exceptional durability, high compressive strength (often exceeding 150 MPa), and resistance to freeze-thaw cycles and chloride penetration, significantly reducing maintenance needs. In contrast, air-entrained concrete incorporates microscopic air bubbles to improve freeze-thaw resistance but typically has lower strength (around 30-50 MPa) and may require more frequent repairs and surface treatments over time. The enhanced longevity and reduced permeability of UHPC minimize deterioration and lifecycle costs, making it a cost-effective solution for infrastructure demanding extended service life with minimal upkeep.

Best Use Cases for Roadway Applications

Ultra-high-performance concrete (UHPC) is ideal for high-traffic roadways and bridge decks due to its exceptional durability, high compressive strength over 150 MPa, and superior resistance to abrasion and chloride-induced corrosion, extending service life and reducing maintenance costs. Air-entrained concrete, containing microscopic air bubbles, excels in cold climates where freeze-thaw cycles are frequent, providing enhanced resistance to cracking and scaling by improving freeze-thaw durability. Selecting UHPC suits infrastructure requiring load-bearing capacity and extended lifespan, while air-entrained concrete is best for pavement surfaces exposed to harsh weather conditions and deicing chemicals.
