azmater.com High-early-strength concrete achieves rapid load-bearing capacity within 24 hours, making it ideal for tunnel support requiring immediate structural stability. Shotcrete offers flexible application and strong adhesion to irregular tunnel surfaces, enhancing ground support and minimizing excavation time.
Table of Comparison
| Property | High-Early-Strength Concrete | Shotcrete |
|---|---|---|
| Setting Time | Rapid, achieves high strength within 24 hours | Fast, suitable for immediate layering and support |
| Application Method | Cast-in-place concrete, requires formwork | Sprayed directly onto tunnel surfaces using pneumatic equipment |
| Strength Development | High early compressive strength (>=20 MPa in 24 hrs) | Good early strength, varies with mix and application technique |
| Adhesion | Depends on formwork and consolidation | Excellent adhesion to irregular tunnel surfaces |
| Durability | High durability with proper curing | Good durability; prone to rebound if not applied correctly |
| Use Case | Structural elements requiring rapid load bearing | Immediate ground support, flexible in complex geometries |
| Cost | Moderate to high due to formwork and curing requirements | Cost-effective, reduced formwork and labor effort |
| Typical Compressive Strength | 40-60 MPa at 28 days | 25-50 MPa at 28 days |
Overview of Tunnel Support Methods
High-early-strength concrete and shotcrete are essential tunnel support methods differentiated by application and performance. High-early-strength concrete offers rapid load-bearing capacity ideal for precast segments and cast-in-place linings, accelerating project timelines with enhanced durability. Shotcrete, sprayed pneumatically onto irregular tunnel surfaces, provides flexible, immediate support and excellent adhesion, crucial for complex or unstable ground conditions during excavation.
Definition and Properties of High-Early-Strength Concrete
High-early-strength concrete is a type of concrete designed to achieve high compressive strength within a short curing period, typically 24 to 48 hours, making it ideal for rapid construction needs such as tunnel support. Its properties include accelerated hydration facilitated by special cementitious materials, optimized mix proportions, and the use of chemical admixtures that enhance early strength gain and durability. This concrete variant ensures faster formwork removal, reduced construction time, and early load-bearing capacity, distinguishing it from shotcrete, which is sprayed concrete typically applied pneumatically for flexible tunnel reinforcement.
Understanding Shotcrete: Types and Application
Shotcrete, a pneumatically applied concrete, is predominantly used for tunnel support due to its versatility and rapid setting properties. It comes in two main types: dry-mix, where dry ingredients are mixed at the nozzle with water, and wet-mix, where all components are premixed before spraying, each offering distinct advantages in adhesion and workability. Understanding the specific application method and shotcrete type is crucial for optimizing tunnel stability, minimizing rebound, and ensuring consistent strength gain during initial excavation support.
Material Composition Comparison
High-early-strength concrete typically contains a higher proportion of cement and supplementary cementitious materials such as silica fume or fly ash, designed to achieve rapid strength gain within the first 24 hours, making it ideal for quick tunnel support stabilization. Shotcrete, a pneumatically applied concrete mixture, often includes a blend of cement, sand, aggregates, accelerators, and fibers tailored to ensure sprayability, adhesion to irregular tunnel surfaces, and early strength development. The key difference lies in shotcrete's specialized admixtures and application method that enhance workability and bonding on uneven substrates, whereas high-early-strength concrete focuses primarily on mix proportions optimized for accelerated curing and load-bearing capacity.
Setting Time and Early Strength Development
High-early-strength concrete achieves rapid setting times typically within 2-4 hours, enabling early load application and reducing downtime in tunnel construction. Shotcrete, applied pneumatically, exhibits variable setting times influenced by mix design and environmental factors but generally hardens within 20-60 minutes, facilitating immediate support and minimizing ground deformation. Early strength development in high-early-strength concrete often reaches 20-40 MPa within 24 hours, whereas shotcrete attains adequate strength faster on-site, making it advantageous for rapid stabilization in dynamic tunnel excavation conditions.
Application Techniques: Efficiency and Equipment
High-early-strength concrete requires precise mixing and placement methods using conventional formwork and pumps for tunnel support, enabling controlled curing and consistent strength gain. Shotcrete application involves pneumatically projecting concrete onto tunnel surfaces via specialized spraying equipment, providing rapid coverage and adaptability to irregular geometries. Equipment for shotcrete includes dry-mix or wet-mix machines, accelerating installation and reducing formwork needs, while high-early-strength concrete demands more extensive handling and setup time.
Durability and Long-Term Performance
High-early-strength concrete offers rapid strength gain essential for tunnel support, ensuring early load-bearing capacity and reducing construction time. Shotcrete provides excellent adhesion and conformability to irregular tunnel surfaces, enhancing durability through uniform coverage and reduced voids. Long-term performance favors shotcrete when applied with fiber reinforcement and proper curing, as it resists cracking and deterioration under cyclic loading and harsh underground environments.
Cost Analysis: Materials, Labor, and Equipment
High-early-strength concrete typically incurs higher material costs due to specialized cement types and admixtures designed to accelerate curing, yet it reduces labor expenses by allowing faster formwork removal and earlier load application. Shotcrete, while using standard cement, often lowers overall labor and equipment costs by enabling quick, flexible application without formworks, ideal for irregular tunnel profiles but may require more skilled operators and specialized spraying equipment. Equipment investment for shotcrete includes spray rigs and compressors, whereas high-early-strength concrete relies on conventional batching and placing machinery, impacting the total cost-efficiency depending on project scale and tunnel geometry.
Safety Considerations in Tunnel Environments
High-early-strength concrete offers rapid load-bearing capacity, enhancing tunnel safety by minimizing exposure time to unstable ground conditions. Shotcrete provides excellent adhesion and conformability to irregular surfaces, reducing the risk of loose rock falls during application. Safety in tunnel environments depends on selecting materials that ensure structural stability while allowing swift installation to protect workers from potential hazards.
Case Studies: Real-World Tunnel Support Solutions
Case studies demonstrate high-early-strength concrete's effectiveness in tunnel support by enabling rapid load bearing and accelerated construction schedules, particularly in urban metro projects where minimizing downtime is critical. Shotcrete proves advantageous in irregular tunnel geometries, providing flexible application and superior adhesion, as evidenced by successful stabilization in complex rock formations during Colorado tunnel expansions. Combining both materials in layered support systems optimizes structural integrity and project efficiency, highlighted in large-scale infrastructure developments such as the Gotthard Base Tunnel.

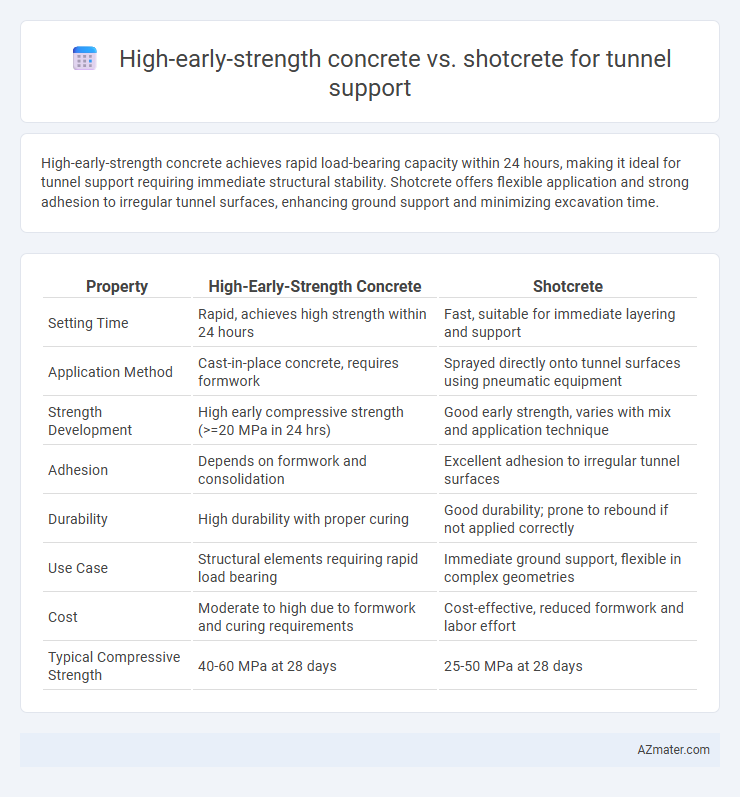

Infographic: High-early-strength concrete vs Shotcrete for Tunnel support
