azmater.com Ultra-high-performance concrete (UHPC) offers superior strength, durability, and longevity for roof decks compared to lightweight concrete, which prioritizes reduced weight and improved thermal insulation. UHPC is ideal for structures requiring high load-bearing capacity, while lightweight concrete optimizes energy efficiency and ease of installation.
Table of Comparison
| Property | Ultra-High-Performance Concrete (UHPC) | Lightweight Concrete (LWC) |
|---|---|---|
| Density | Approximately 2400-2500 kg/m3 | Typically 1400-1800 kg/m3 |
| Compressive Strength | 150-200 MPa | 10-40 MPa |
| Flexural Strength | 20-30 MPa | 3-6 MPa |
| Durability | Excellent, highly resistant to weather, chemicals | Moderate, lower resistance compared to UHPC |
| Thermal Insulation | Low insulation value | High insulation performance |
| Weight | Heavy, increases structural load | Lightweight, reduces structural load |
| Cost | High cost due to high-performance materials | Moderate to low cost |
| Application for Roof Deck | Suitable for thin, high-strength, long-span roof decks | Suitable for lightweight, non-structural or low-load roof decks |
Introduction to Roof Deck Concrete Options
Ultra-high-performance concrete (UHPC) offers exceptional strength and durability for roof decks, enabling thinner slabs and extended spans with enhanced load-bearing capacity. Lightweight concrete provides reduced dead load, improving structural efficiency and thermal insulation, making it ideal for energy-conscious designs. Selecting between UHPC and lightweight concrete depends on specific project requirements such as load demands, thermal performance, and cost efficiency.
What is Ultra-High-Performance Concrete (UHPC)?
Ultra-High-Performance Concrete (UHPC) is an advanced composite material characterized by its exceptional strength, durability, and refined microstructure, typically exceeding compressive strengths of 150 MPa. It integrates fine powders, silica fume, and steel fibers in a low water-to-cement ratio matrix, resulting in superior mechanical properties and enhanced resistance to environmental degradation, making it ideal for roof decks requiring high load-bearing capacity and longevity. Compared to lightweight concrete, UHPC offers significantly improved structural performance and reduced maintenance costs, despite higher initial material expenses.
Key Features of Lightweight Concrete
Lightweight concrete for roof decks is characterized by its reduced density, typically ranging from 90 to 115 pounds per cubic foot, which significantly decreases the structural load on supporting elements. It offers excellent thermal insulation and improved fire resistance due to its porous nature and incorporation of lightweight aggregates such as expanded clay or shale. While ultra-high-performance concrete boasts superior strength and durability, lightweight concrete's primary advantages lie in ease of handling, cost-effectiveness, and enhanced thermal efficiency ideal for roof deck applications.
Strength and Durability Comparison
Ultra-high-performance concrete (UHPC) offers exceptional compressive strengths exceeding 150 MPa, significantly outperforming lightweight concrete, which typically ranges between 17 to 35 MPa, making UHPC ideal for roof decks requiring superior load-bearing capacity. UHPC features enhanced durability with dense microstructures that resist chloride penetration, freeze-thaw cycles, and abrasion, whereas lightweight concrete tends to have higher porosity, leading to increased susceptibility to moisture ingress and reduced long-term durability. The superior mechanical properties and longevity of UHPC ensure extended service life and reduced maintenance for roof deck applications compared to lightweight concrete.
Weight and Structural Implications
Ultra-high-performance concrete (UHPC) offers superior strength and durability compared to lightweight concrete, enabling thinner, more resilient roof decks while reducing overall structural load. Lightweight concrete significantly decreases dead load due to its low density, which reduces support beam size and foundation requirements but may require increased thickness to achieve comparable strength. Balancing weight and structural integrity, UHPC is ideal for high-performance applications with stringent durability needs, whereas lightweight concrete suits projects prioritizing weight reduction and cost efficiency.
Thermal Insulation and Energy Efficiency
Ultra-high-performance concrete (UHPC) offers exceptional structural strength but has higher thermal conductivity than lightweight concrete, resulting in reduced thermal insulation for roof decks. Lightweight concrete provides superior thermal insulation due to its porous matrix and lower density, enhancing energy efficiency by minimizing heat transfer. Utilizing lightweight concrete for roof decks can significantly lower cooling and heating loads, improving overall building energy performance.
Cost Factors and Economic Considerations
Ultra-high-performance concrete (UHPC) for roof decks offers superior strength and durability, leading to longer service life and reduced maintenance costs, but its initial material and labor expenses are significantly higher than lightweight concrete. Lightweight concrete provides cost savings through reduced structural load, allowing for smaller supporting elements and lower shipping expenses, making it economically advantageous for large-scale projects with budget constraints. Evaluating long-term performance, UHPC's premium price can be offset by its enhanced resilience against environmental stressors, whereas lightweight concrete prioritizes upfront affordability and ease of handling.
Installation and Construction Methods
Ultra-high-performance concrete (UHPC) offers superior strength and durability for roof decks, allowing for thinner slabs and reduced structural support, which simplifies formwork and accelerates installation. Lightweight concrete, with its reduced density, eases handling and transportation on site, but often requires additional curing time and specialized mixing techniques to prevent shrinkage and ensure proper bonding. Both materials demand precise quality control during mixing and placing, but UHPC's advanced admixtures and fiber reinforcement enable faster setting times and minimize labor-intensive finishing compared to traditional lightweight concrete methods.
Maintenance and Longevity Differences
Ultra-high-performance concrete (UHPC) offers superior durability and reduced maintenance for roof decks due to its high compressive strength and resistance to environmental degradation, outperforming lightweight concrete in longevity. Lightweight concrete, while easier to handle and providing better thermal insulation, typically requires more frequent maintenance due to increased susceptibility to cracking and moisture penetration. The enhanced density and fiber reinforcement in UHPC minimize porosity and structural deterioration, ensuring a longer service life with lower maintenance costs compared to lightweight alternatives.
Best Applications: Choosing the Right Concrete for Roof Decks
Ultra-high-performance concrete (UHPC) excels in roof deck applications requiring exceptional strength, durability, and resistance to dynamic loads, making it ideal for structures exposed to heavy traffic or extreme weather conditions. Lightweight concrete, characterized by its reduced density and thermal insulation properties, is best suited for roof decks where load reduction and energy efficiency are priorities, such as residential or low-rise commercial buildings. Selecting between UHPC and lightweight concrete depends on structural demands, environmental conditions, and specific project goals related to strength, weight, and thermal performance.

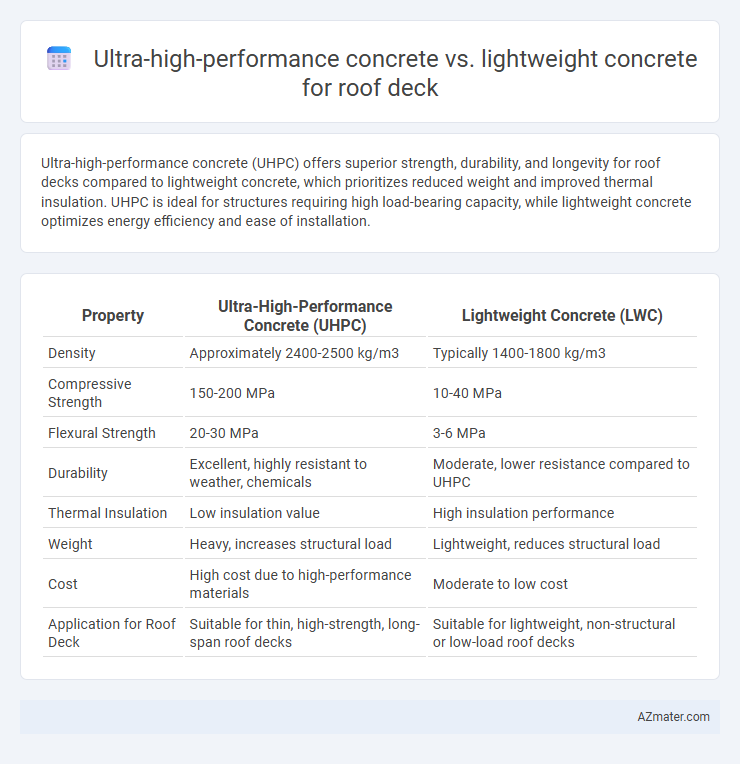

Infographic: Ultra-high-performance concrete vs Lightweight concrete for Roof deck
