azmater.com Textile composites offer enhanced flexibility and impact resistance for pipe applications compared to fiber reinforced plastics, which provide superior stiffness and chemical resistance. Selecting between these materials depends on the specific mechanical requirements and environmental exposure of the pipe system.
Table of Comparison
| Property | Textile Composite | Fiber Reinforced Plastic (FRP) |
|---|---|---|
| Material Composition | Woven or non-woven textile fibers (e.g., glass, carbon) embedded in matrix | Continuous fibers (glass, carbon, aramid) embedded in thermoset or thermoplastic resin |
| Mechanical Strength | Moderate tensile strength; flexible | High tensile and compressive strength; rigid |
| Weight | Lightweight; lower density | Lightweight but typically heavier than textile composites |
| Corrosion Resistance | Excellent chemical resistance; suitable for aggressive environments | Very high chemical and corrosion resistance |
| Manufacturing | Flexible layup process; complex shapes achievable | Usually molded; limited flexibility in shapes |
| Cost | Moderate cost; depends on fiber and matrix | Higher cost due to material and processing |
| Application in Pipes | Ideal for flexible, lightweight pipe linings and reinforcements | Preferred for high strength, durable pipe sections |
Introduction to Pipe Materials: Textile Composite vs Fiber Reinforced Plastic
Textile composites and fiber reinforced plastics (FRPs) are advanced materials widely used for pipe manufacturing due to their high strength-to-weight ratios and corrosion resistance. Textile composites utilize woven or stitched fiber architectures that enhance flexibility and damage tolerance, while FRPs typically consist of continuous fibers embedded in a polymer matrix, providing superior stiffness and structural integrity. Both materials offer tailored mechanical properties, but selection depends on specific pipeline requirements such as pressure resistance, environmental conditions, and installation complexity.
Material Composition: Textile Composites Explained
Textile composites for pipes consist of woven or knitted fiber architectures embedded in a polymer matrix, offering enhanced flexibility and impact resistance compared to traditional fiber reinforced plastics (FRP). Unlike FRP, which primarily uses unidirectional fibers such as glass or carbon within a thermoset or thermoplastic resin, textile composites leverage multi-directional fiber orientations for improved mechanical performance and damage tolerance. This distinct material composition enables textile composites to provide superior fatigue resistance and tailorability in pipe manufacturing, optimizing strength-to-weight ratios for demanding industrial applications.
Understanding Fiber Reinforced Plastics (FRP) in Piping
Fiber Reinforced Plastics (FRP) in piping combine high-strength fibers such as glass, carbon, or aramid with a polymer matrix, offering superior corrosion resistance and lightweight properties compared to traditional materials. Textile composites, a subset of FRPs, utilize woven or braided fiber reinforcements that enhance mechanical flexibility and impact resistance. Understanding FRP's tailored fiber orientation and resin formulation is crucial for optimizing pipe performance in chemical, water treatment, and offshore applications.
Mechanical Properties Comparison
Textile composites exhibit enhanced flexibility and impact resistance compared to fiber reinforced plastics (FRPs) in pipe applications, owing to their woven fiber architecture that distributes stress more evenly. Fiber reinforced plastics typically offer higher tensile strength and stiffness due to unidirectional fiber alignment but may be more prone to brittle failure under dynamic loading. Selecting between textile composites and FRPs depends on the required balance between mechanical toughness and rigidity for specific pipeline performance criteria.
Corrosion and Chemical Resistance
Textile composites offer superior chemical resistance and corrosion protection for pipes due to their inert polymer matrices, making them ideal for handling aggressive chemicals and corrosive environments. Fiber reinforced plastics (FRPs) provide excellent mechanical strength but may require additional coatings or liners to enhance chemical resistance in highly corrosive applications. Selecting textile composites over traditional FRPs ensures prolonged pipe lifespan and reduced maintenance in industries such as chemical processing and wastewater treatment.
Installation and Fabrication Processes
Textile composites offer enhanced flexibility and easier handling during installation compared to fiber-reinforced plastics (FRP), reducing labor time and costs for pipe systems. The fabrication process of textile composites involves weaving or knitting fibers into a preform, enabling complex shapes and rapid curing cycles, whereas FRP requires layering and resin infusion, which can be more time-consuming and sensitive to environmental conditions. Textile composites also allow for on-site customization and repairs, improving adaptability and minimizing downtime during pipe installation projects.
Durability and Lifespan Under Different Conditions
Textile composites and fiber reinforced plastics (FRPs) both offer enhanced durability for pipe applications, with FRPs typically exhibiting superior resistance to chemical corrosion and high temperatures, extending their lifespan in harsh industrial environments. Textile composites provide excellent flexibility and impact resistance, making them suitable for dynamic conditions and moderate chemical exposure, though their longevity may decrease under prolonged UV radiation and extreme thermal cycling. The choice between these materials depends on specific operational conditions, with FRPs favored for aggressive chemical and thermal environments, while textile composites excel in applications requiring mechanical resilience and adaptability.
Cost-Effectiveness and Economic Considerations
Textile composites generally offer a more cost-effective solution for pipe manufacturing due to lower raw material costs and simplified fabrication processes compared to fiber-reinforced plastics (FRP). While FRP provides superior mechanical strength and corrosion resistance, its higher material and manufacturing expenses often lead to increased overall project costs. Evaluating lifecycle expenses, including maintenance and durability, is crucial to determine economic viability between textile composites and FRP in piping applications.
Applications in Industry: Where Each Excels
Textile composites excel in applications requiring high flexibility and impact resistance, such as pipelines in chemical processing and offshore oil and gas industries, where durability against corrosion and dynamic loads is critical. Fiber reinforced plastics (FRP) are preferred in industries demanding superior strength-to-weight ratios and thermal resistance, like aerospace and automotive piping systems subjected to high pressure and temperature variations. Both materials optimize pipeline performance, with textile composites offering enhanced adaptability in harsh environments and FRP delivering structural integrity under extreme mechanical stress.
Future Trends and Innovations in Composite Pipe Materials
Advancements in textile composite technology are driving enhanced flexibility and impact resistance in pipe applications, positioning them as a competitive alternative to traditional fiber reinforced plastics (FRP). Innovations such as nanomaterial integration and smart sensing capabilities are accelerating the development of next-generation composite pipes with superior durability, corrosion resistance, and real-time structural health monitoring. Future trends emphasize eco-friendly resin systems and improved manufacturing techniques, promoting sustainability and cost-efficiency in composite pipe production.

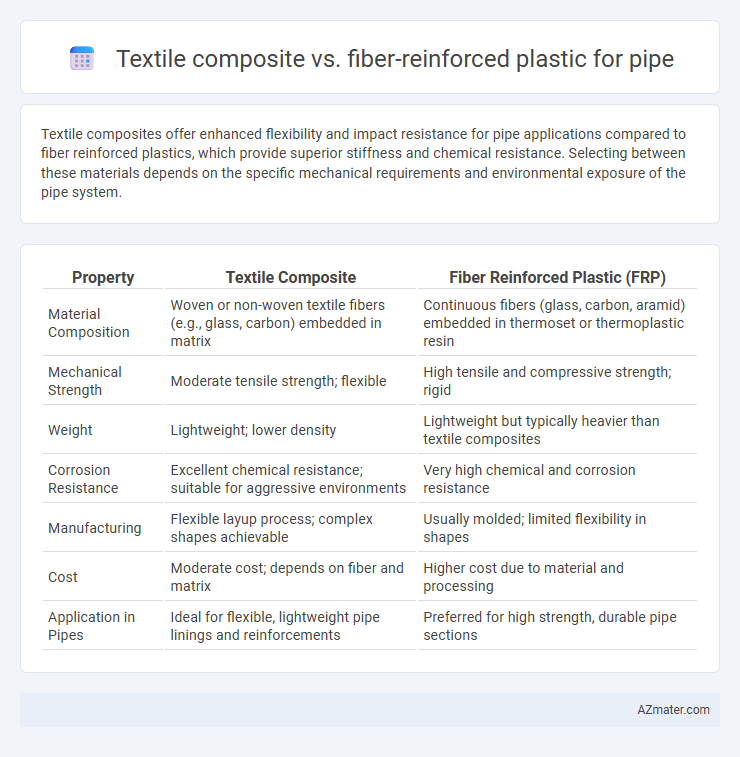

Infographic: Textile composite vs Fiber reinforced plastic for Pipe
