Hybrid composite vs. ceramic matrix composite for turbine blades - What is The Difference?

Hybrid composites combine multiple reinforcement fibers, enhancing toughness and thermal stability, while ceramic matrix composites (CMCs) offer superior high-temperature resistance and reduced weight for turbine blades. CMCs excel in operating environments above 1200degC, outperforming hybrid composites in creep resistance and oxidation durability.

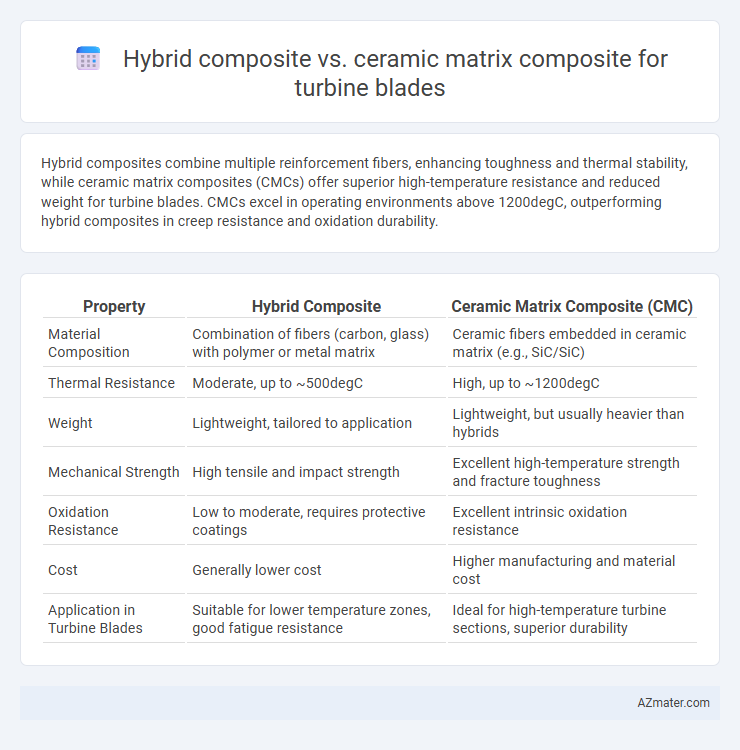

Table of Comparison

Introduction: Importance of Advanced Materials in Turbine Blades

Advanced materials such as hybrid composites and ceramic matrix composites (CMCs) play a critical role in enhancing turbine blade performance due to their superior strength-to-weight ratios and high-temperature resistance. Hybrid composites combine multiple fiber and matrix types to optimize mechanical properties and thermal stability, while CMCs offer exceptional oxidation resistance and reduced density compared to traditional metal alloys. The adoption of these materials directly contributes to increased engine efficiency, durability, and overall power output in demanding aerospace and power generation environments.

Overview of Hybrid Composites

Hybrid composites for turbine blades combine multiple reinforcement materials to enhance mechanical properties such as strength, toughness, and thermal resistance, surpassing the limitations of single-material composites. These materials integrate fibers like carbon and ceramics within a polymer or ceramic matrix, optimizing load distribution and damage tolerance under high-temperature turbine conditions. Hybrid composites offer improved fracture toughness and thermal shock resistance compared to ceramic matrix composites, making them suitable for complex turbine blade designs requiring reliability and lightweight performance.

Overview of Ceramic Matrix Composites (CMCs)

Ceramic Matrix Composites (CMCs) offer superior thermal stability and resistance to oxidation compared to traditional metal alloys, making them ideal for turbine blade applications in high-temperature environments. These composites consist of ceramic fibers embedded in a ceramic matrix, providing enhanced toughness and fracture resistance compared to monolithic ceramics. CMCs enable higher operating temperatures and improved fuel efficiency in gas turbines by reducing cooling requirements and increasing component durability.

Mechanical Properties Comparison

Hybrid composites for turbine blades exhibit improved toughness and damage tolerance compared to ceramic matrix composites (CMCs), which offer superior high-temperature strength and oxidation resistance. Mechanical properties such as fracture toughness in hybrid composites are enhanced by combining fibers with different moduli, whereas CMCs maintain structural integrity at elevated temperatures due to their ceramic reinforcement. The trade-off between the enhanced fracture resistance of hybrid composites and the exceptional thermal stability of CMCs dictates their selection based on specific turbine operating conditions.

Thermal Performance and Resistance

Hybrid composites for turbine blades combine polymer or metal matrices with ceramic reinforcements, offering moderate thermal performance and enhanced resistance to thermal shock compared to traditional materials. Ceramic matrix composites (CMCs) demonstrate superior thermal stability at temperatures exceeding 1,200degC and exhibit excellent resistance to oxidation and creep under high thermal loads. The enhanced thermal conductivity and lower density of CMCs contribute to improved turbine efficiency and durability in extreme operating environments.

Durability and Lifespan in Turbine Environments

Hybrid composites for turbine blades offer enhanced durability through a tailored balance of toughness and thermal resistance, often combining fiber types to mitigate crack propagation in high-stress environments. Ceramic matrix composites (CMCs) excel in high-temperature stability and oxidation resistance, significantly extending lifespan under extreme thermal cycles encountered in turbine engines. The durability of hybrid composites generally surpasses traditional alloys with improved impact tolerance, while CMCs provide superior lifespan by maintaining structural integrity beyond 1,300degC, crucial for advanced turbine operation.

Manufacturing Processes and Scalability

Hybrid composites for turbine blades utilize combined fiber systems like carbon and glass fibers embedded in polymer or metal matrices, enabling relatively simpler manufacturing processes such as resin transfer molding and automated fiber placement with good scalability for mass production. Ceramic matrix composites (CMCs) involve complex processes including chemical vapor infiltration and melt infiltration to embed ceramic fibers within ceramic matrices, resulting in higher costs and lower production rates, which limits scalability in large-volume manufacturing. While hybrid composites benefit from established manufacturing infrastructure supporting scalability, CMCs require specialized equipment and extended cycle times, challenging their widespread industrial adoption despite superior high-temperature performance.

Cost Analysis: Hybrid vs. CMCs

Hybrid composites offer a cost advantage over ceramic matrix composites (CMCs) for turbine blades due to lower raw material and manufacturing expenses. CMCs require high-temperature processing and advanced fabrication techniques, increasing production costs significantly. Despite higher initial costs, CMCs provide superior thermal stability and durability, which may reduce lifecycle expenses compared to hybrid composites.

Application Suitability in Turbine Blades

Hybrid composites offer a balance of strength, toughness, and thermal resistance suitable for turbine blades operating in moderate temperature ranges, providing improved damage tolerance compared to ceramics. Ceramic matrix composites (CMCs) excel in extreme high-temperature environments above 1200degC, delivering superior oxidation resistance and maintaining structural integrity under thermal stress. The choice between hybrid composites and CMCs depends on the specific turbine blade application, with CMCs favored for high-performance aerospace engines while hybrid composites suit gas turbines requiring a compromise between cost and thermal durability.

Future Trends and Innovations in Composite Blade Technology

Hybrid composites for turbine blades integrate carbon and glass fibers to deliver enhanced toughness and damage tolerance, while ceramic matrix composites (CMCs) provide superior thermal resistance and lower density for high-temperature sections. Future trends emphasize the development of multifunctional hybrid composites combining ceramic and polymer matrices to optimize performance under extreme thermal and mechanical loads. Innovations focus on additive manufacturing techniques and nanoscale reinforcement to improve fiber-matrix bonding, durability, and blade life in next-generation jet engines.
